PASS QUEST-SPRILL

PASS QUEST 2X 110BCD (5-bolt HOLLOW) AXS Sprocket Round Road Bike Foldable Bicycle 12 speed Gravel bik

PASS QUEST 2X 110BCD (5-bolt HOLLOW) AXS Sprocket Round Road Bike Foldable Bicycle 12 speed Gravel bik

$6.00 USD
$6.00 USD
Sale Sold out
size

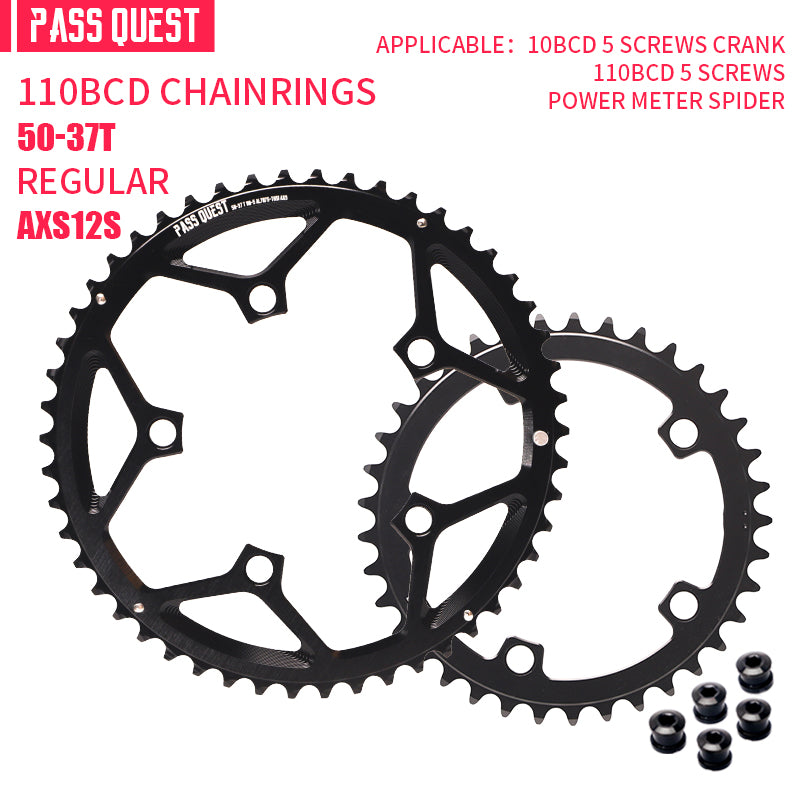

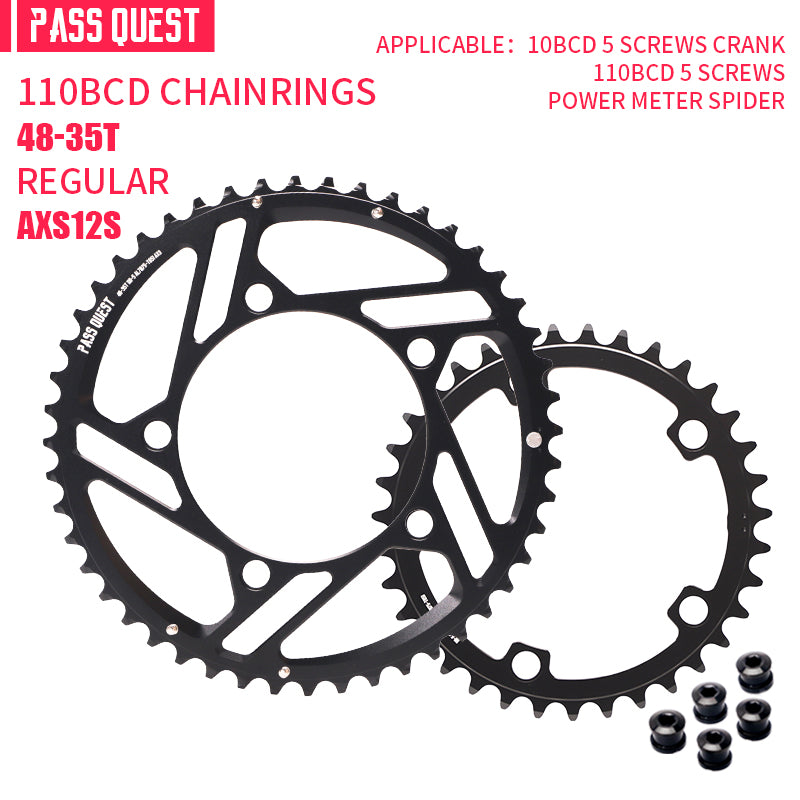

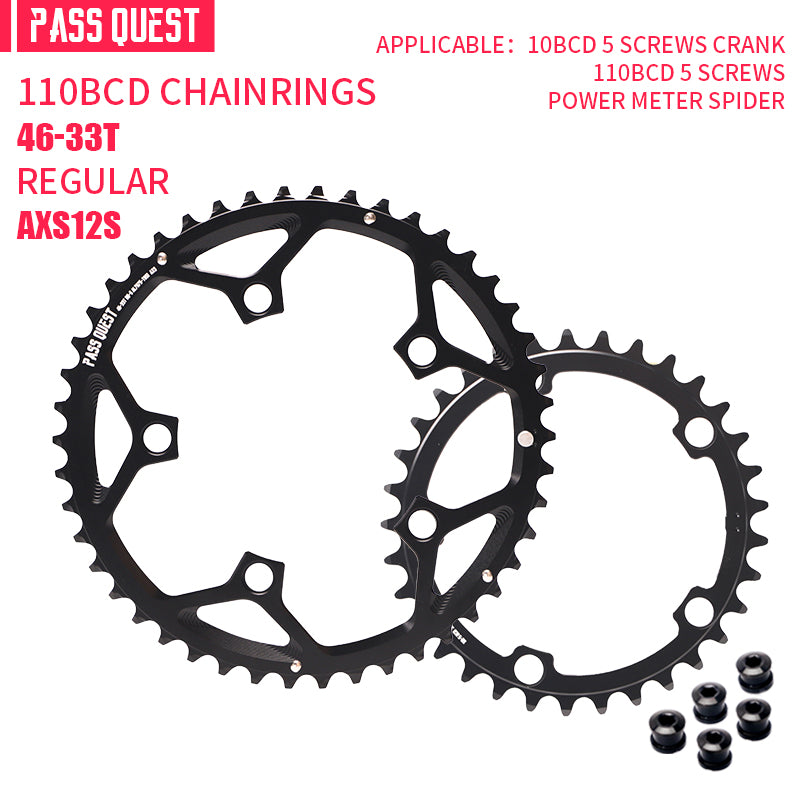

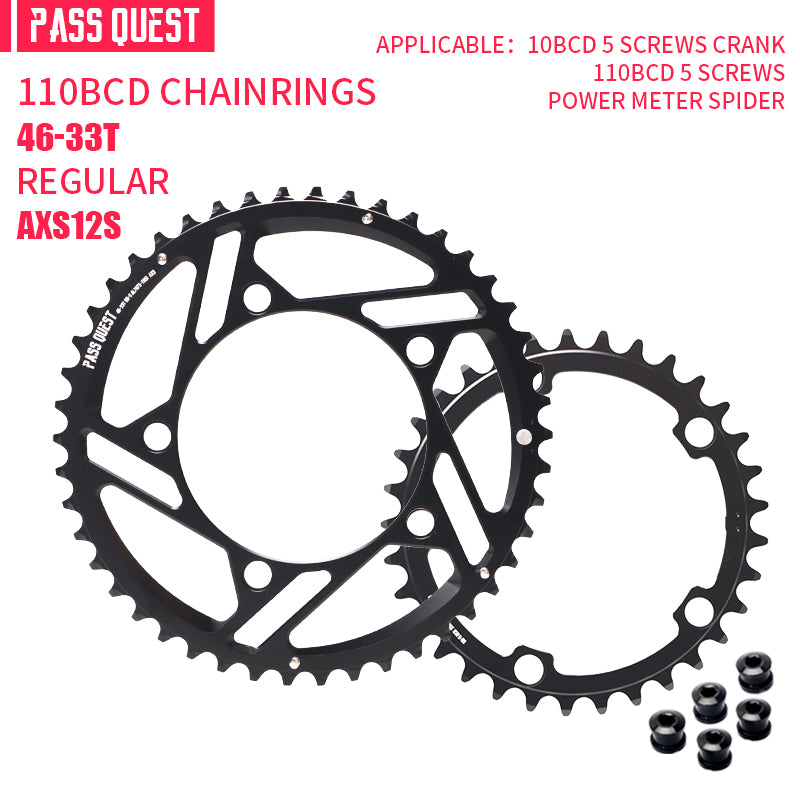

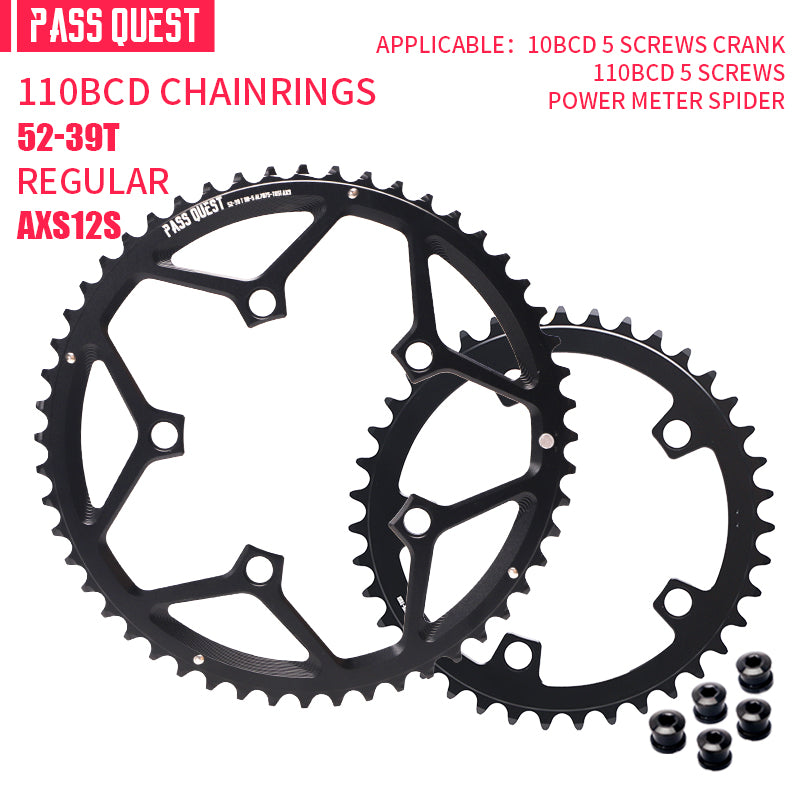

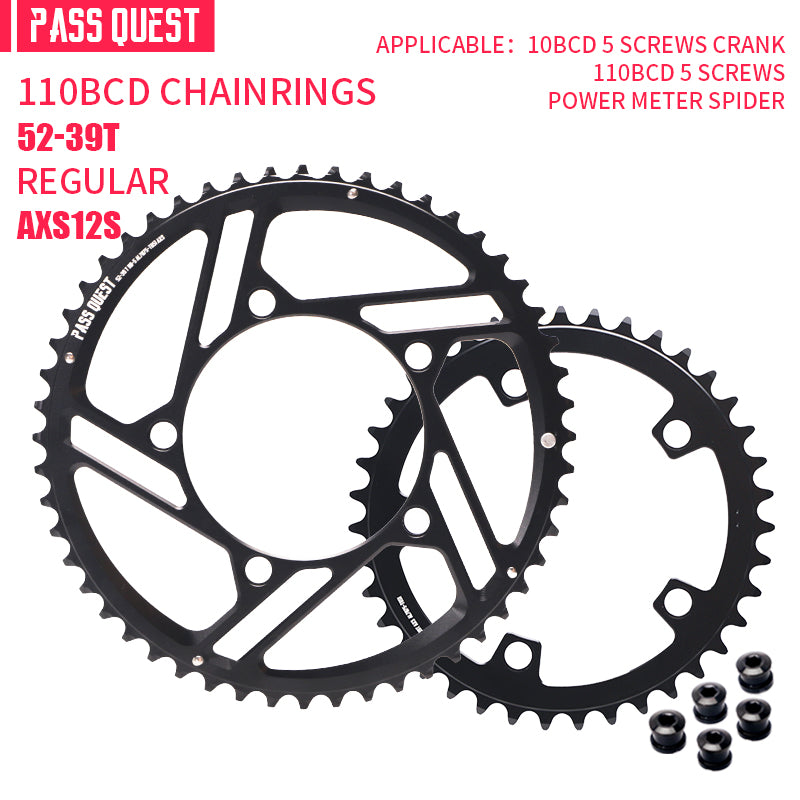

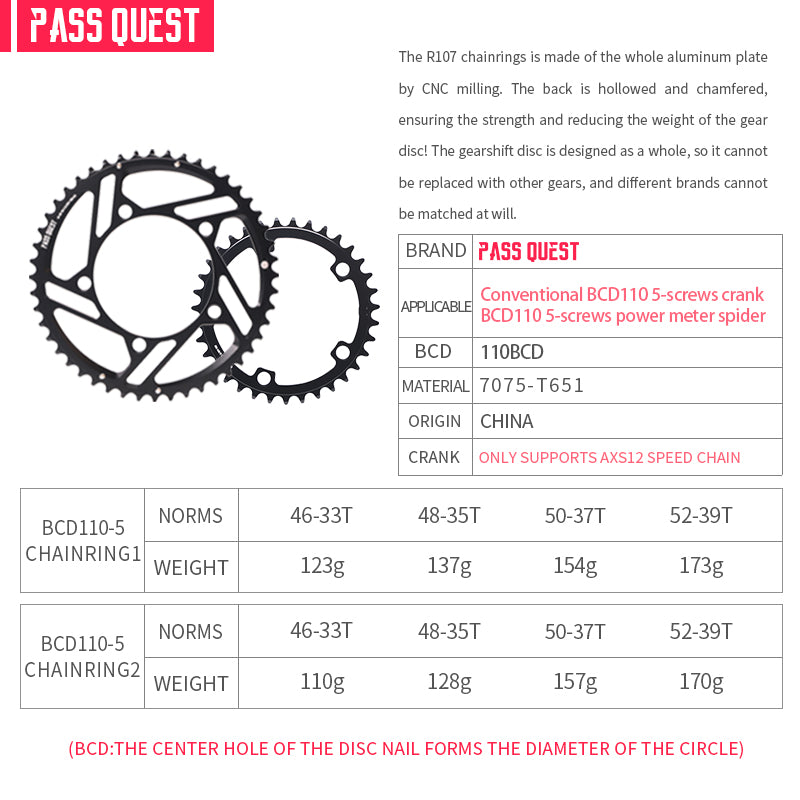

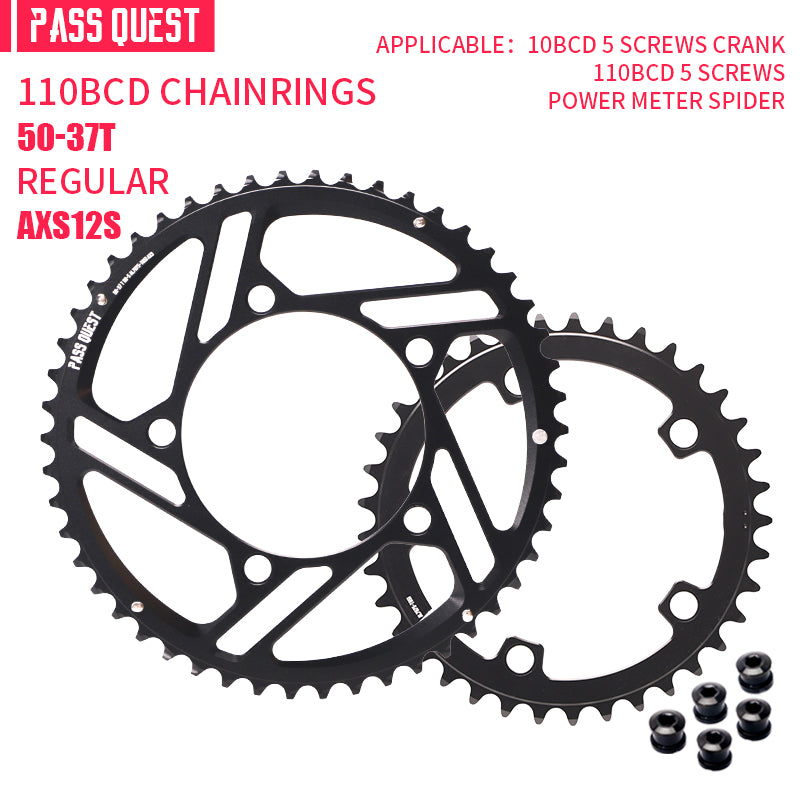

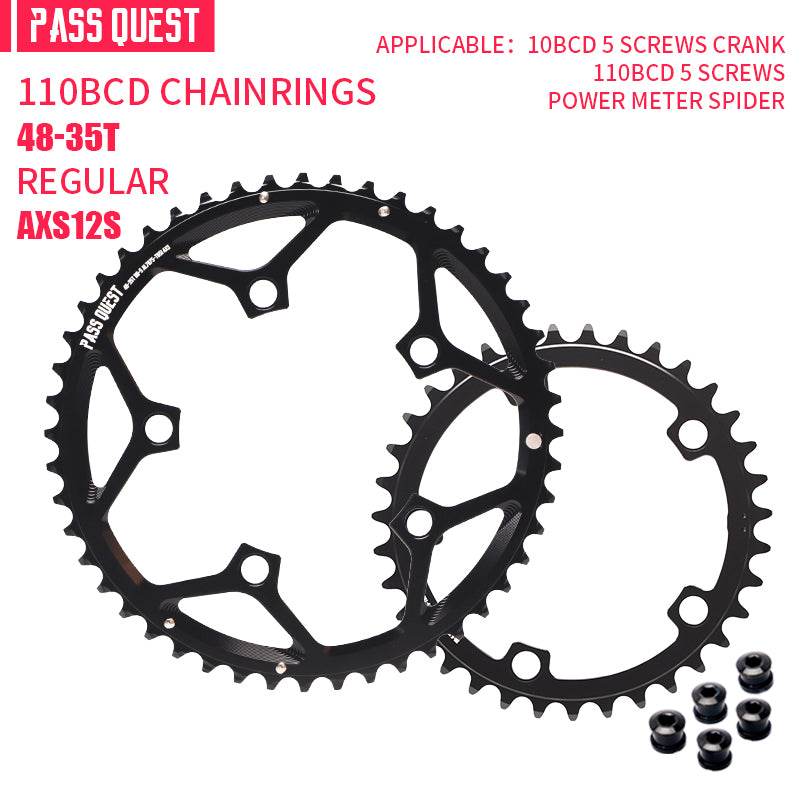

Model  46-33T or 48-35T or 50-37T or 52-39T
Colour Black
Made from 7075-T651
Surface coating Anodizing
Made with CNC milling
Origin CHINA
Chainring shape ROUND
Compatible cranksets

For Shimano, for Sram, for FSA and other 110BCD 5 Bolts Crankset of road bike and gravel bike ，for 5 arms power point.
Weight, grams 123g (46-33T), 137g (48-35T), 154g (50-37T), 173g (52-39T)

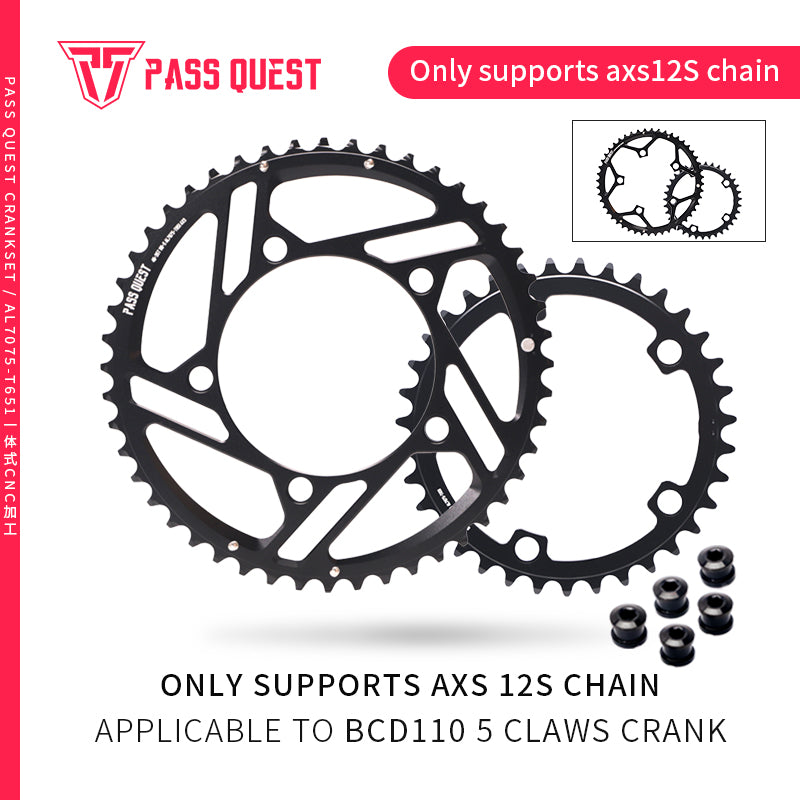

Chain compatibility Only supports AXS12 speed chain

Bicycle shop or dealer contact customer service

wenyahu39@gmail.com

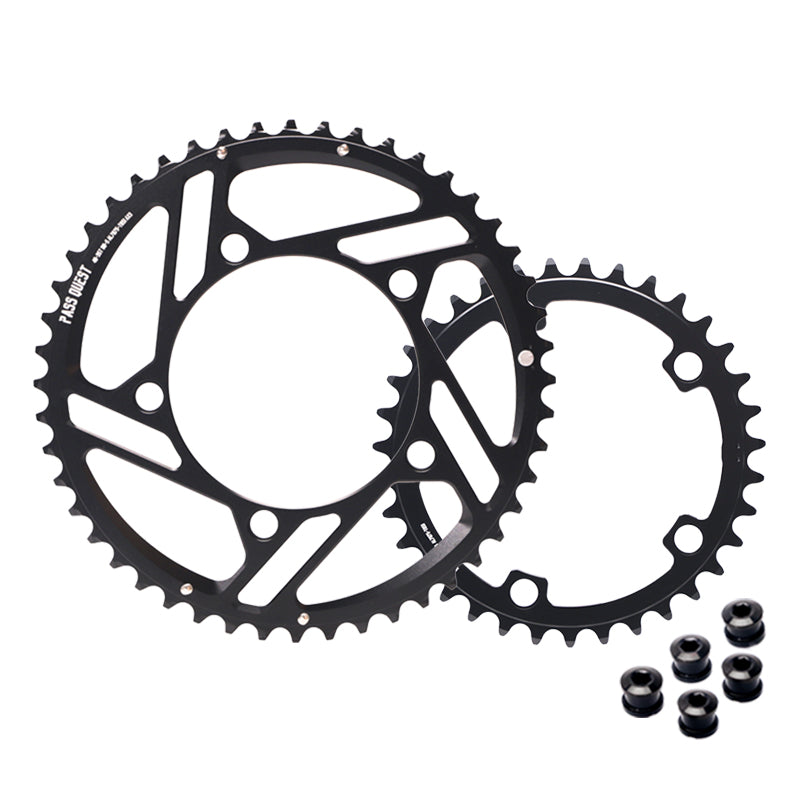

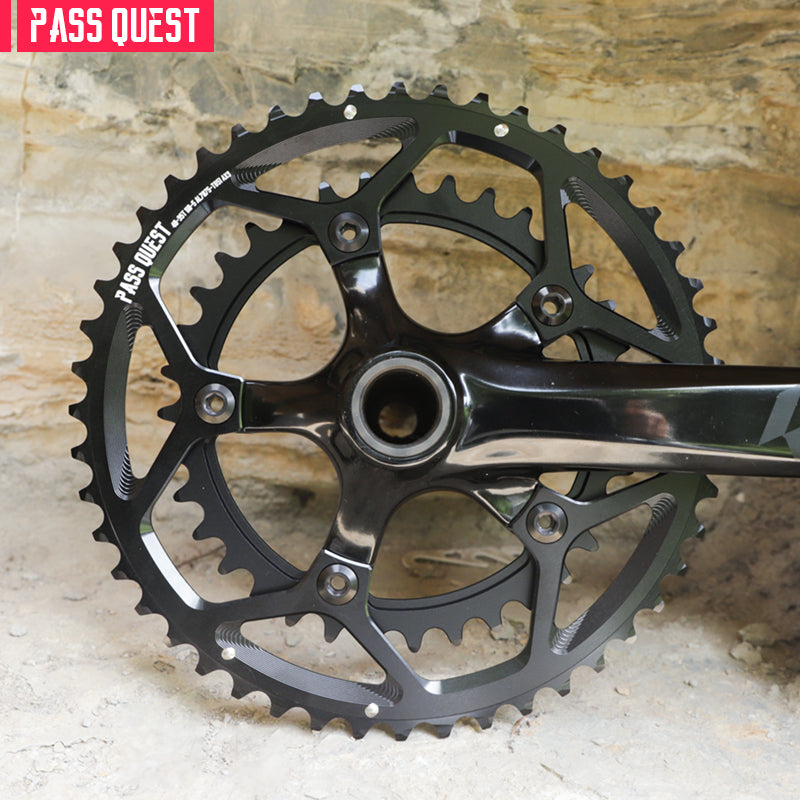

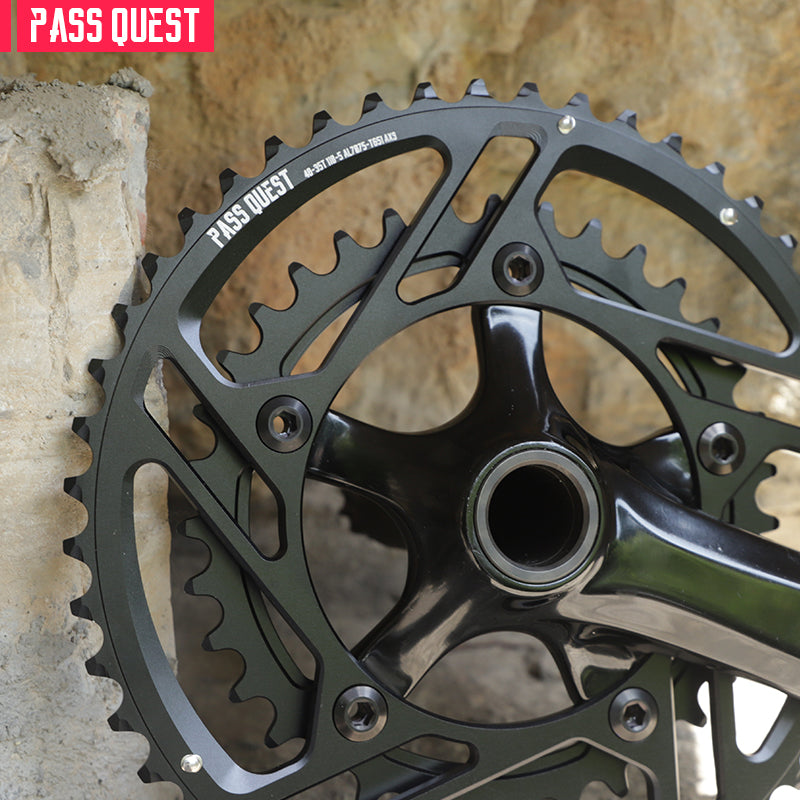

PASS QUEST 2X CHAINRING

  • Important Notes:
  • The 110BCD 5 Bolts variable speed double disc is CNC milled from the whole aluminum plate, and the back is hollowed out and milled and chamfered to ensure the strength and reduce the weight of the chainring! The speed change disc is designed as a whole, and other gears cannot be replaced, and different brands cannot be matched at will.
  • It takes time to polish the aluminum plate with a thickness of 5mm. The texture and triangular structure ensure the hardness of the chainring while bringing a lighter experience
  • For Sram Red Rival S350 S900 Rotor Force 110 BCD 5 Bolts
  • The double chainrings are designed well. Do not mix different brands and different gear numbers. Smooth speed change cannot be guaranteed.
  • All PASS QUEST double chainring must be used as pass quest original pair set. Mix with other brand chainring will not work.

  • We provide standard screws free of charge.
    Locking torque: 6-8 N·M

    Excessive torque may damage the screw.

  • Installation Instructions:
    1. Position the large chainring pin directly beneath the crank arm.
    2. Align the positioning point on the small chainring directly beneath the crank arm.
    3. Align the countersunk holes with the chainring bolts to complete the installation.

View full details

Which size of an oval should I choose

We always recommend swapping like for like, so if you have a 32T round ring at the moment, you should consider getting a 32T oval. The same applies to our shiftable road ovals, we recommend that you purchase ovals with the same teeth count as your round rings.

How to calculate gear inches for an oval chainring

Exactly same way as for round chainring. You just need to use the nominal size in the calculation of an oval ring you have. That is, if you buy 32T oval you use for calculation 32T size. Reason for this is 32T oval chainring has same circumference as the 32T round. We optimize the shape but not circumference - it stays constant. Distance between each teeth always has to remain at 12.7mm to engage the chain properly. You can use any online calculator to get gear inches for an oval chainring.
