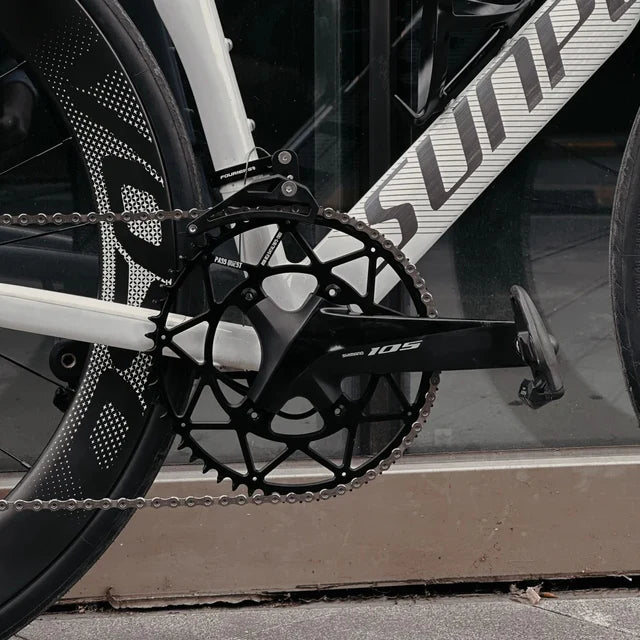

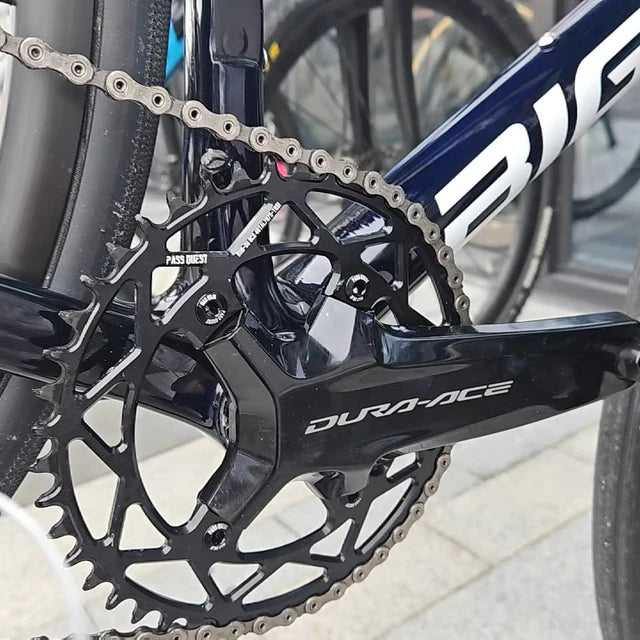

SHIMANO 110BCD R9200 R8100 R7100 (4-bolt Hollow) Round Narrow Wide Chainring

Model

36T or 38T or 40T or 42T or  44T or 46T or 48T or 50T or 52T or 54T or 56T or 58T

Colour

Black

Made from

7075-T651 Aluminum Alloy

Surface coating

Anodizing

Made with

CNC milling

Chainring shape

Round

Compatible cranksets

Shimano FC-R8100 - ULTEGR
Shimano FC-R7100 - SHIMANO 105 CRANK
Shimano FC-R9200 - Dura-Ace

Weight, grams

51g (36T),63g (38T),76g (40T),78g (42T),187g (44T),196g (46T), 110g (48T), 121g (50T), 128g (52T), 142g (54T), 148g (56T), 158g (58T)

Chain compatibility

Support 9/10/11/12 speed ordinary chain

 Support paying an extra $10 to customize the same silver color

 Bicycle shop or dealer contact customer service

wenyahu39@gmail.com

PASS QUEST NARROW WIDE CHAINRING

• Important Notes:
•
• FC5800/FC6800(Four claws without arc)
  FC-R7000/FC-R8000 FC-R9100(There's an arc in the upper right corner)
  FC-R7100/FC-R8100 FC-R9200(There are a total of two curved sections: one in the upper-right corner and one in the lower-right corner)

• The R92-81-7100 chainrings are CNC milled from an entirealuminum plate, and the back is hollowed out and chamferedto ensure strength while also reducing the weight of thechainrings. The chainring adopts an elongated tooth shapewhich makes it difficult for the chain to escape from the teetheven ifit jumps violently, thus ensuring that the chain does notfall off
• Our tooth height achieved 8.5 mm, Increased tooth height improves chain retention
• Manufactured using 7075-T651 highly durable aluminum alloy
• The chamfering design can reduce the weight of the gear plate and make the gear plate more beautiful

• (BCD:THE CENTER HOLE OF THE DISC NAILFORMS THE DIAMETER OF THE CIRCLE)
• Narrow wide tooth, it design for 1x speed only, can not use as 2x speed, not support front shifting derailleur.
• When using a 12-speed chain, please replace the original SHIMANO fast sprocket with a KMC 12-speed fast sprocket.
• We provide standard screws free of charge.
  Locking torque: 6-8 N·M
  Excessive torque may damage the screw
