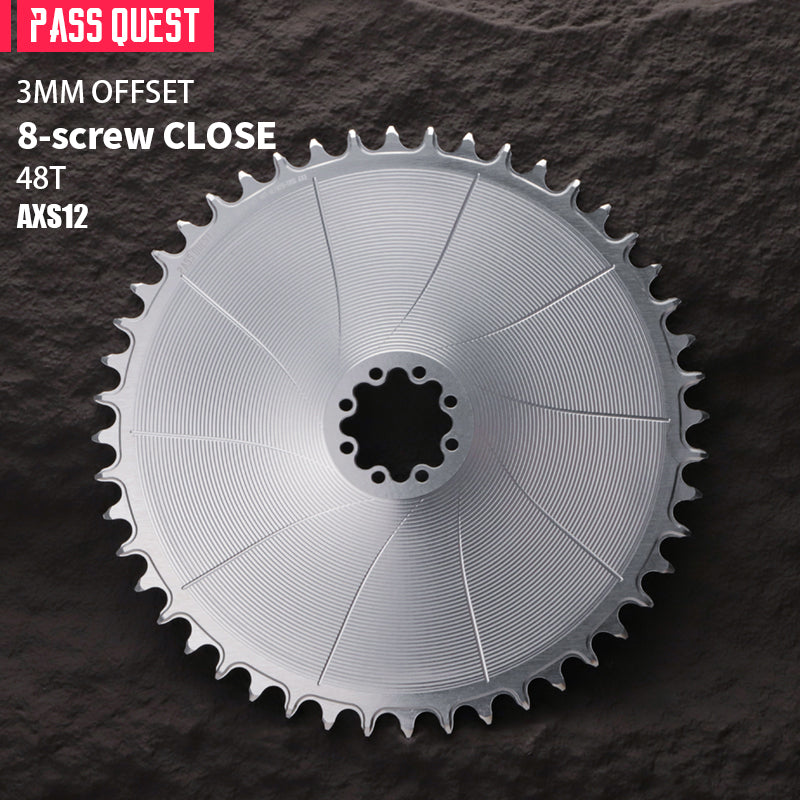

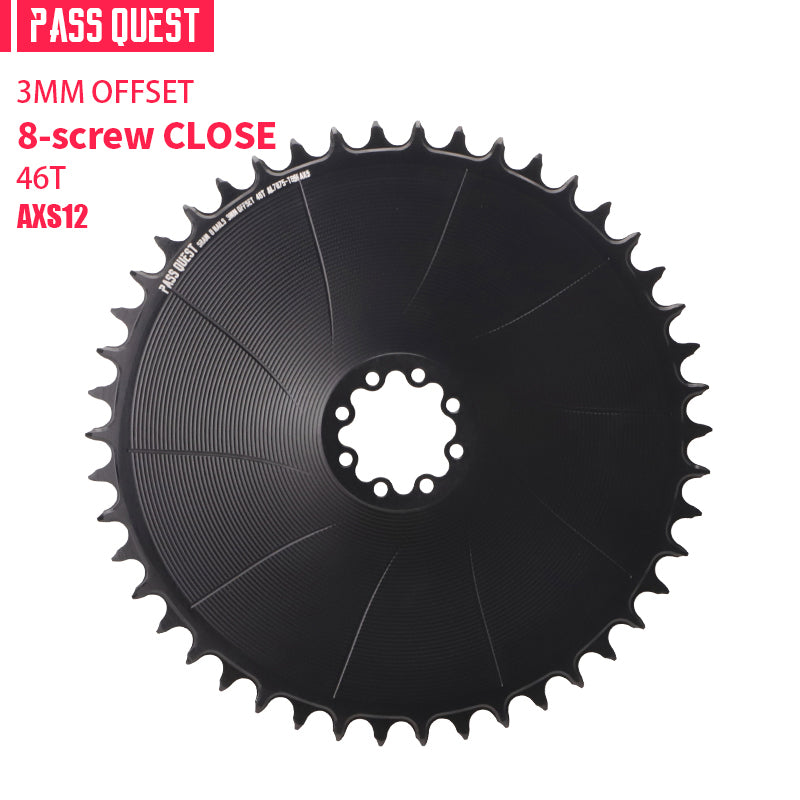

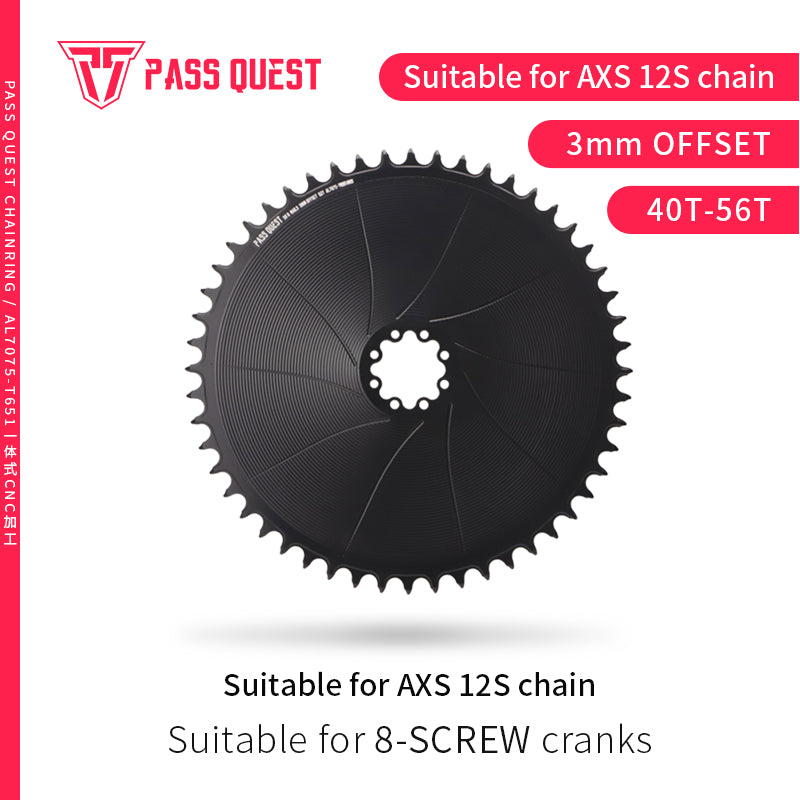

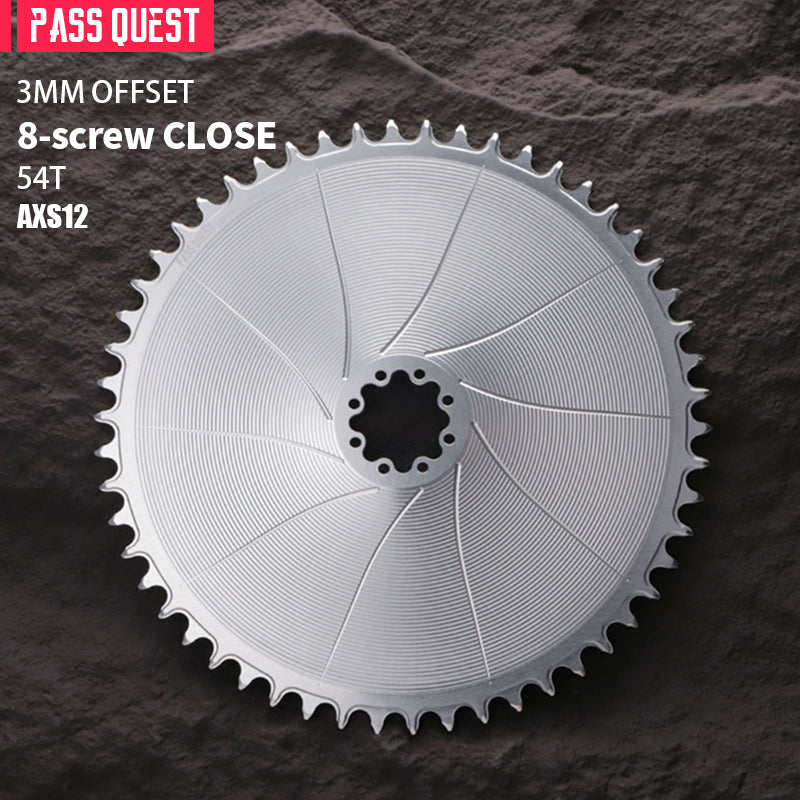

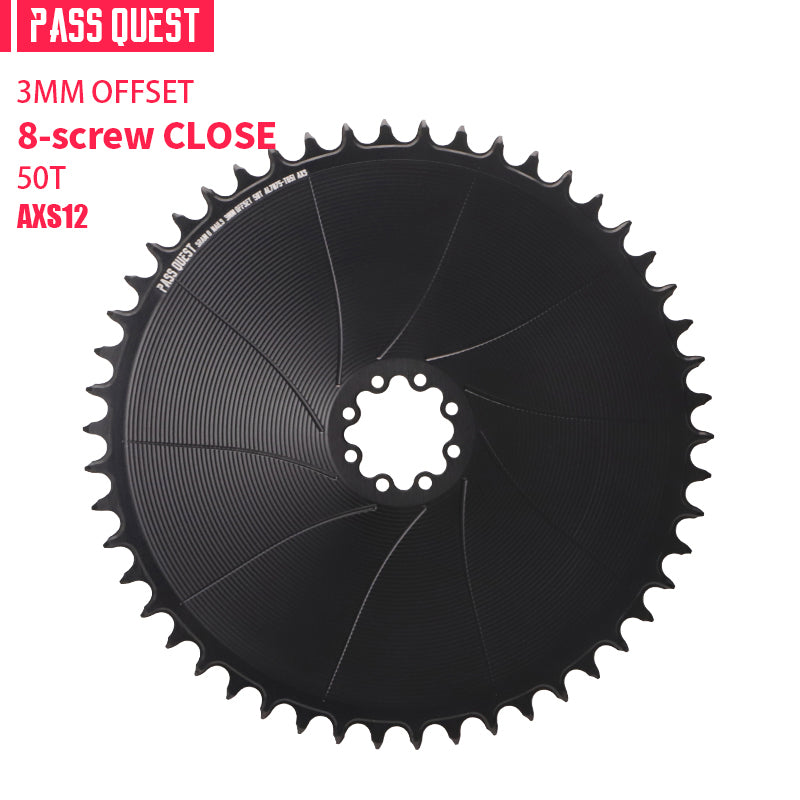

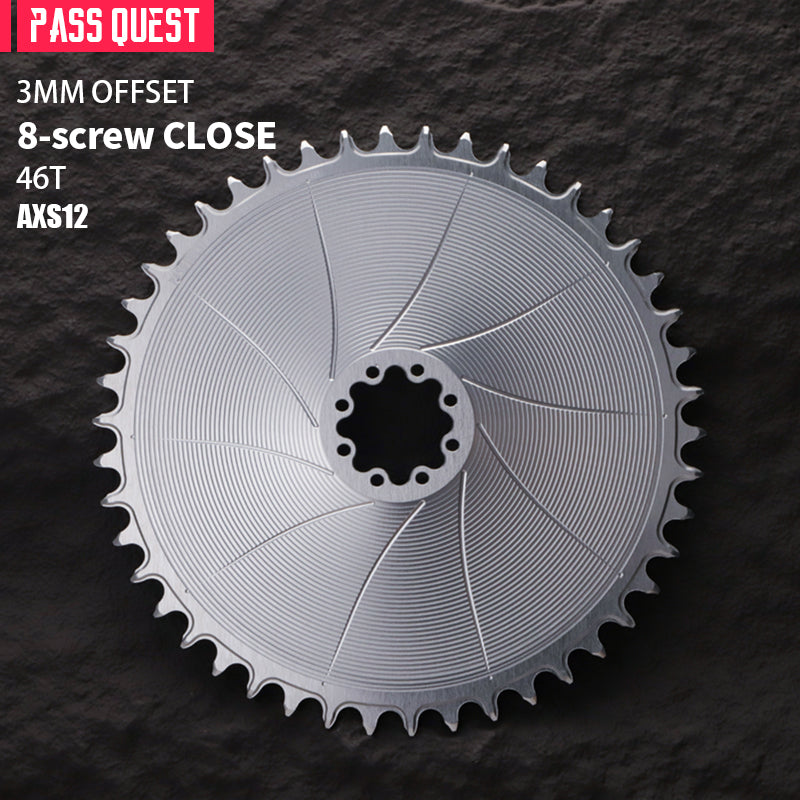

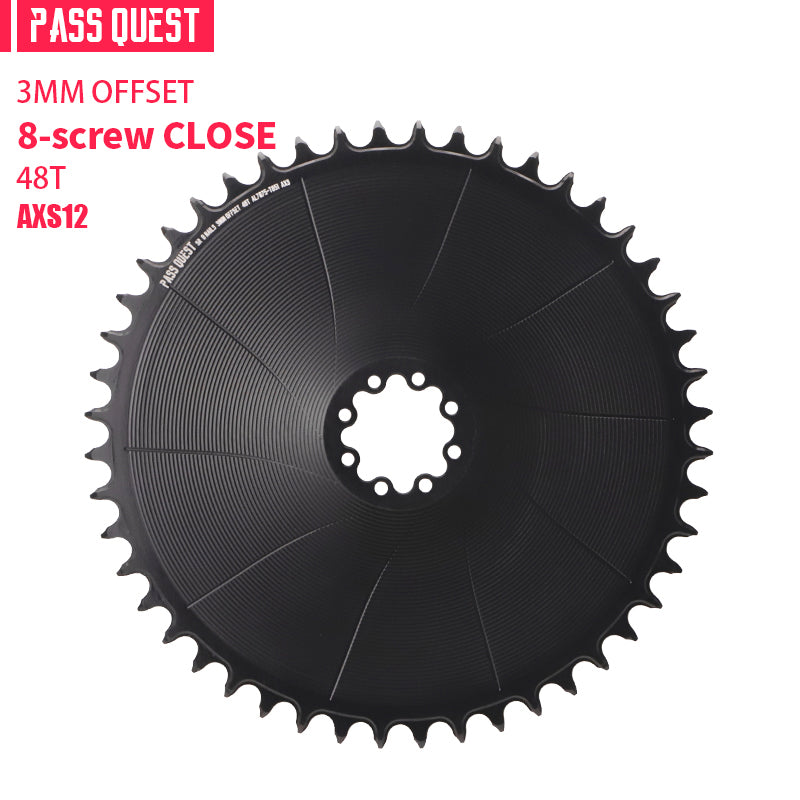

SRAM 8Nails ( 3mm offset) GRAVEL/ROAD AXS XX SL Narrow Wide Chainring 40-56T AXS

SRAM 8Nails ( 3mm offset) GRAVEL/ROAD AXS XX SL Narrow Wide Chainring 40-56T AXS

$8.00 USD
$8.00 USD
Sale Sold out
Select 颜色
Select 尺寸

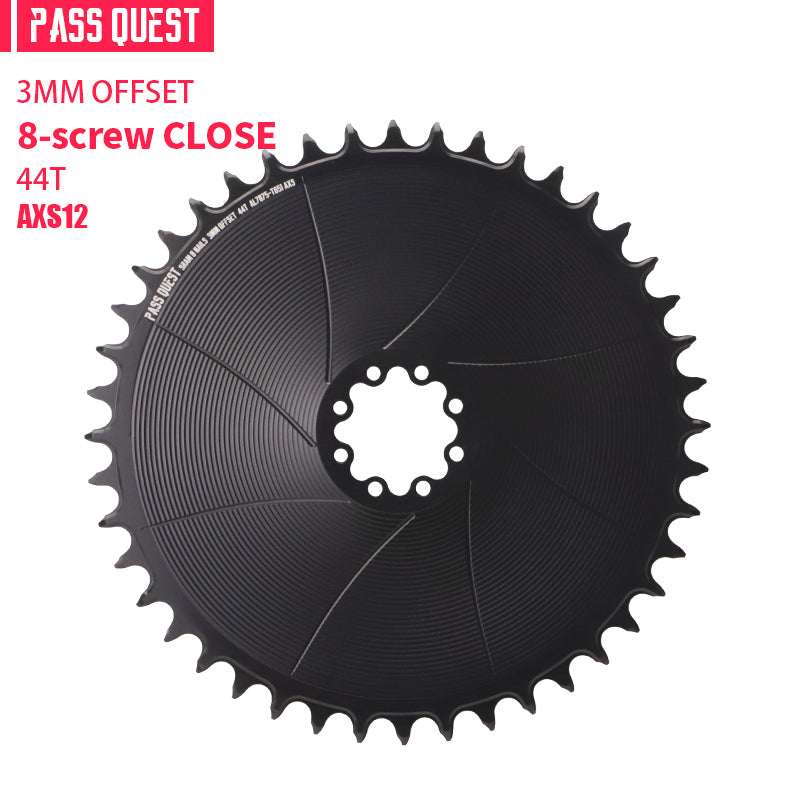

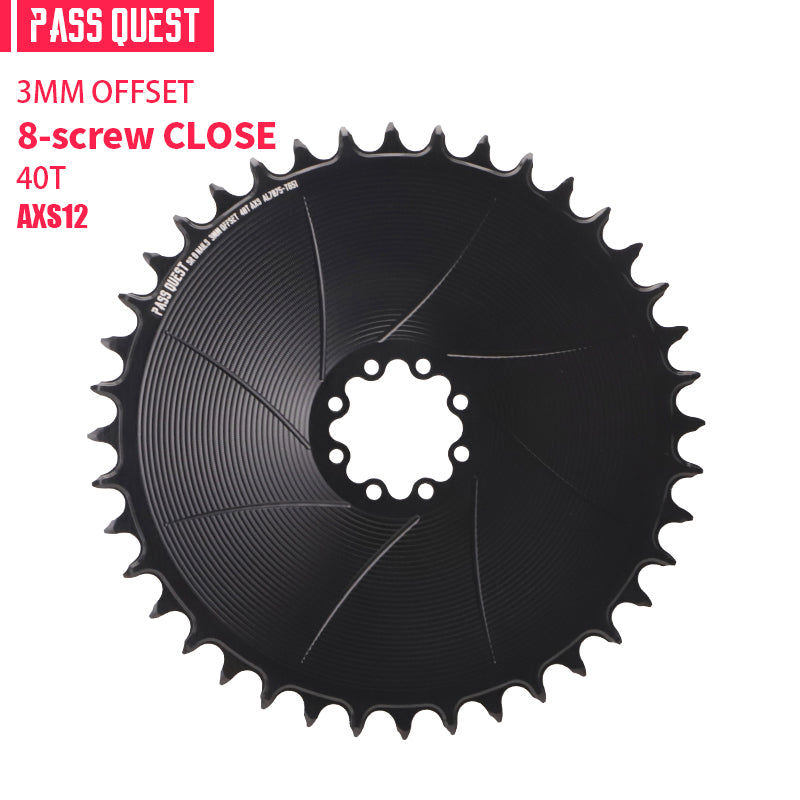

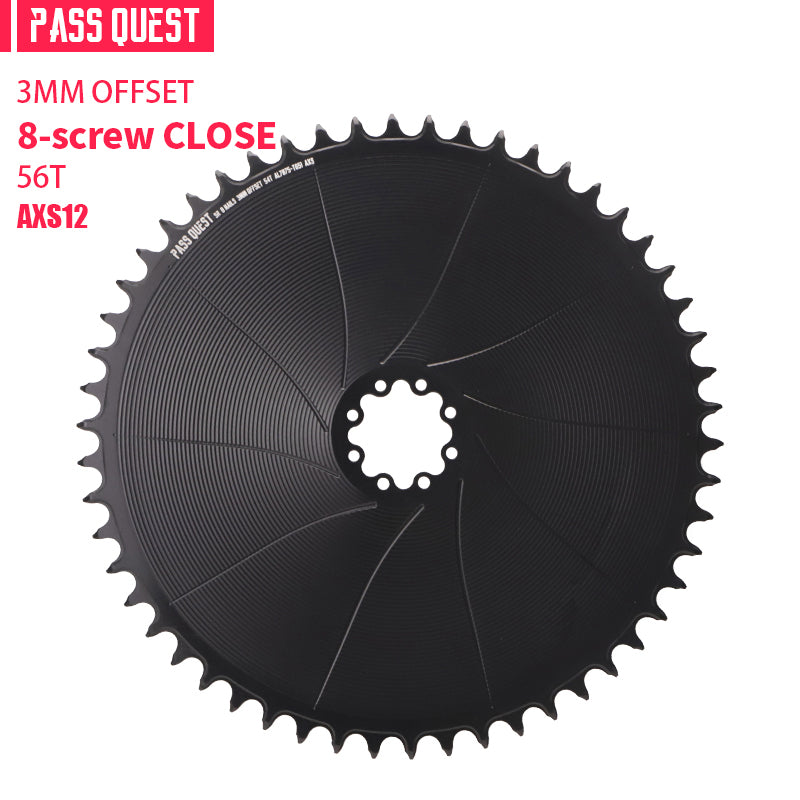

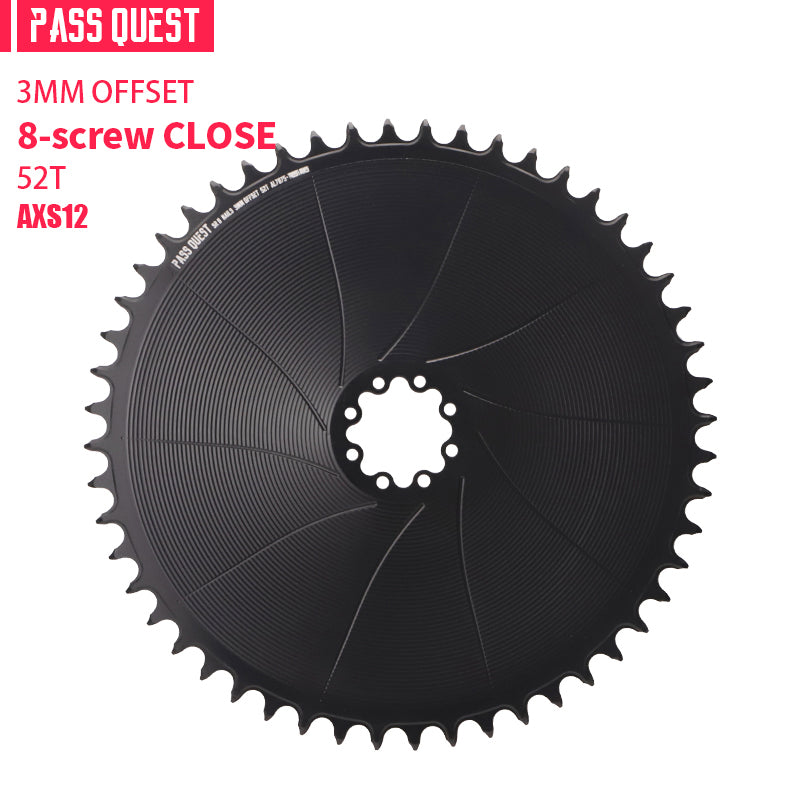

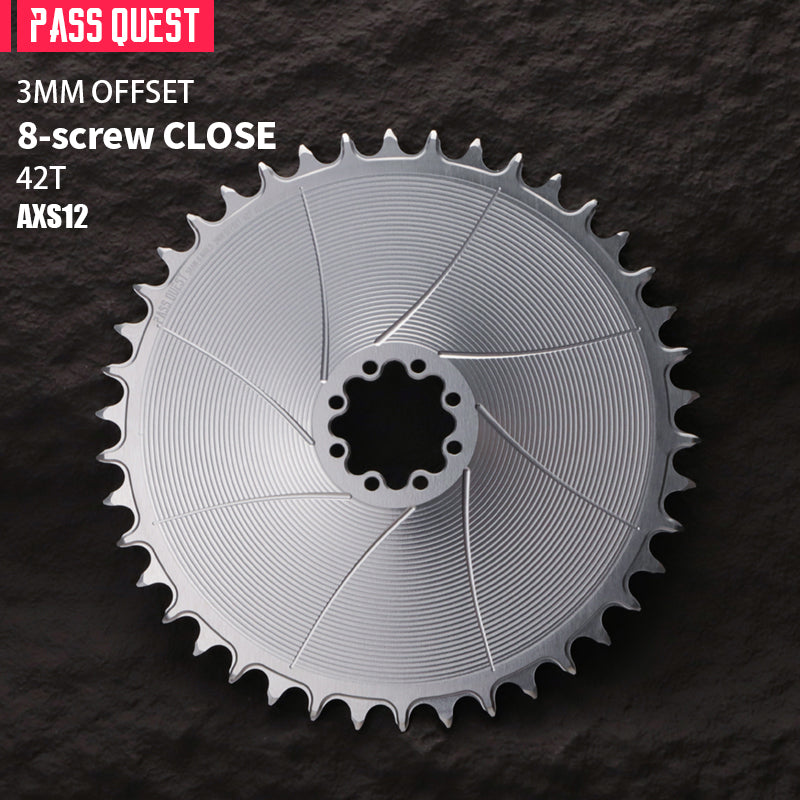

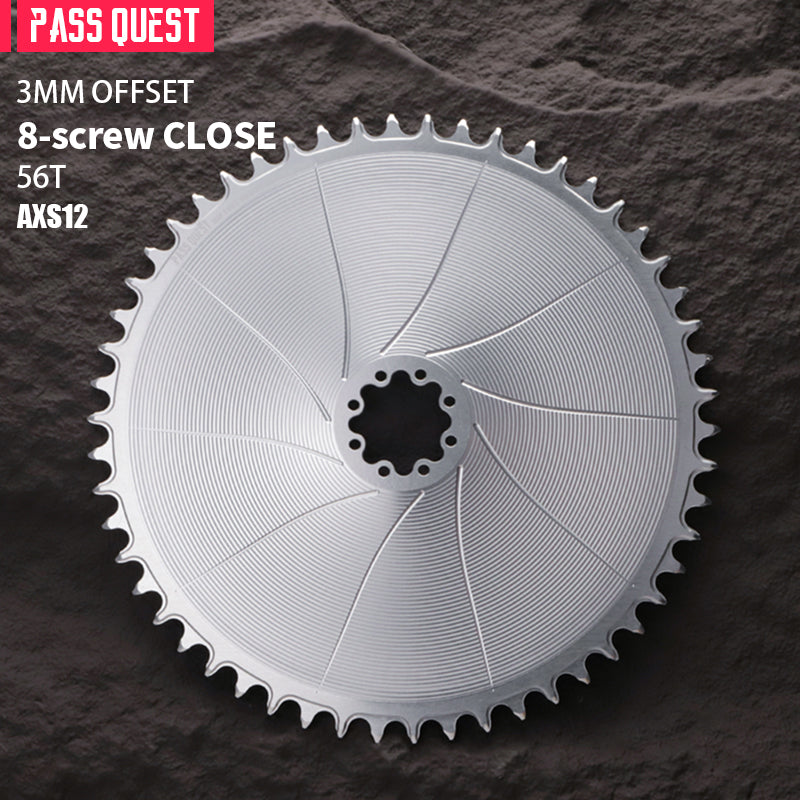

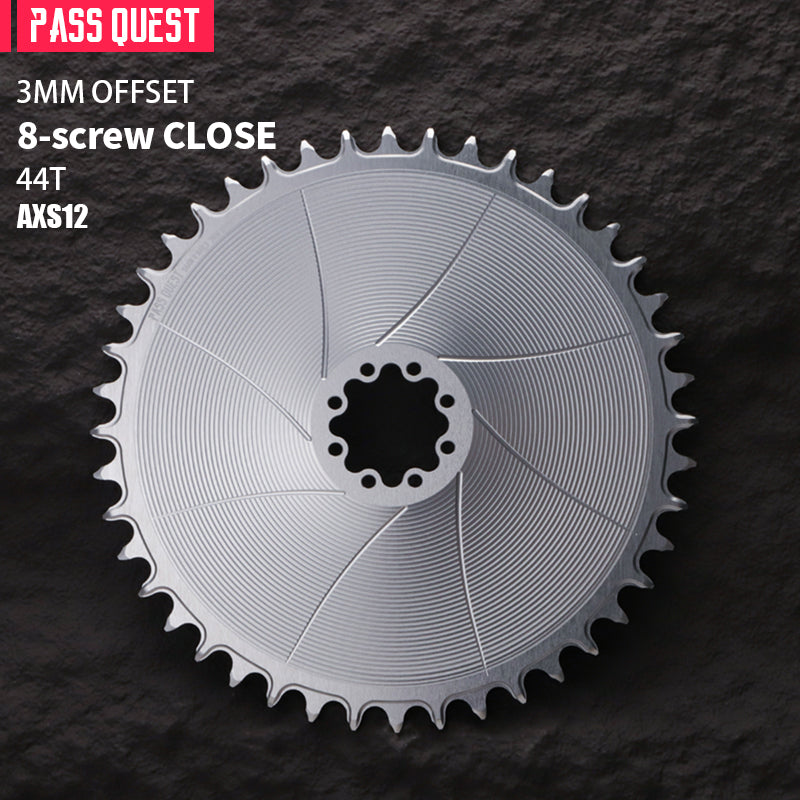

Model 40T or 42T or 44T or  46T or 48T or 50T or 52T or 54T or 56T
Colour Black or Silver
Made from 7075-T651 Aluminum Alloy
Surface coating Anodizing
Made with CNC milling
Chainring shape Round

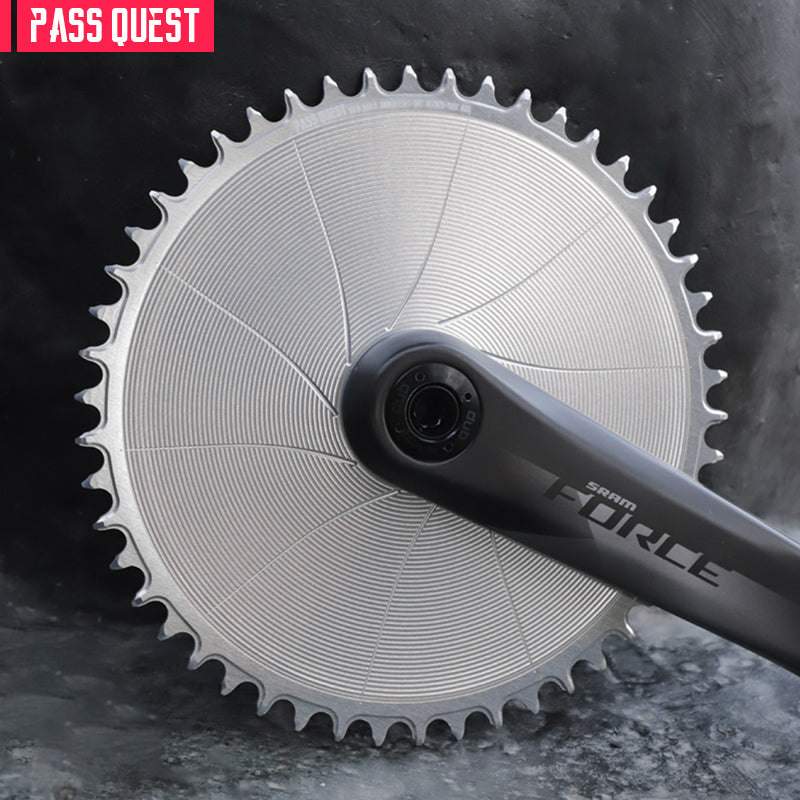

Compatible cranksets SRAM 8 bolt crank FORCE or RED,not magene crank

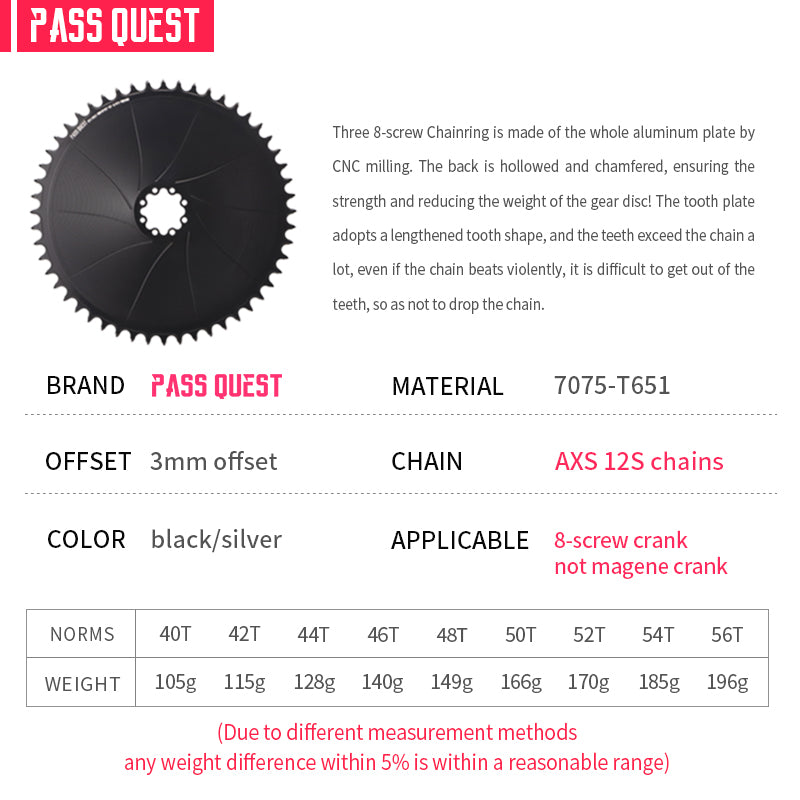

Weight, grams 105g (40T), 115g (42T), 128g (44T), 140g (46T),149g (48T), 166g (50T), 170g (52T),185g (54T), 196g (56T)

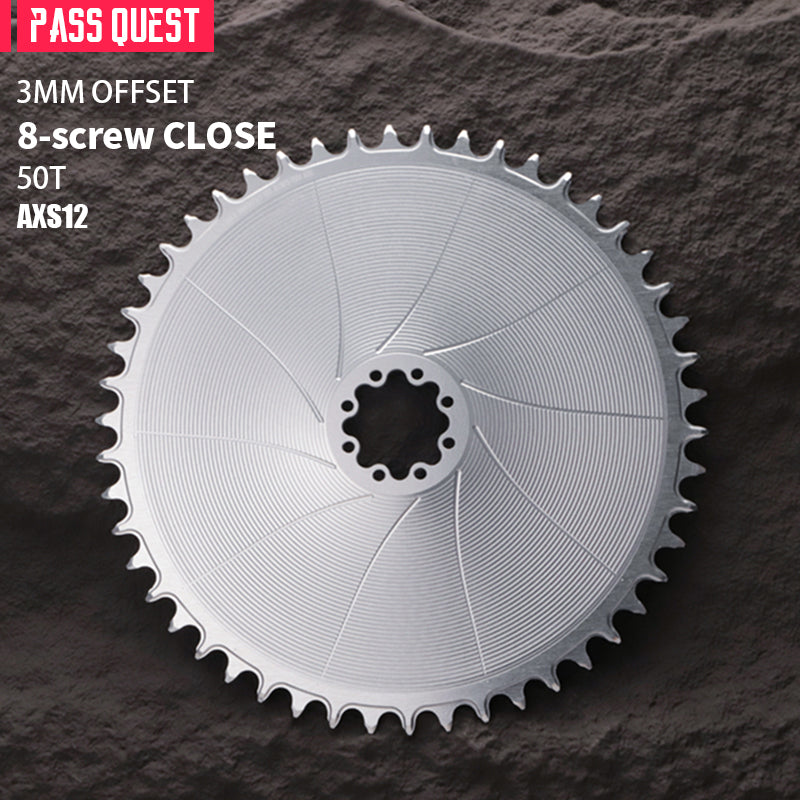

Offset, mm 3mm (Closer to the frame)
Chain compatibility SRAM T-type flattop AXS 12S chain，SRAM 13S chain

Bicycle shops or dealers, please contact us，we can offer preferential pricing.

Contact Email: wenyahu39@gmail.com

To customize devil smiley face and checkerboard pattern, please contact customer .


PASS QUEST NARROW WIDE CHAINRING

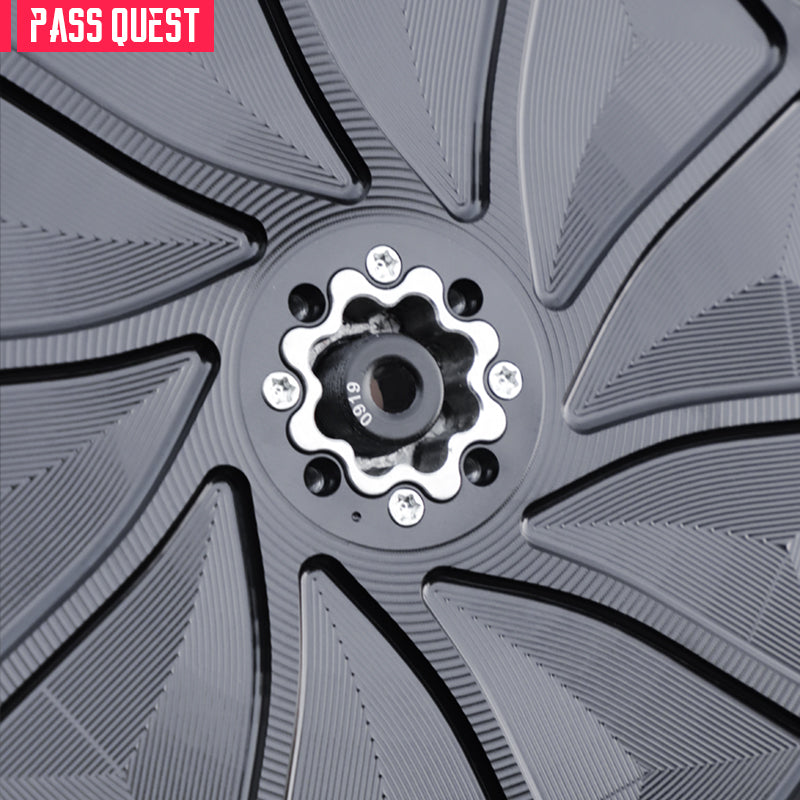

  • The 8-Bolt direct-mount disc is CNC milled from an entirealuminum plate, and the back is hollowed out and chamferedto ensure strength while also reducing the weight of thechainring! The chainring adopts an extended tooth shape, andthe space between the teeth extends far beyond the chain.Even if the chain jumps violently, it is difficult to escape fromthe space between the teeth, so that the chain does not fall off.
  • Our tooth height achieved 8.5 mm, Increased tooth height improves chain retention
  • We utilize American-standard 7075-T651 aerospace-grade aluminum alloy; the use of superior materials serves as the fundamental guarantee of our product's quality. Additionally, the surface undergoes an anodizing process, which significantly prevents the aluminum from oxidizing.

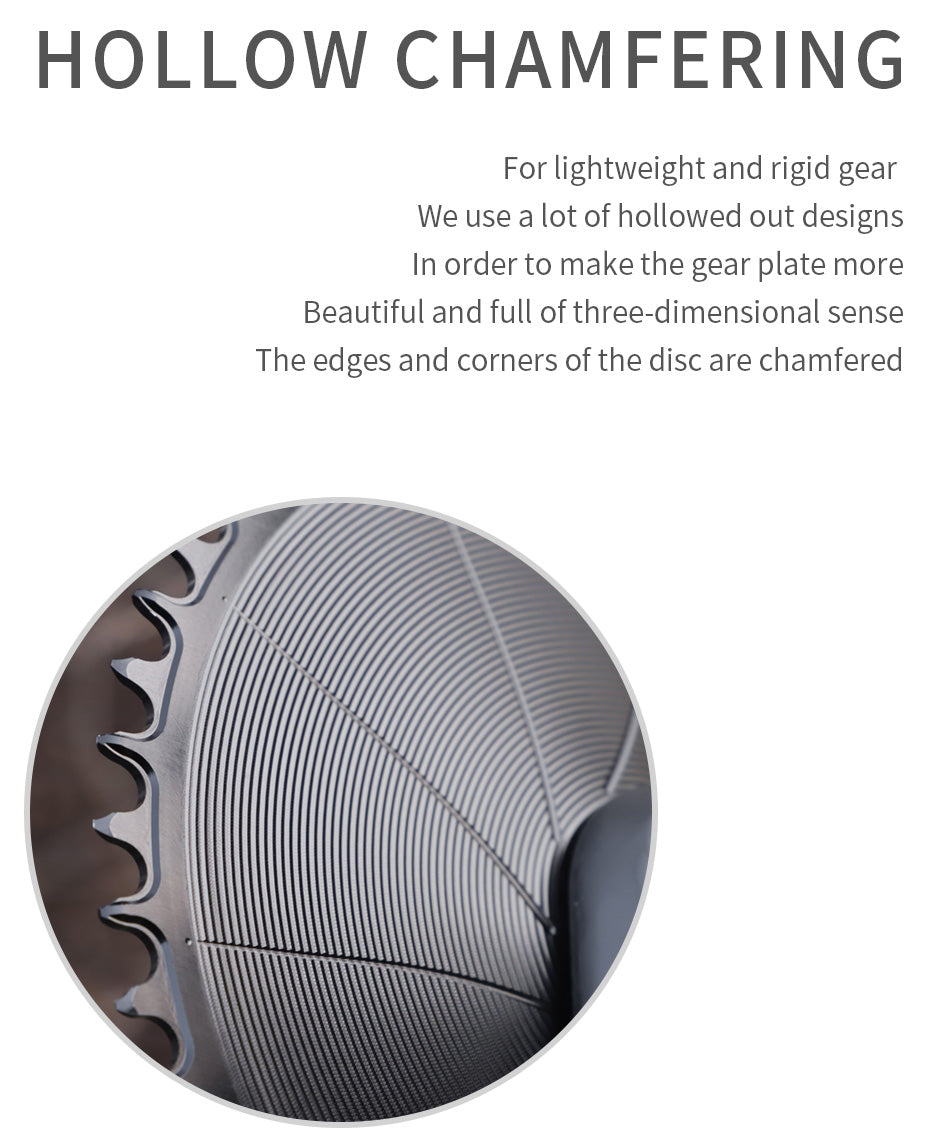

  • The chamfering design can reduce the weight of the gear plate and make the gear plate more beautiful
  • If you are looking to change your chainring offset and wish to determine the maximum tooth count your frame can accommodate, please contact our customer service team. We can guide you through the measurement and calculation process to determine the maximum tooth count supported by your frame.
  • Installing this product requires a T25 tool to tighten the screws.
  • Package Contents:

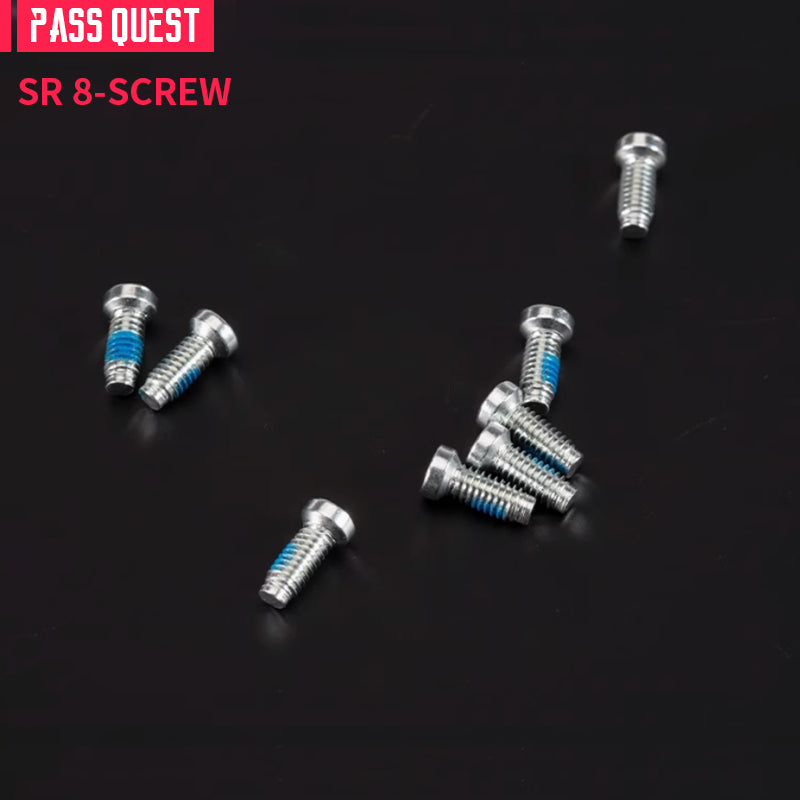

    1 x chainring,（8-bolts not included）

View full details

Which size of an oval should I choose

We always recommend swapping like for like, so if you have a 32T round ring at the moment, you should consider getting a 32T oval. The same applies to our shiftable road ovals, we recommend that you purchase ovals with the same teeth count as your round rings.

How to calculate gear inches for an oval chainring

Exactly same way as for round chainring. You just need to use the nominal size in the calculation of an oval ring you have. That is, if you buy 32T oval you use for calculation 32T size. Reason for this is 32T oval chainring has same circumference as the 32T round. We optimize the shape but not circumference - it stays constant. Distance between each teeth always has to remain at 12.7mm to engage the chain properly. You can use any online calculator to get gear inches for an oval chainring.
