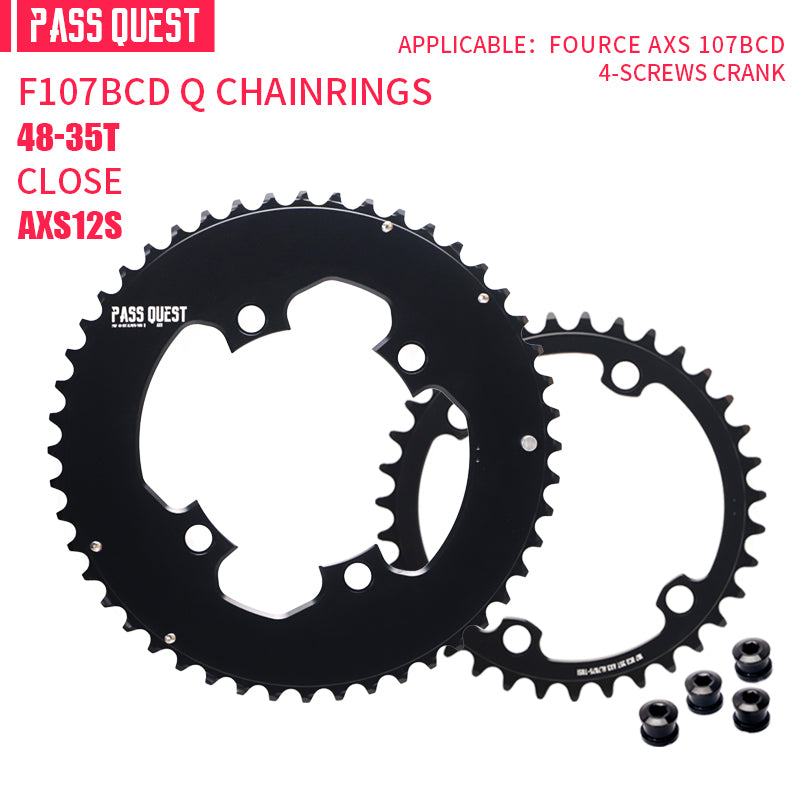

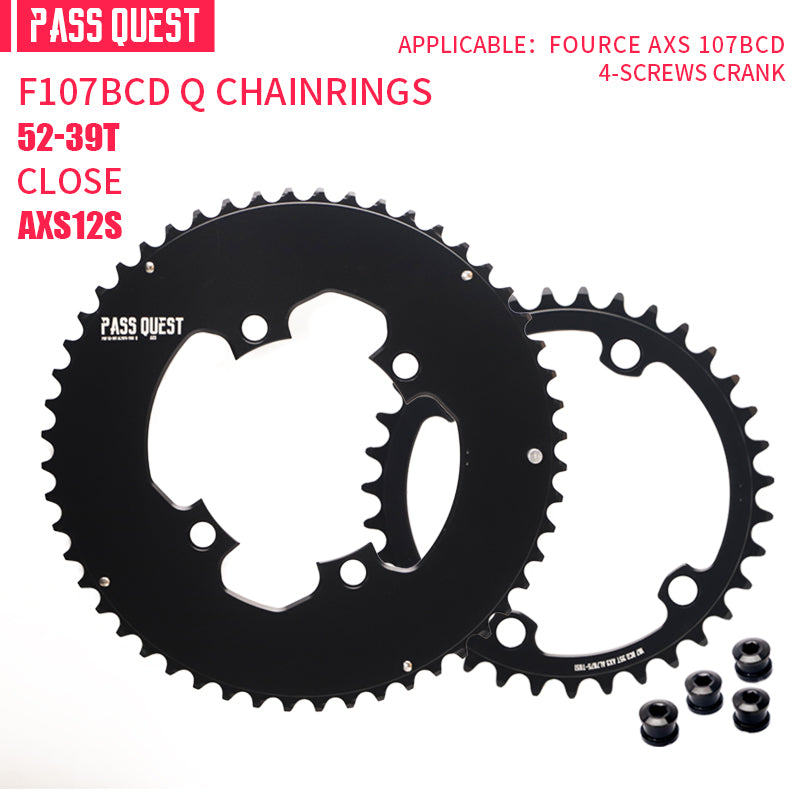

SRAM FORCE 107BCD-Quarq 2X Sprocket AERO Road bike Gravel bike 12s AXS

Model

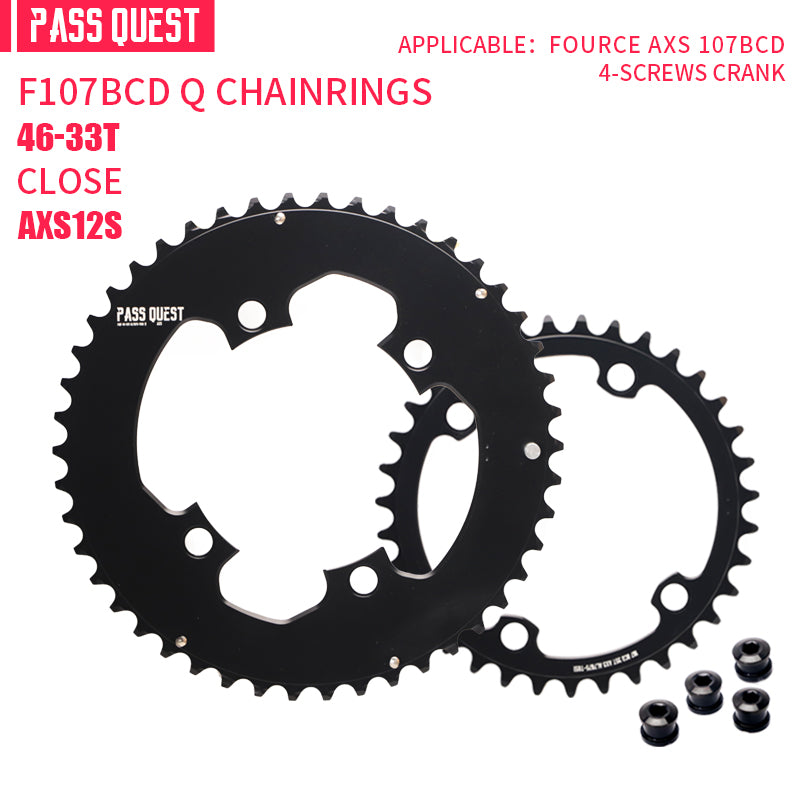

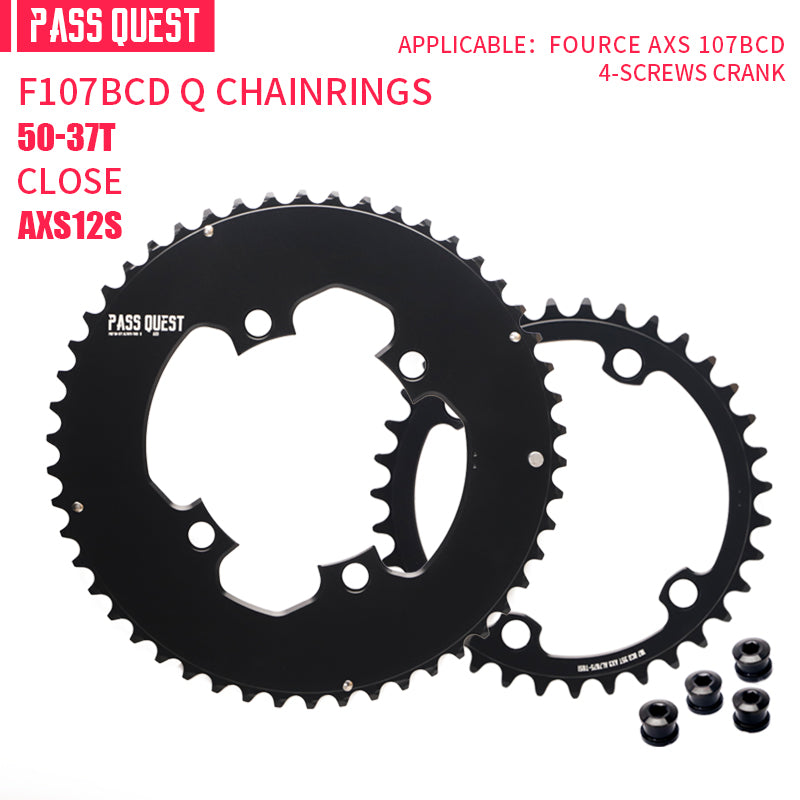

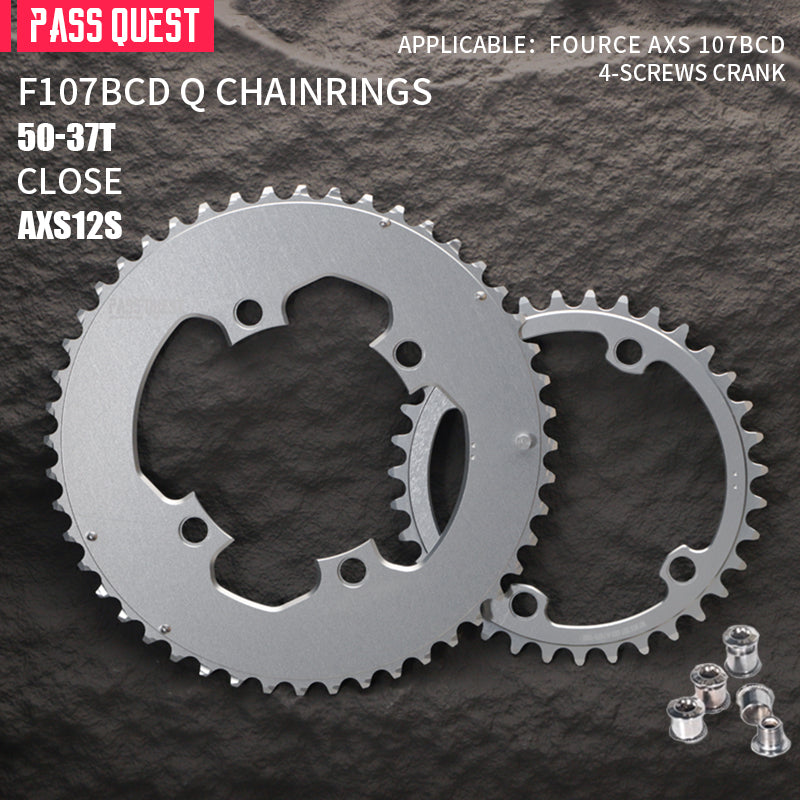

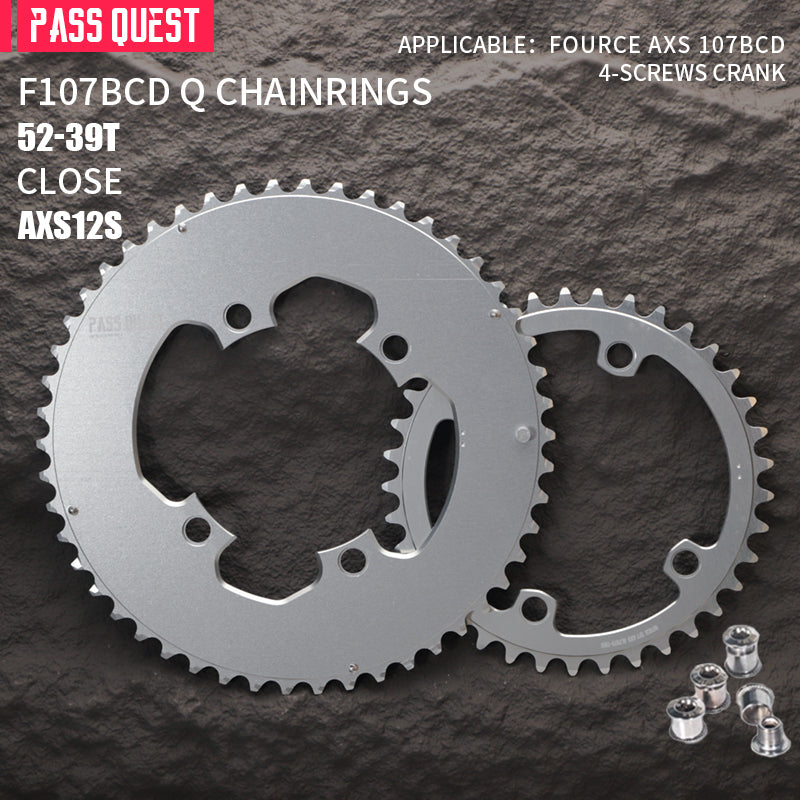

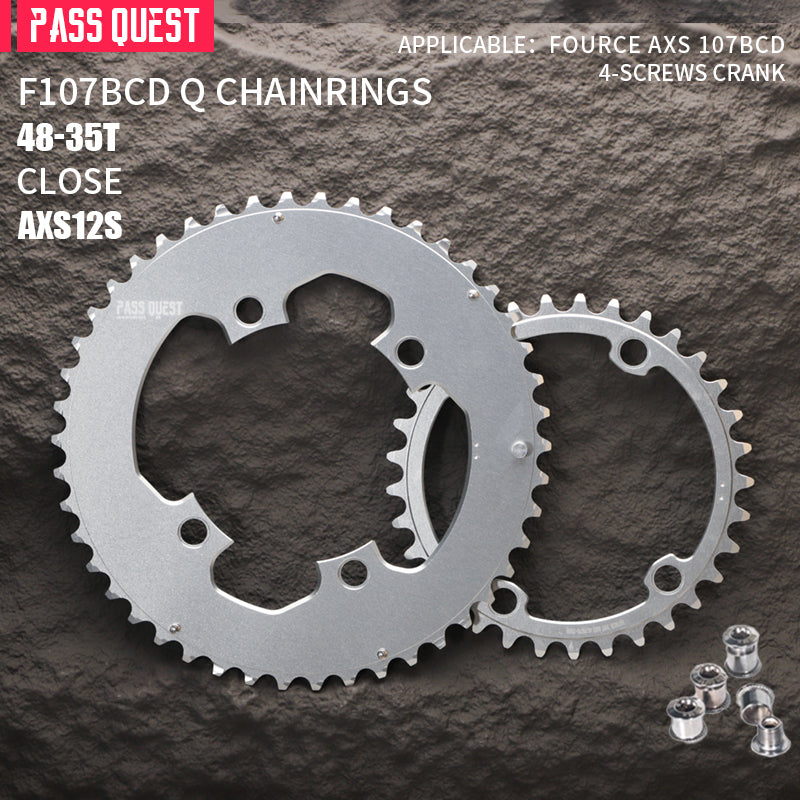

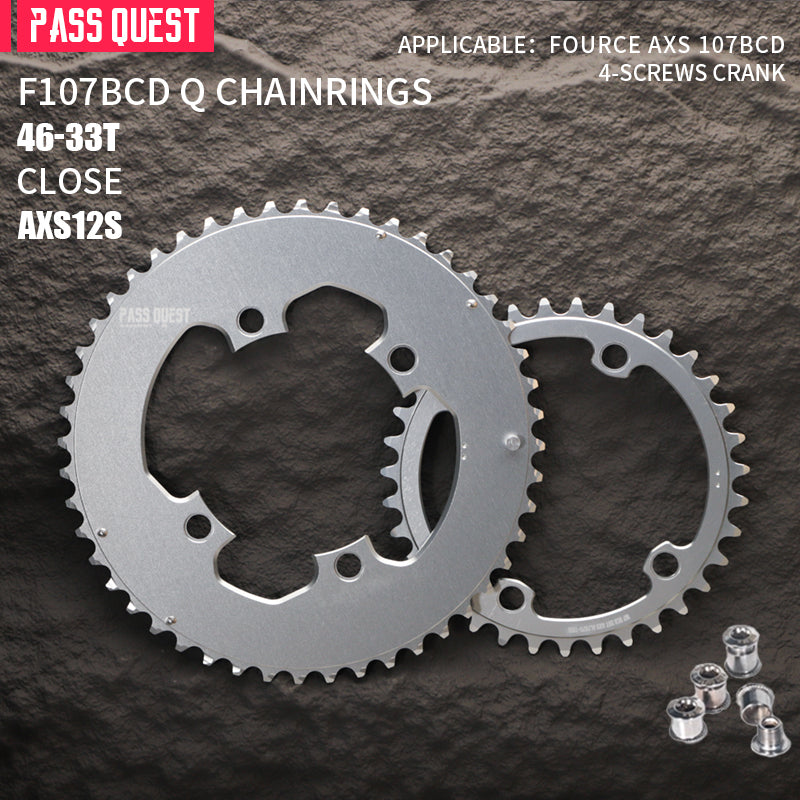

46-33T or 48-35T or 50-37T or 52-39T

Colour

Black or Silver

Made from

7075-T651 Aluminum Alloy

Surface coating

Anodizing

Made with

CNC milling

Chainring shape

Round

Compatible cranksets

107 BCD (4-bolt)  SRAM FORCE 107BCD-Quarq

Weight, grams

124g (46-33T), 146g (48-35T), 168g (50-37T), 193g (52-39T)

Chain compatibility

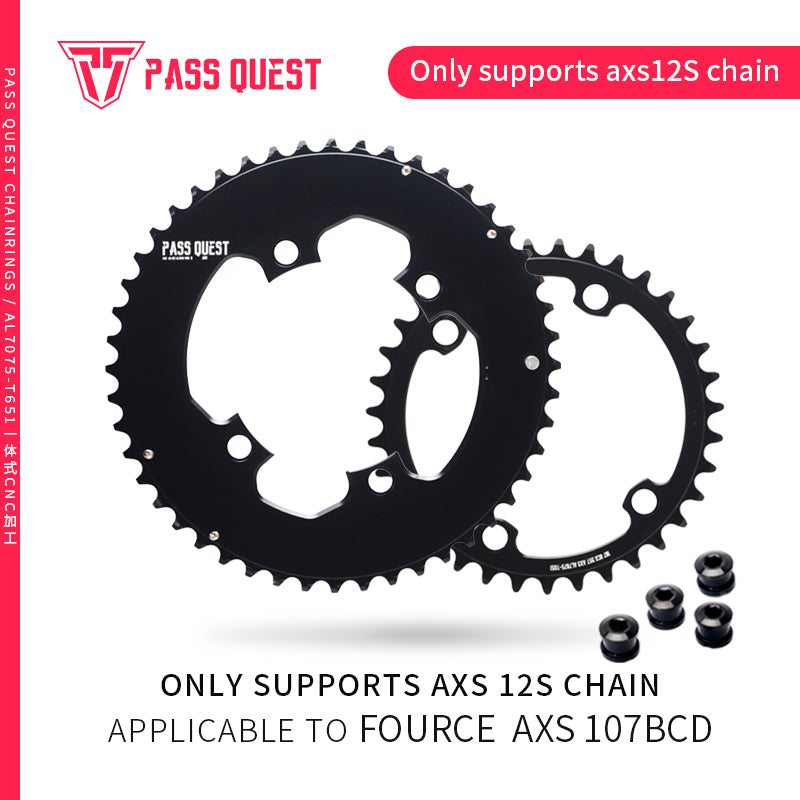

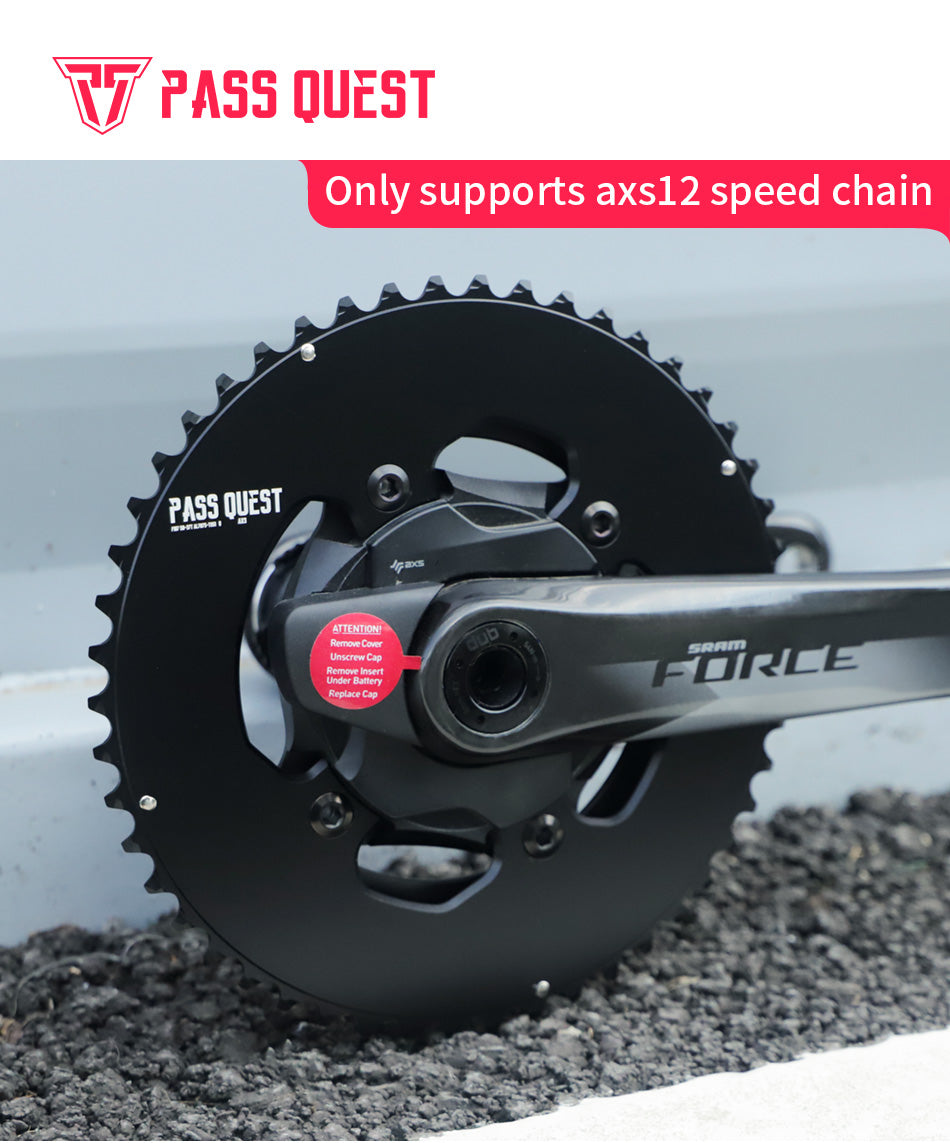

SUPPORT SRAM 12 SPEED AXS  CHAIN

PASS QUEST NARROW WIDE CHAINRING

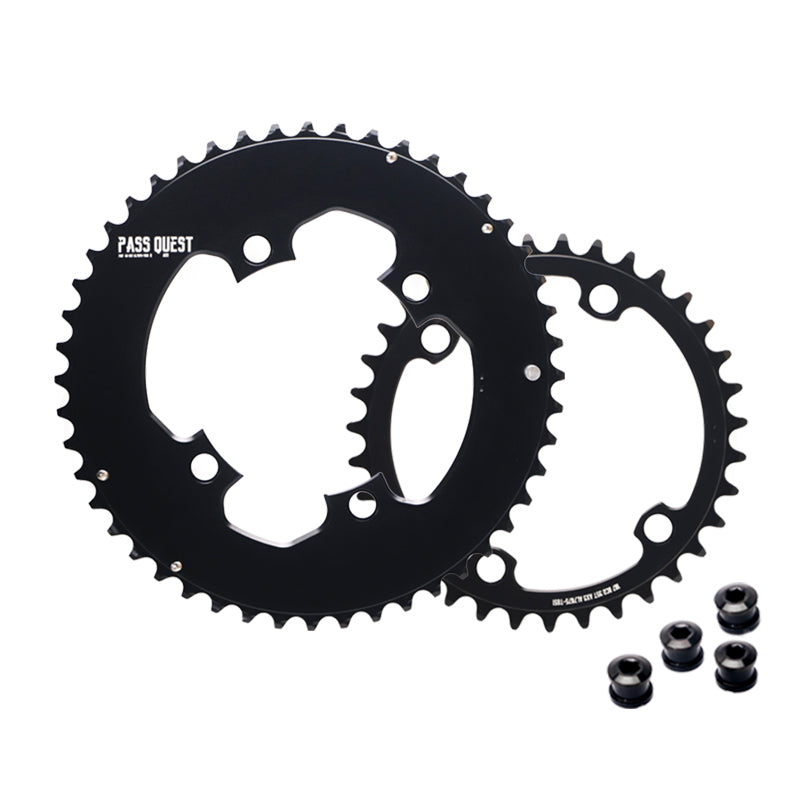

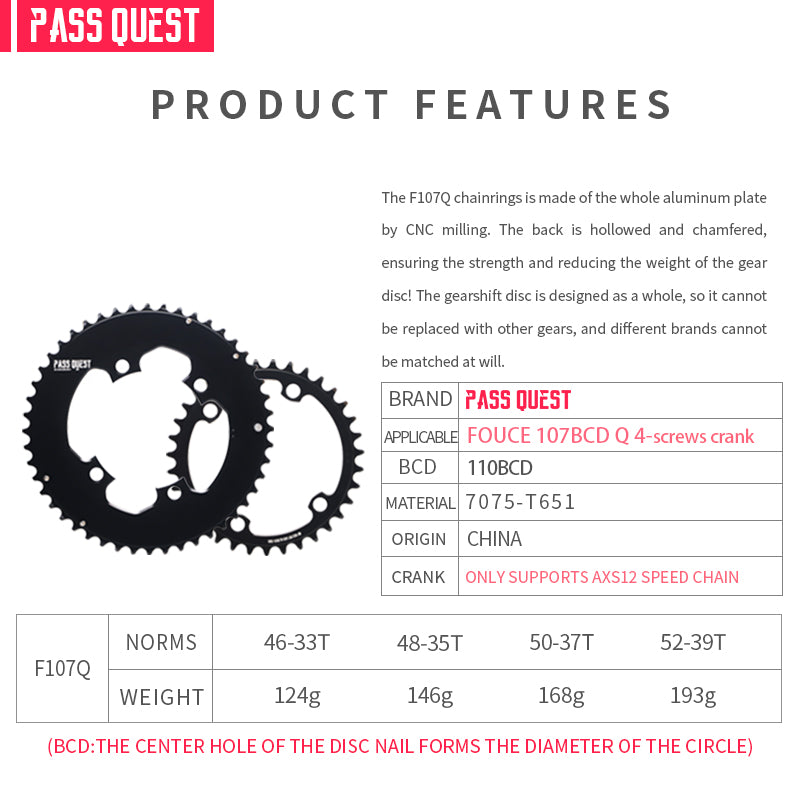

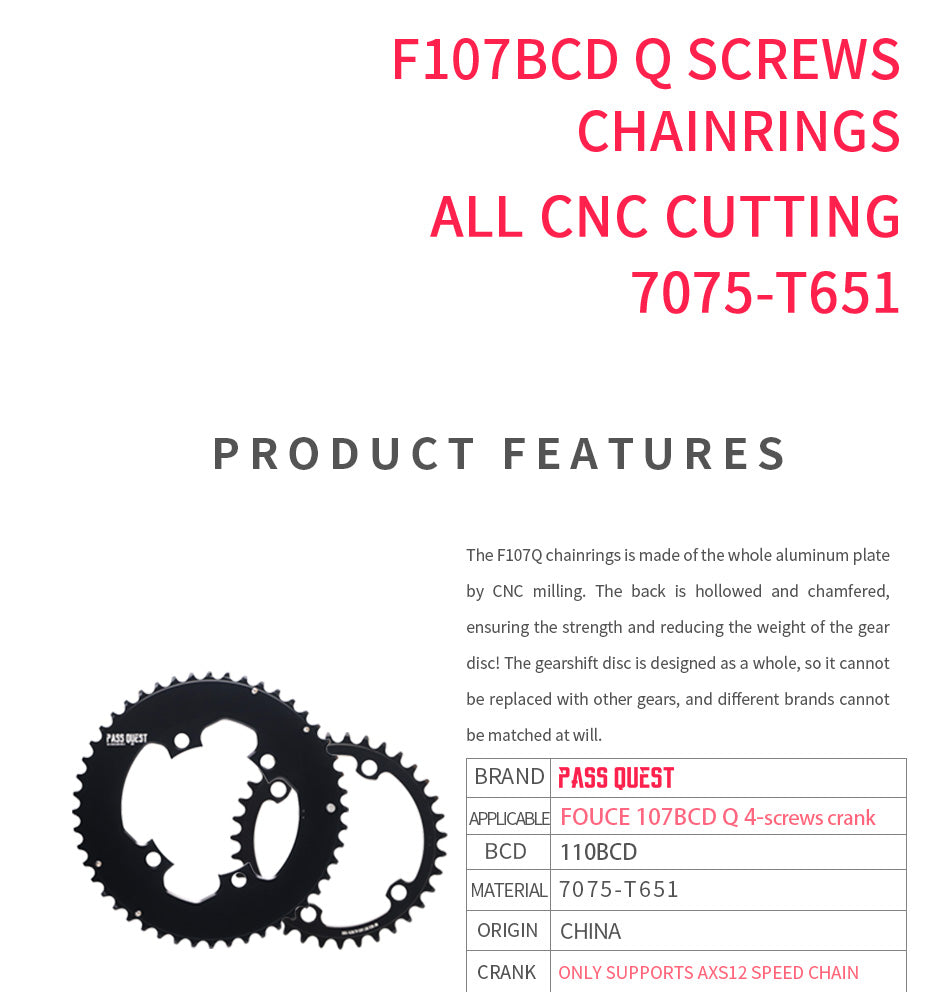

• The F107-Q chainrings is made of the whole aluminum plateby CNC milling.The back is hollowed and chamfered,ensuring the strength and reducing the weight of the geardisc! The gearshift disc is designed as a whole, so it cannotbe replaced with other gears, and different brands cannotbe matched at will.
• Smooth Shifting: We conducted over 30 experiments—patiently refining the tooth profile, the placement of the up-shift pins, and the orientation of the down-shift ramps—ultimately earning the seal of approval from numerous expert testers.
• Anodized Surface: 7075 aluminum alloy is a particularly challenging material to anodize. To address this, we conducted multiple rounds of prototyping and ultimately selected a Taiwan-based manufacturing facility to ensure the highest quality anodized finish for our chainrings.
• Lightweight Design: To optimize both weight reduction and rigidity, we have subjected the chainring to extensive hollowing and chamfering processes.
• Ensuring its lightweight performance remains far ahead of the competition, this chainring features a uniquely shaped pin design to deliver exceptional chain-catching capabilities, thereby significantly boosting shifting efficiency.

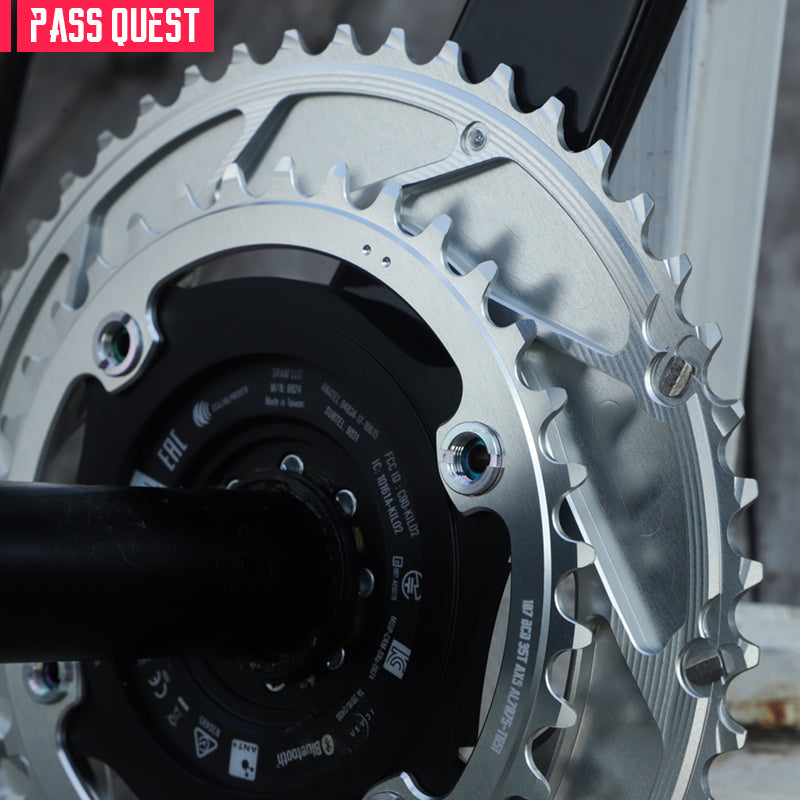

• Countersunk Structure: This design enables precise positioning and increases the contact area with the chainring; furthermore, it results in a cleaner installation aesthetic and effectively minimizes extraneous noise.
• The double chainrings are designed well. Do not mix different brands and different gear numbers. Smooth speed change cannot be guaranteed.
• All PASS QUEST double chainring must be used as pass quest original pair set. Mix with other brand chainring will not work.

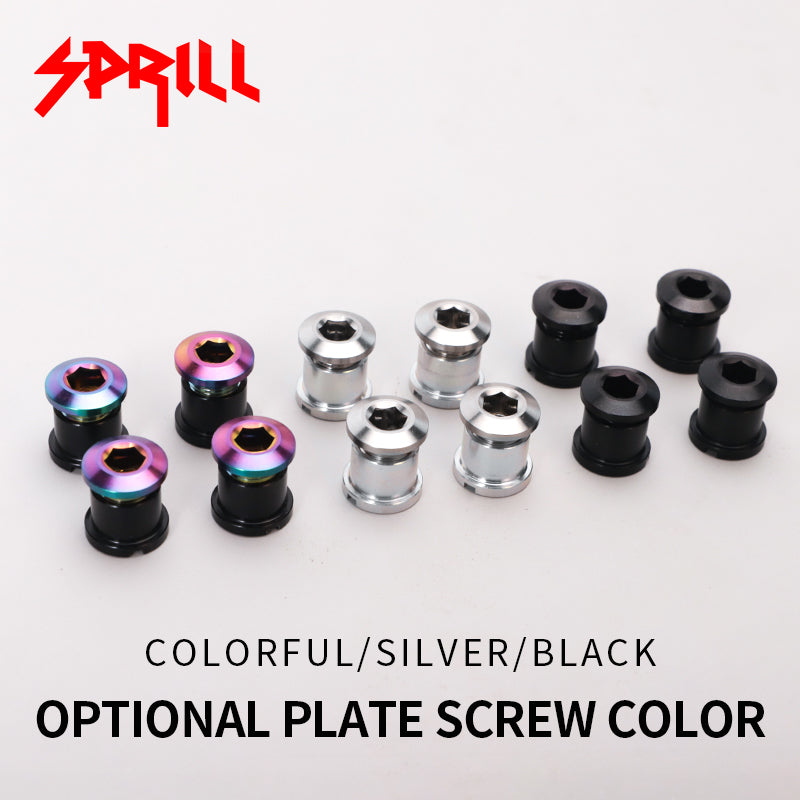

• We provide standard screws free of charge.
  Locking torque: 6-8 N·M
  Excessive torque may damage the screw

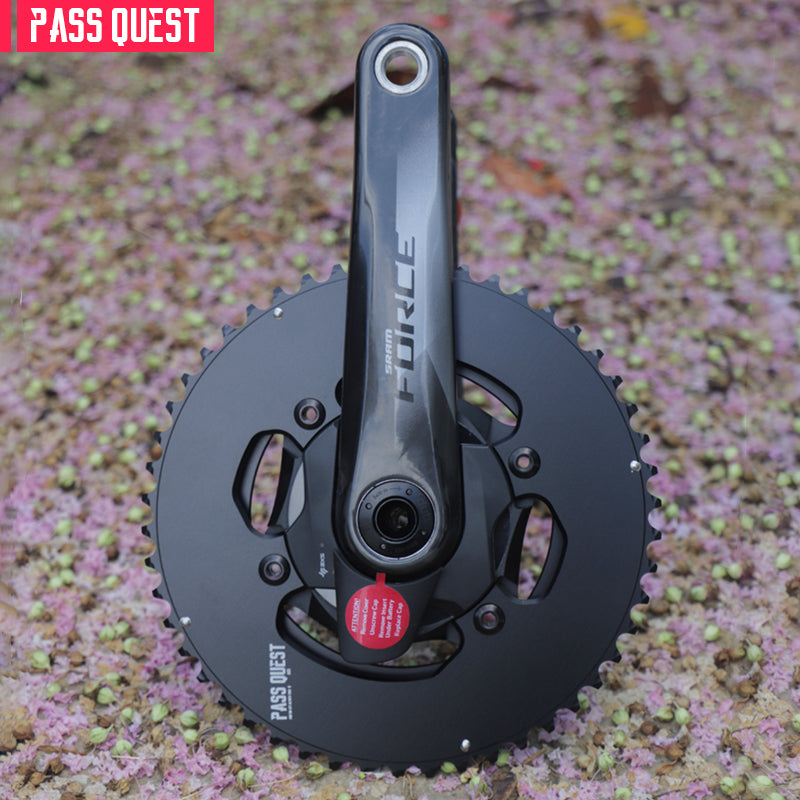

• Installation Instructions:
  1. Position the large chainring pin directly beneath the crank arm.
  2. Align the positioning point on the small chainring directly beneath the crank arm.
  3. Align the countersunk holes with the chainring bolts to complete the installation.
•
