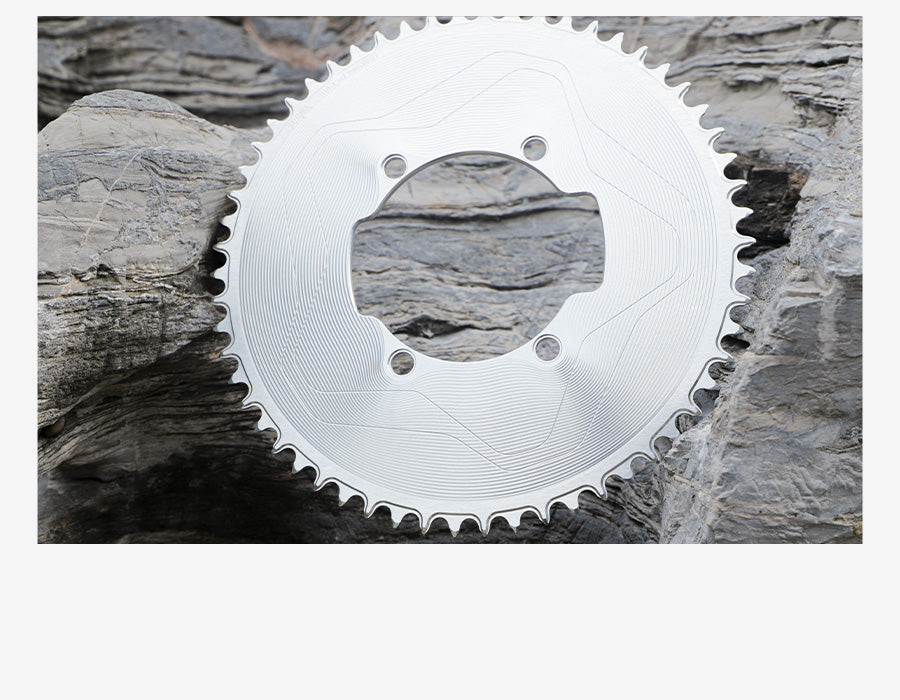

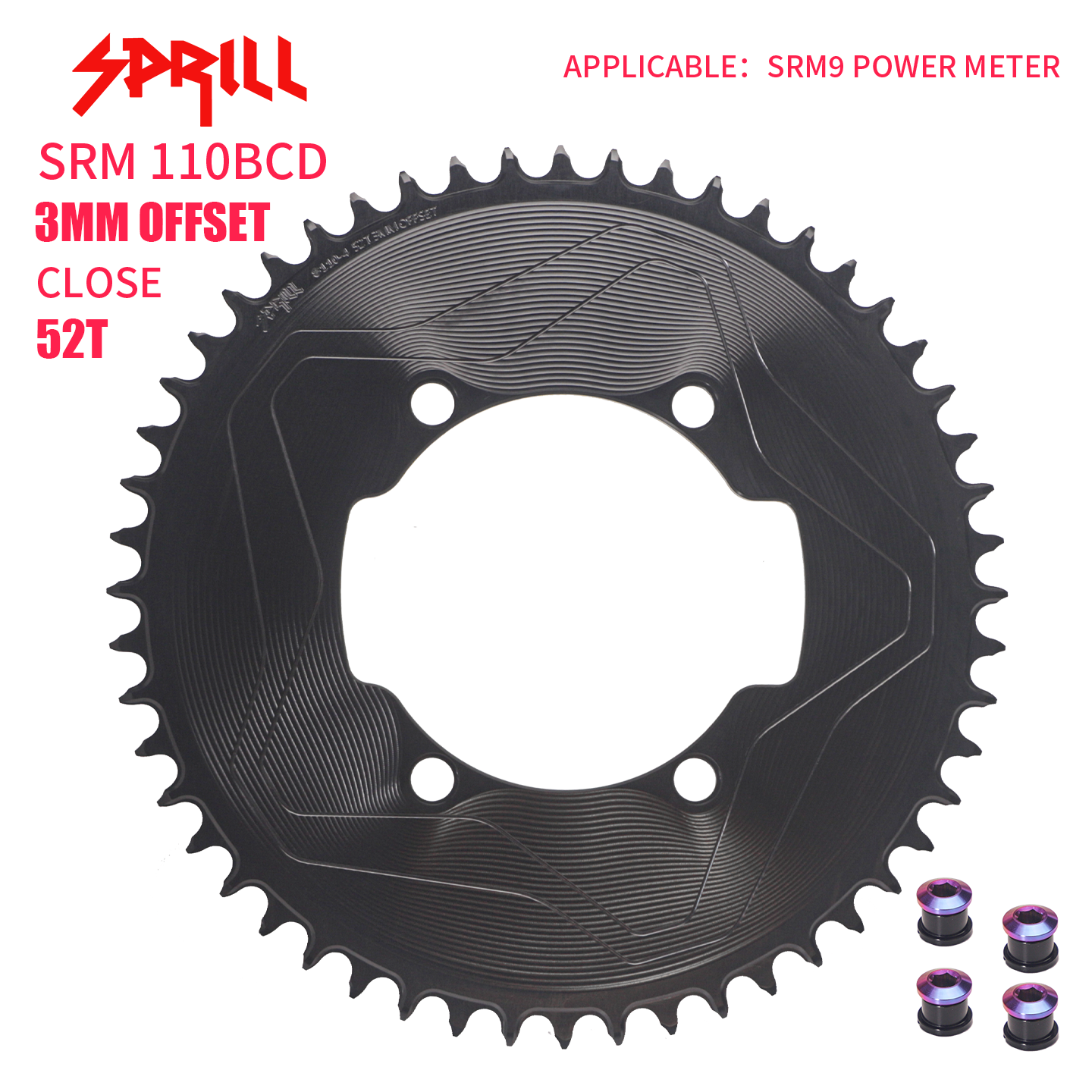

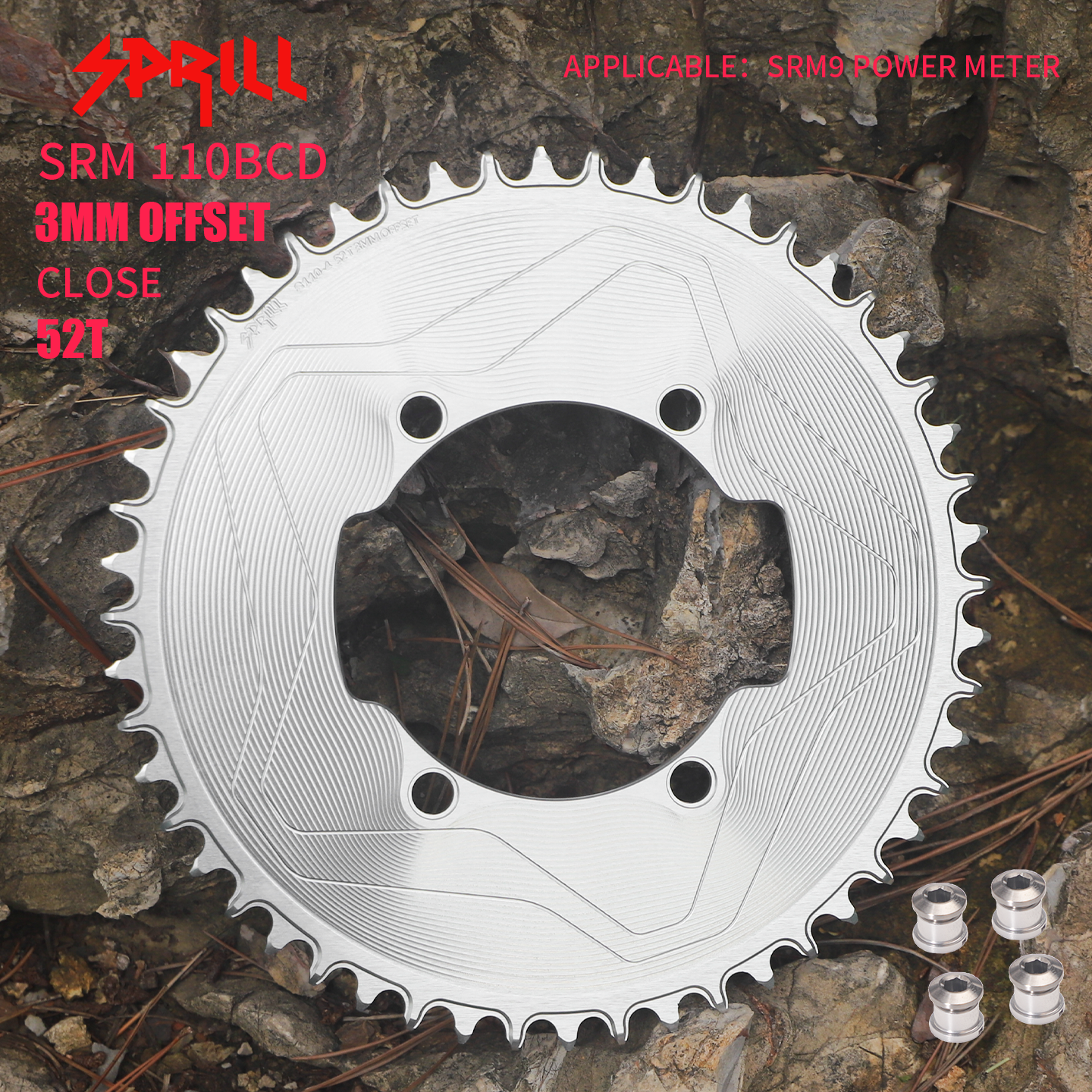

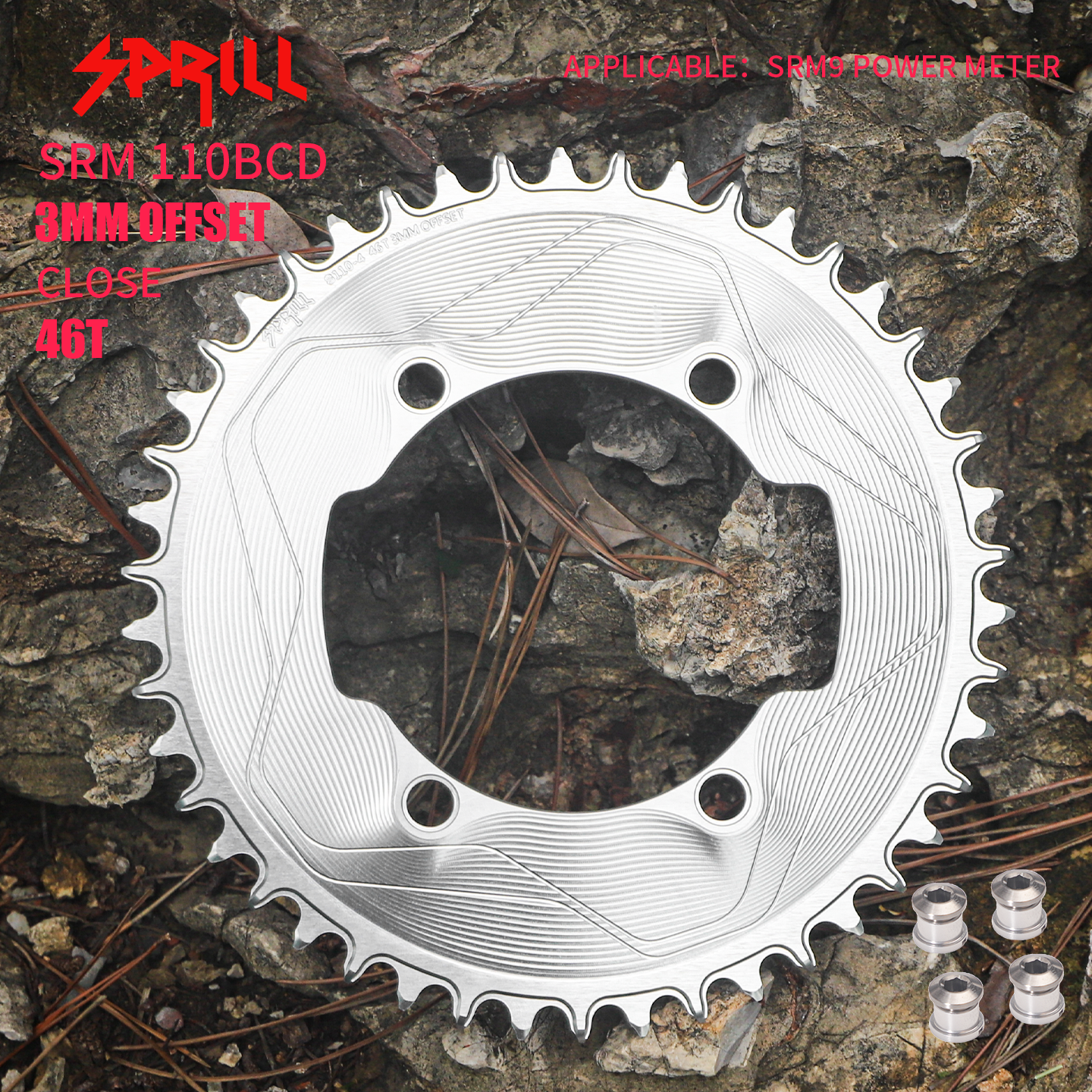

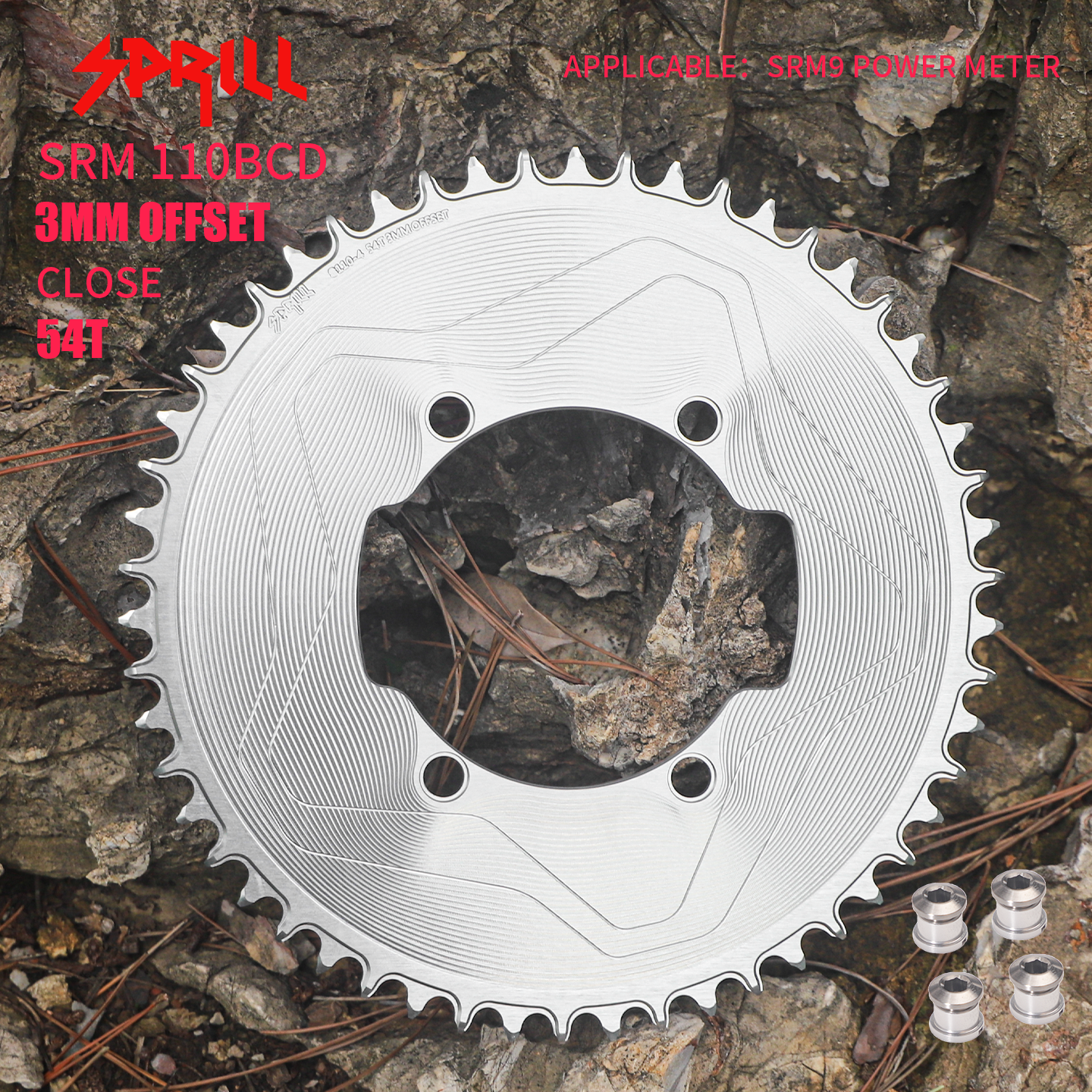

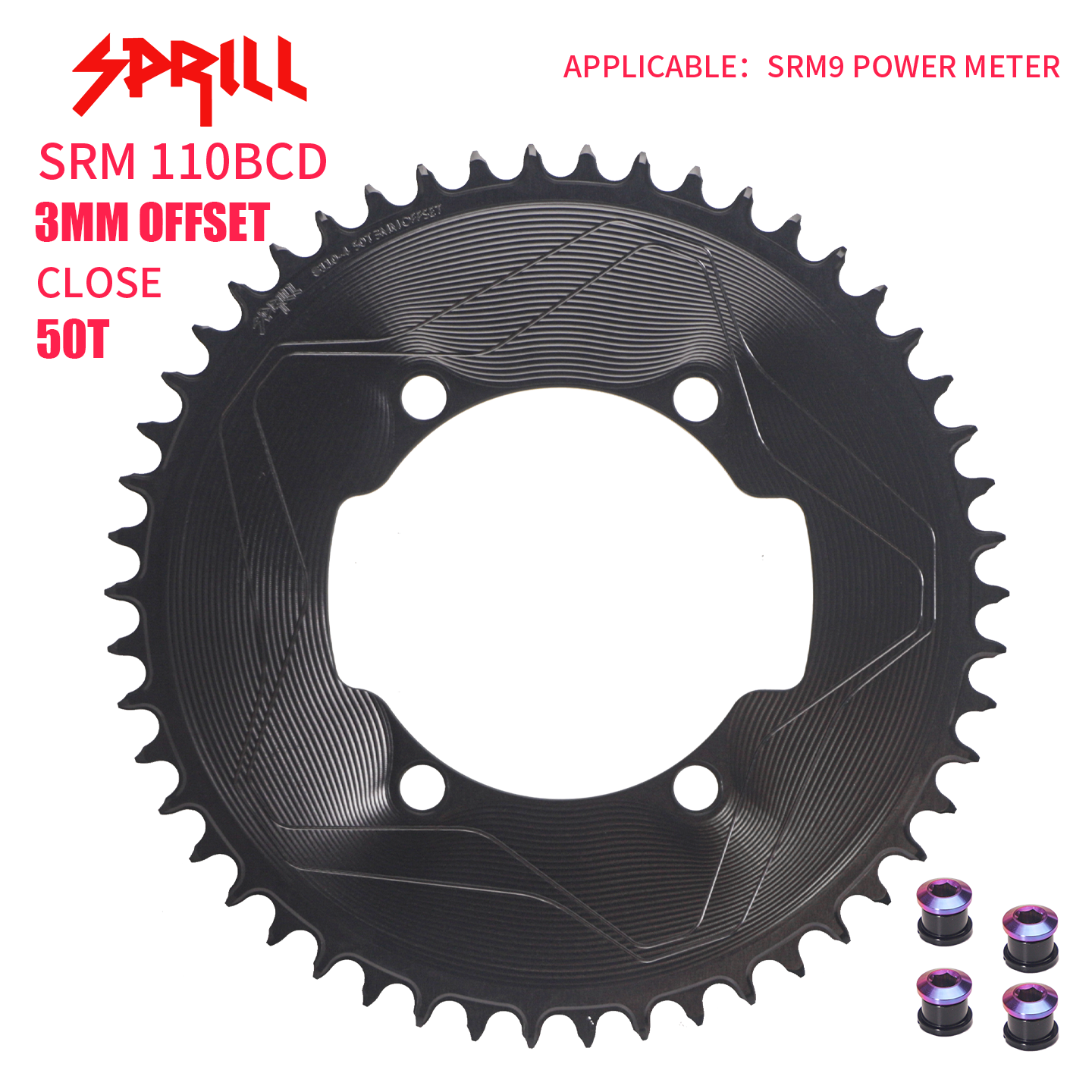

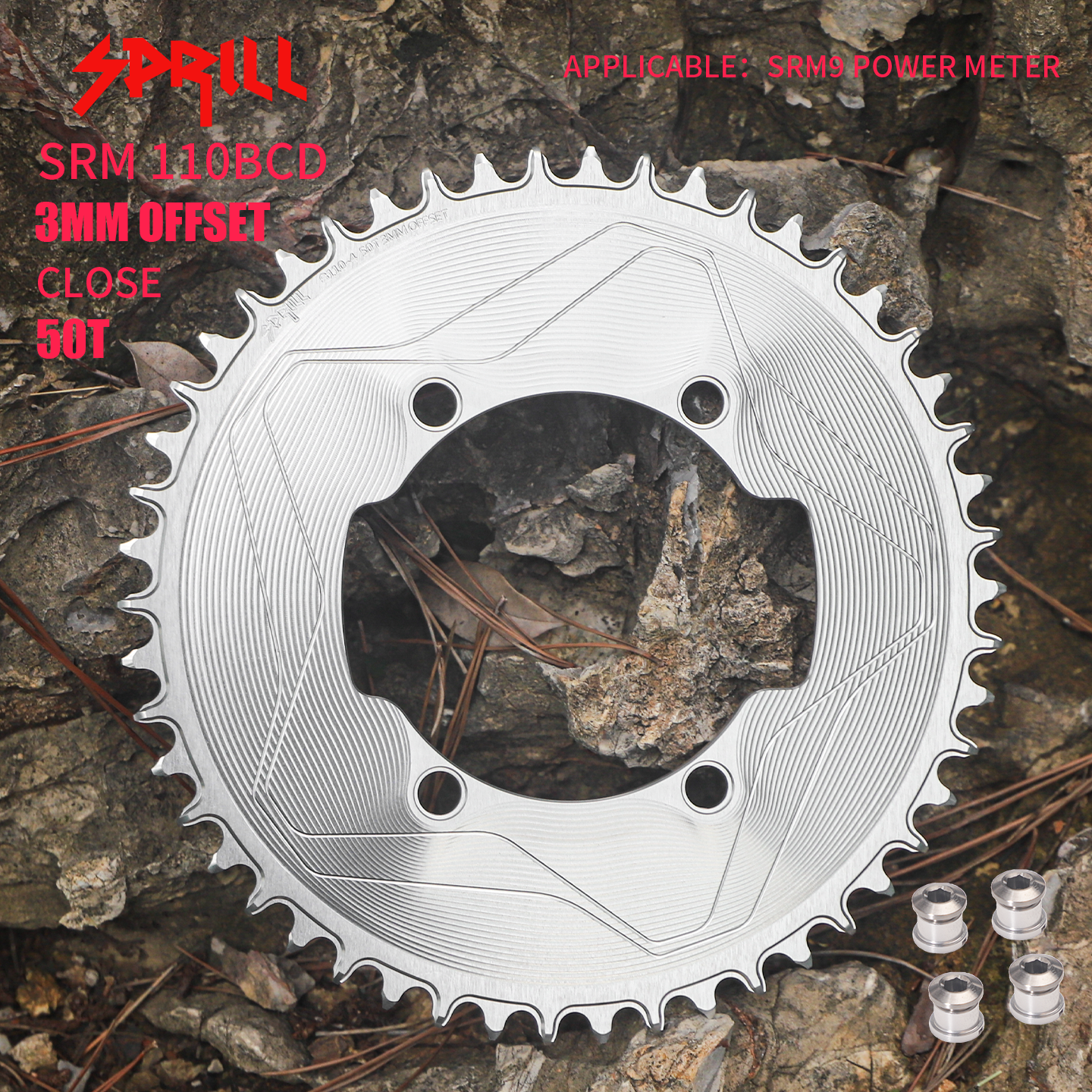

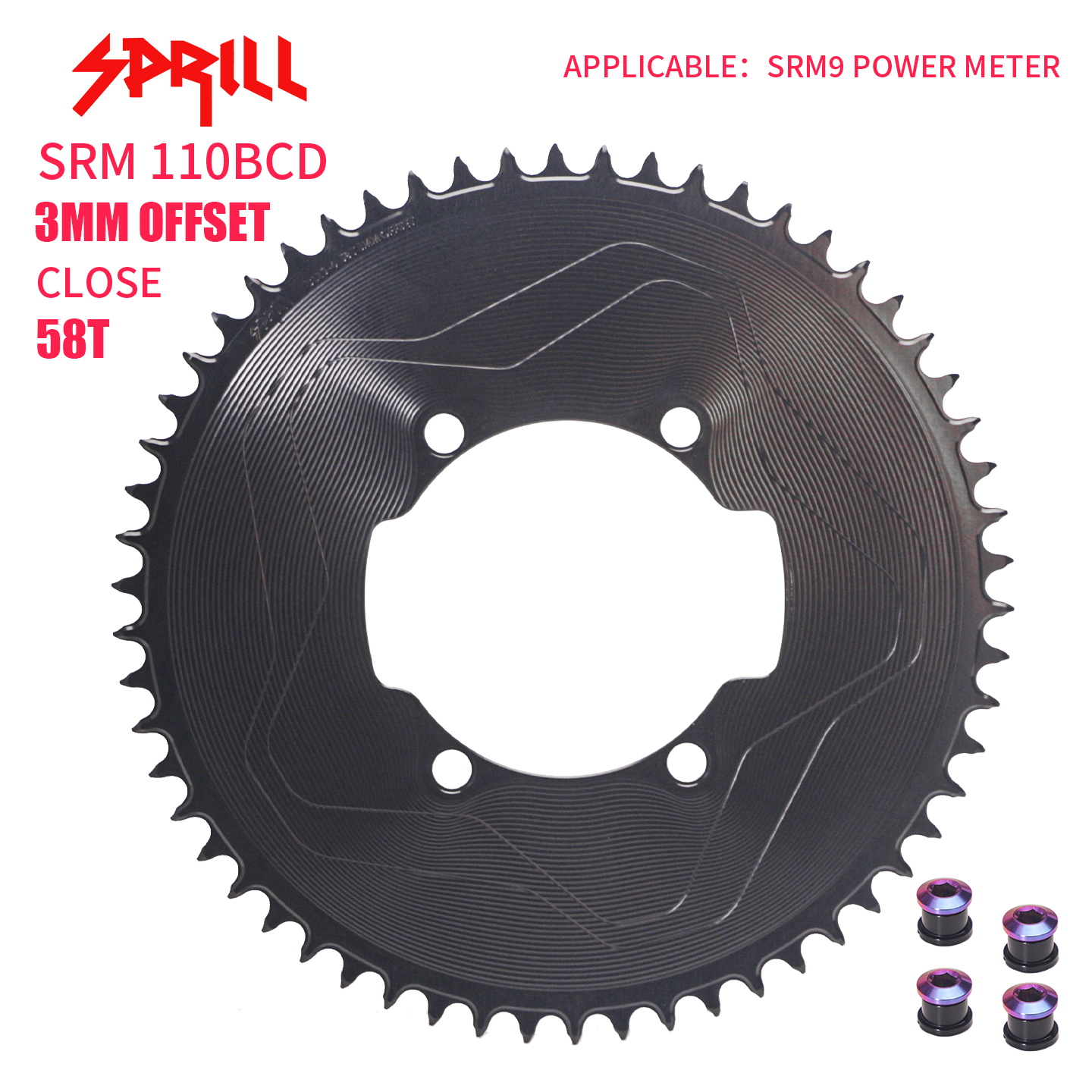

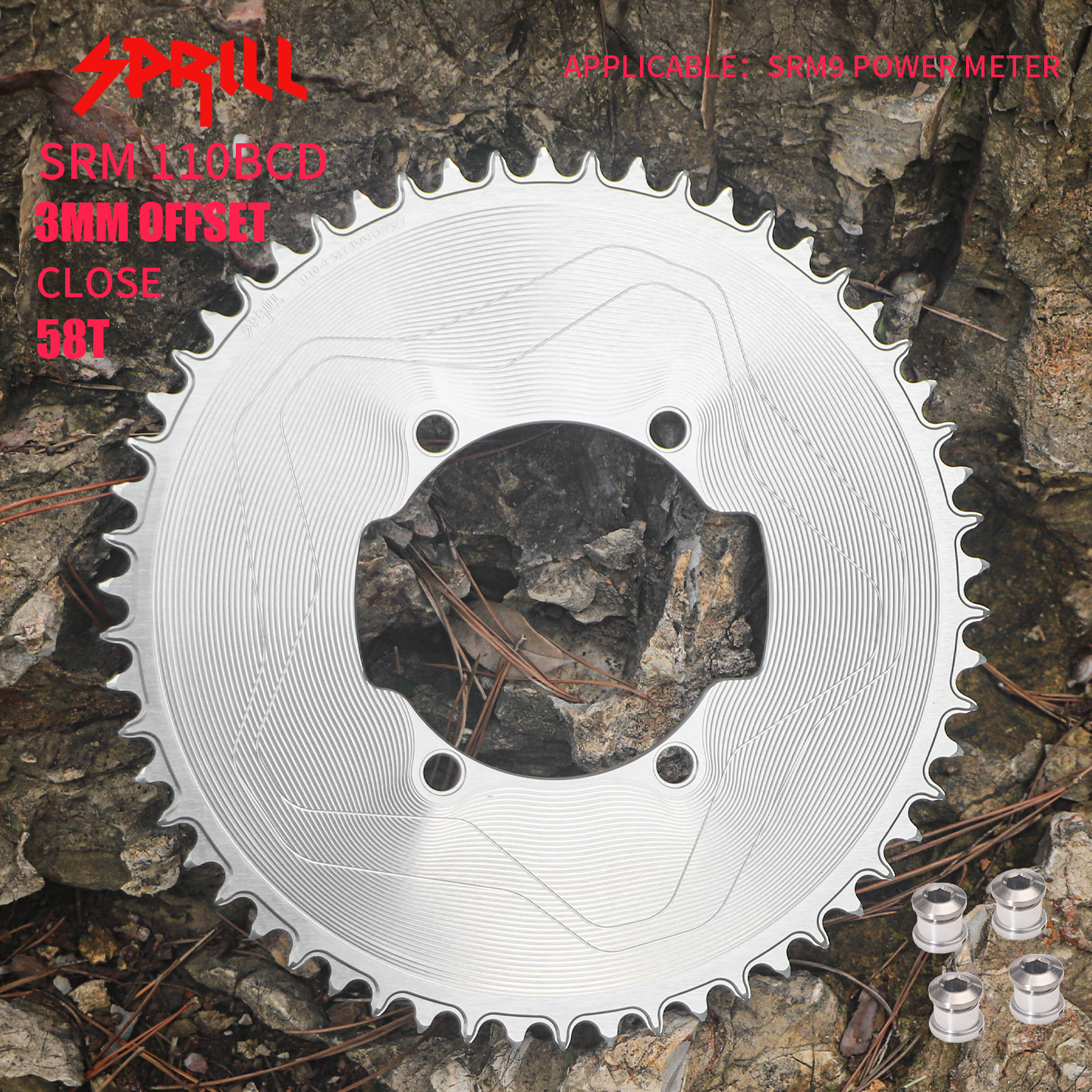

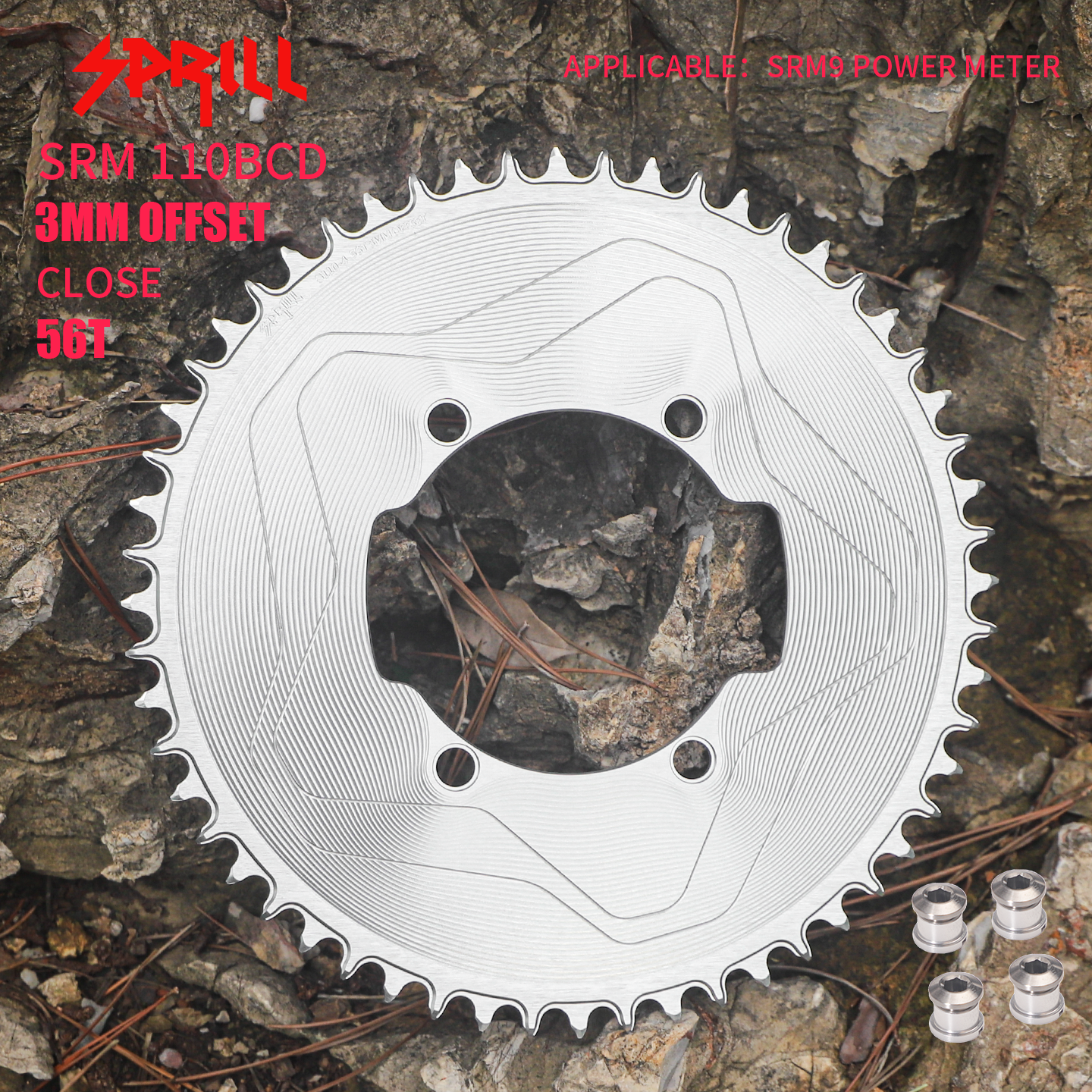

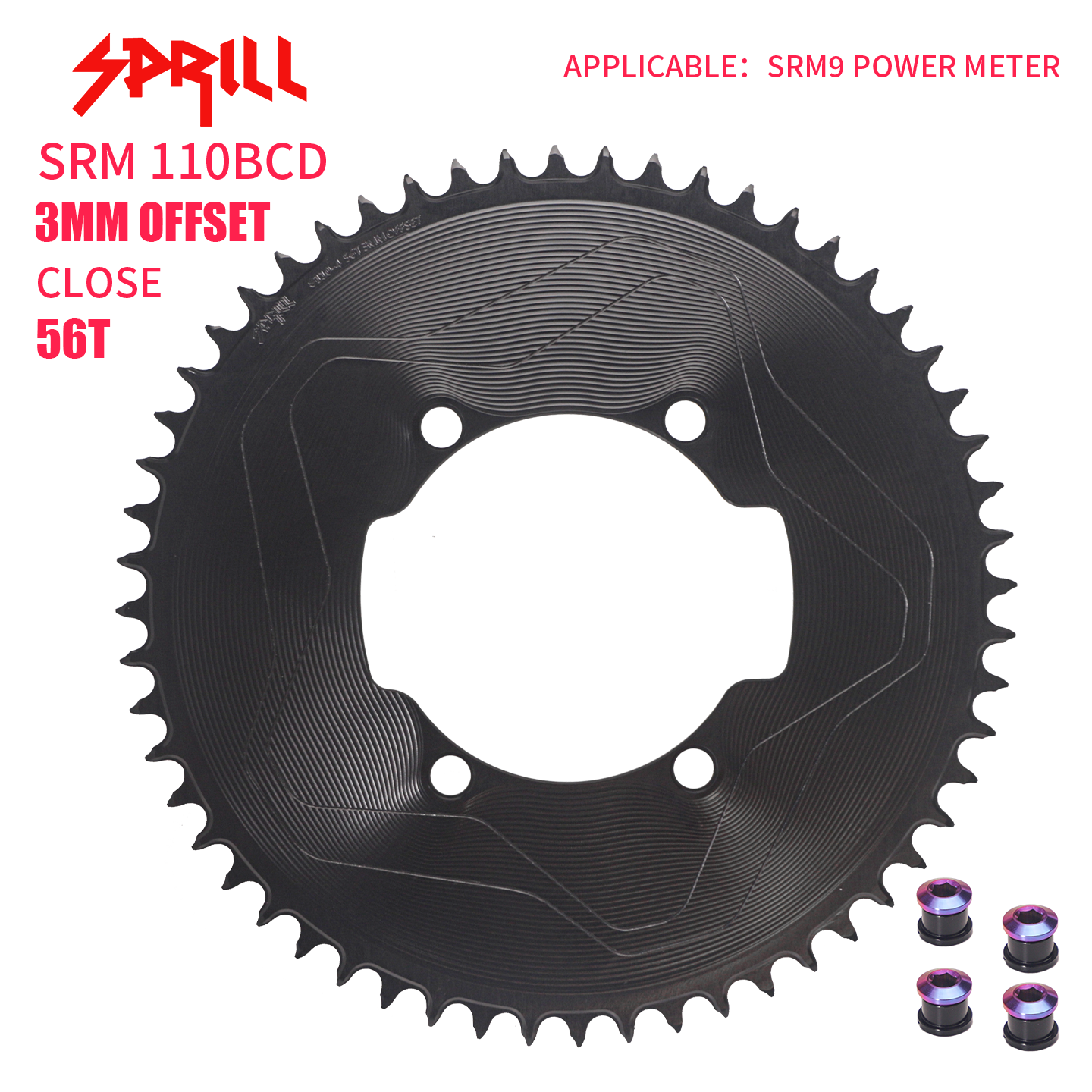

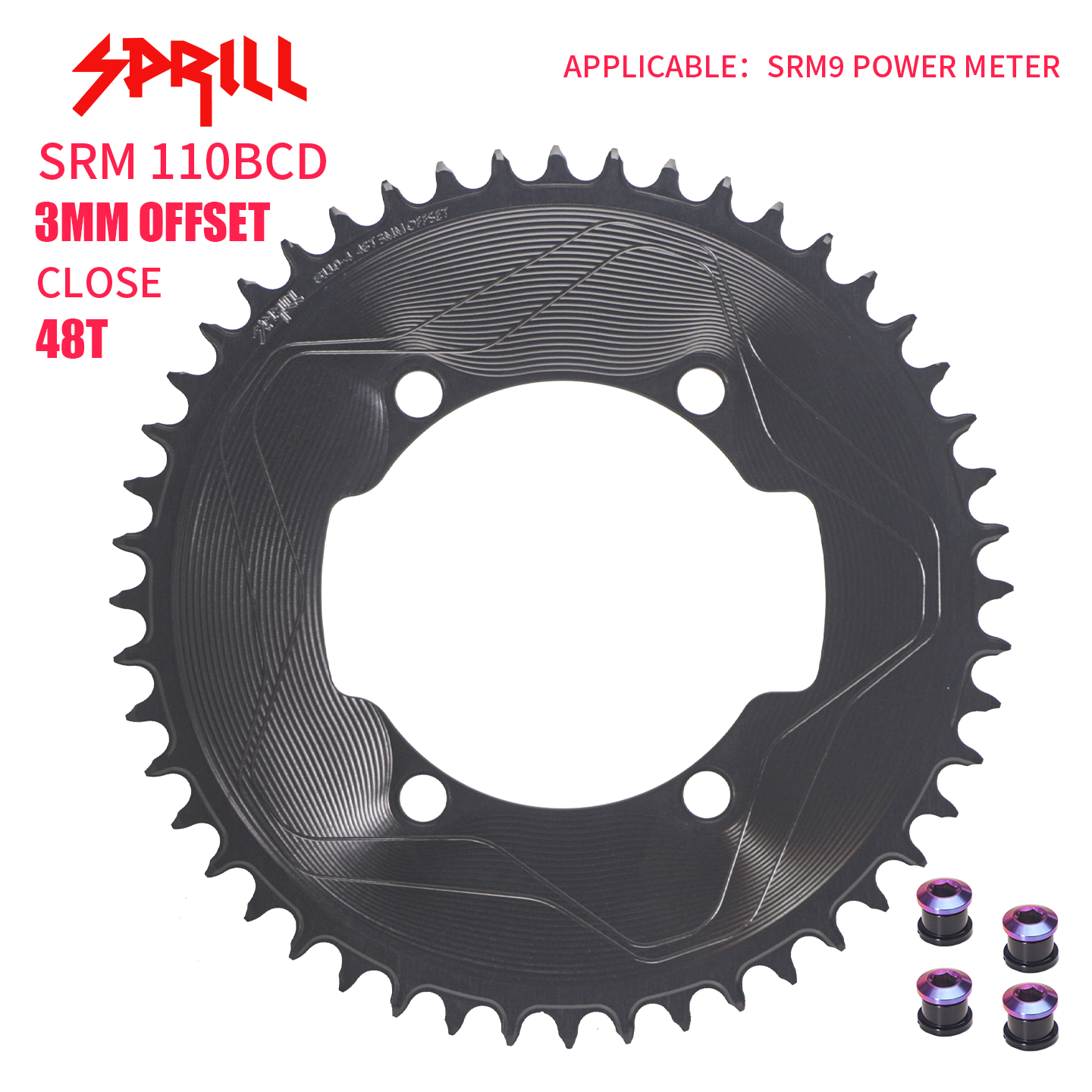

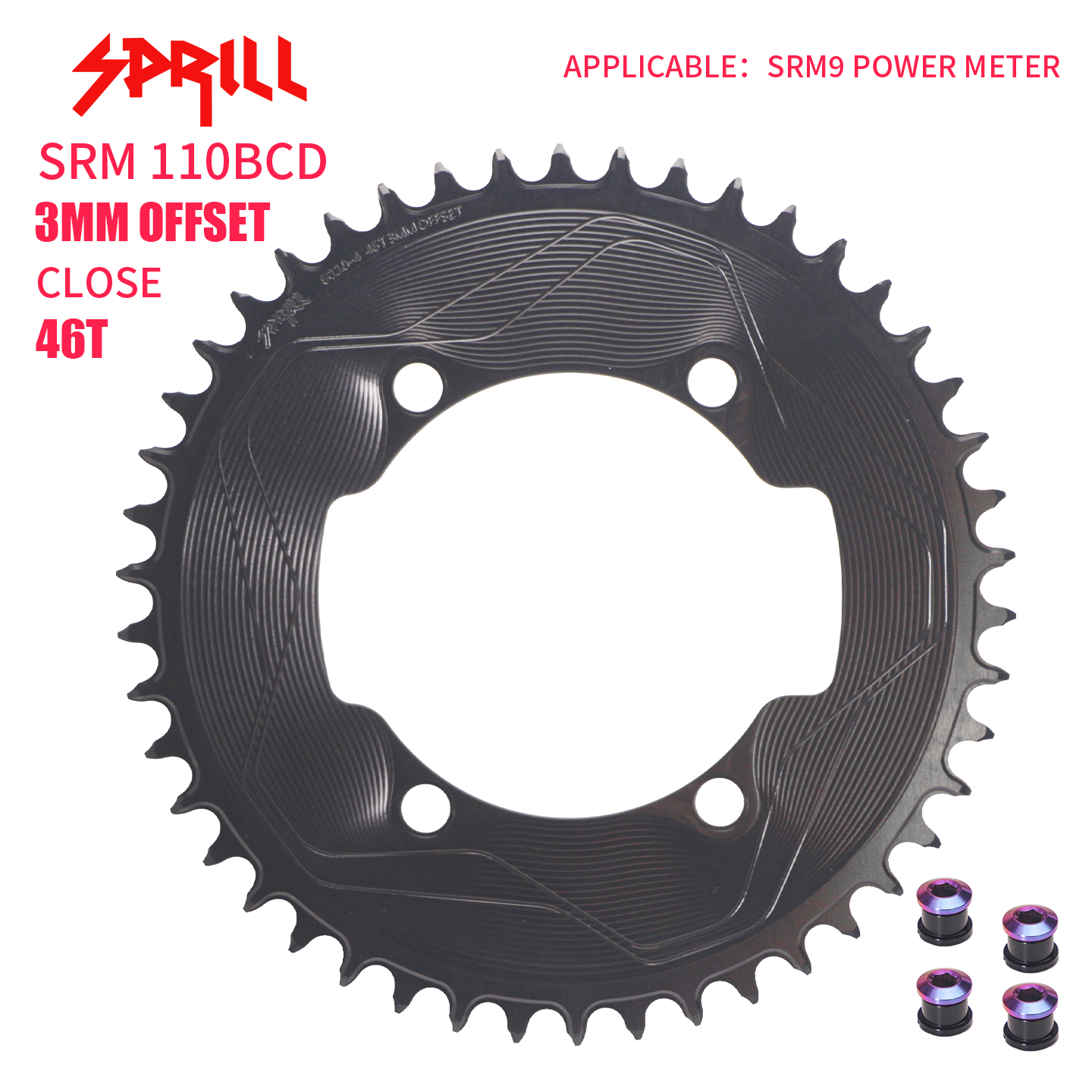

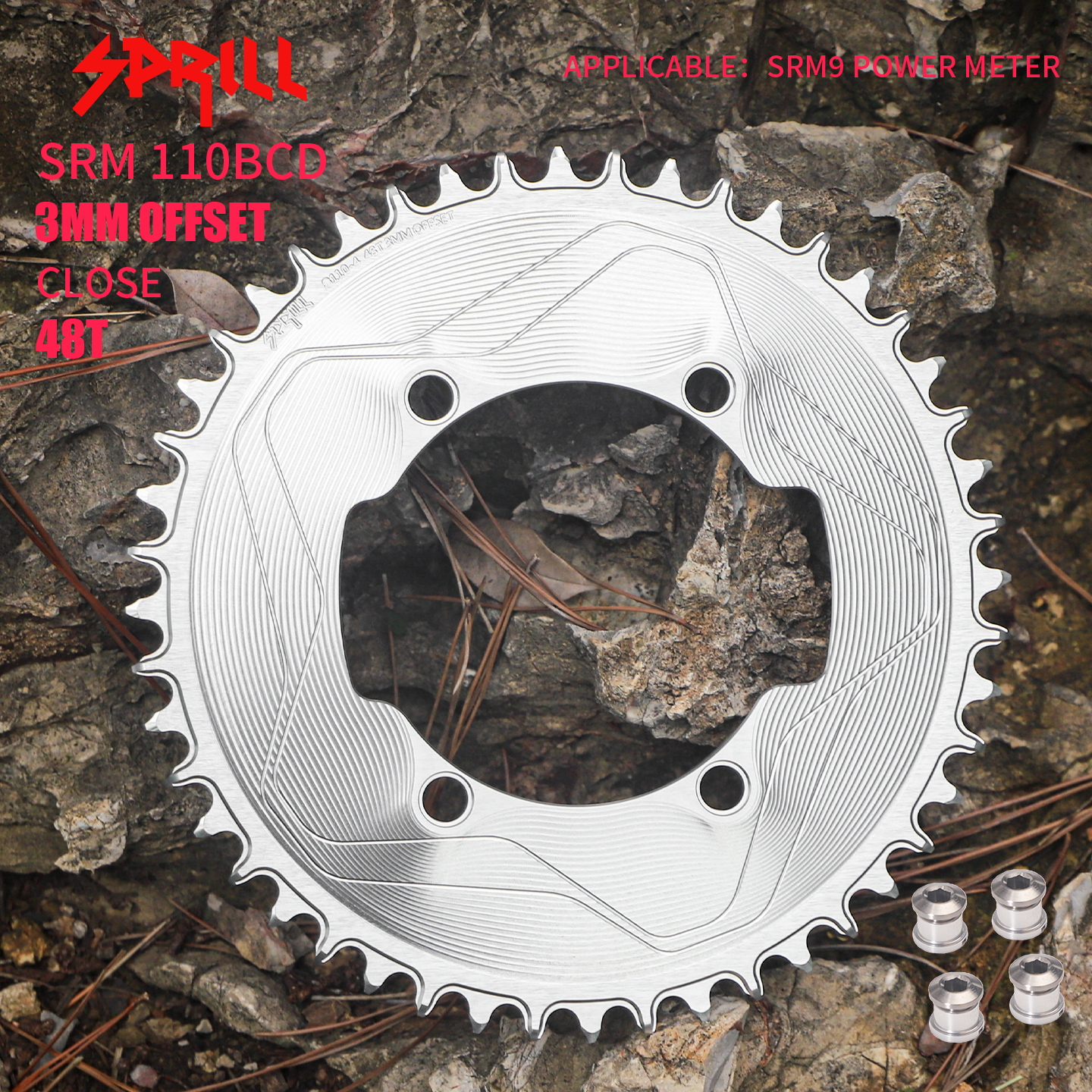

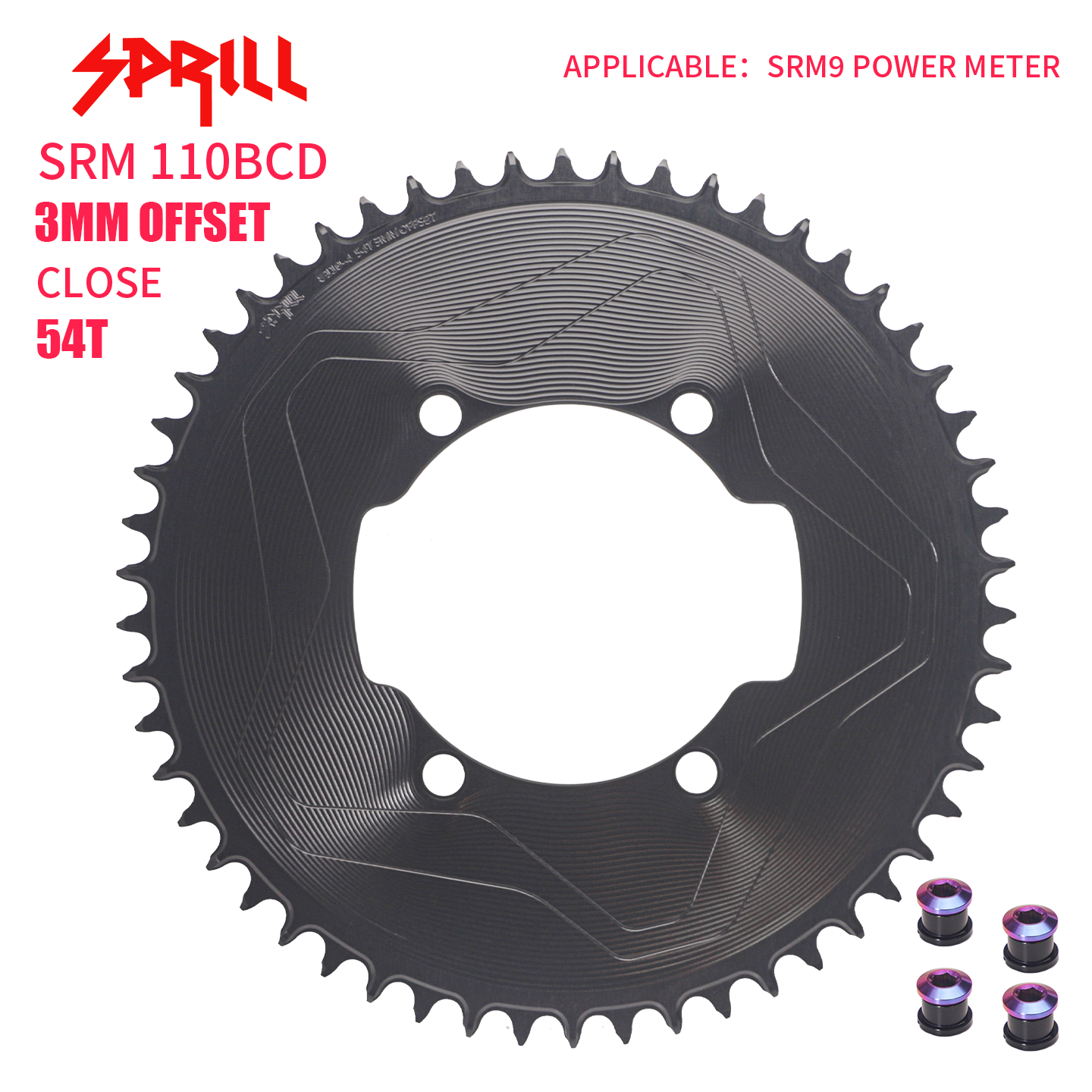

SRAM SRM7 SRM9 110BCD 3mm offset AERO Narrow Wide Chainring 46-58T

Model

 46T or 48T or 50T or 52T or 54T or 56T or 58T

Colour

Black or Silver

Made from

7075-T651 Aluminum Alloy

Offset

3mm (Closer to the frame)

Made with

CNC milling

Compatible cranksets

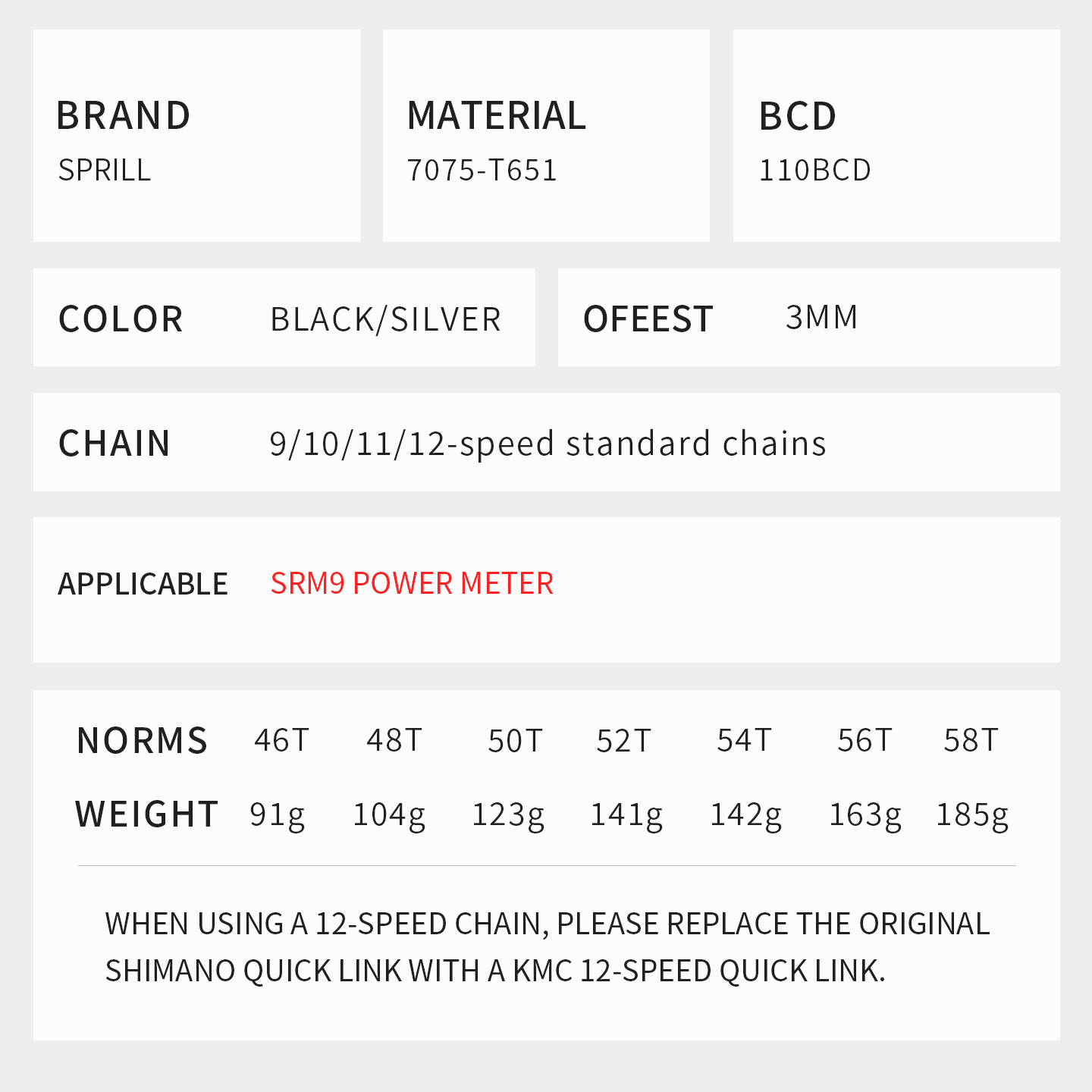

Weight, grams

 91 (46T), 104 (48T), 123 (50T), 141 (52T),  142 (54T), 163 (56T), 185 (58T)

Chain compatibility

Standard 9/10/11/12 speed

 Bicycle shop or dealer contact customer service

           PASS QUEST NARROW WIDE CHAINRING

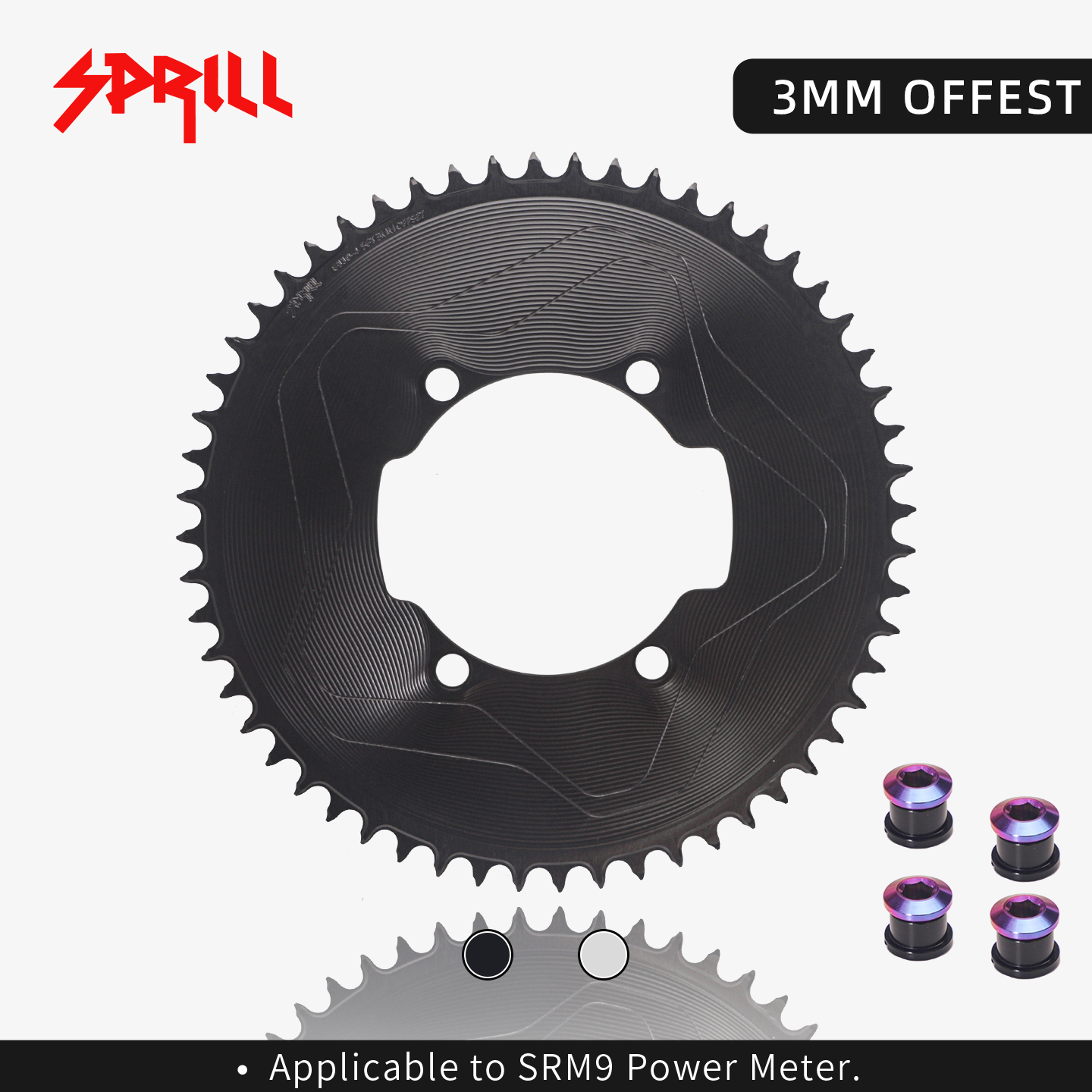

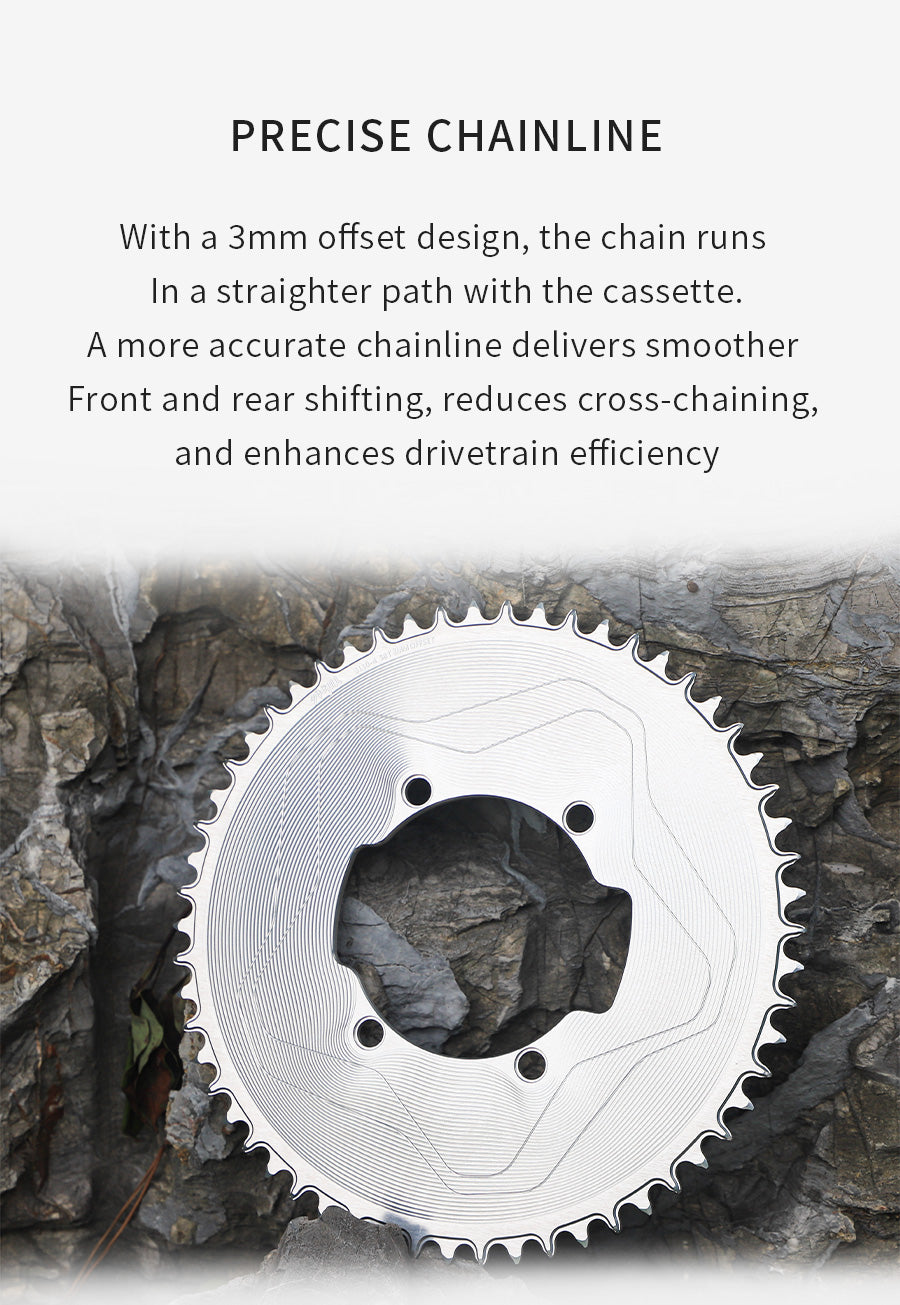

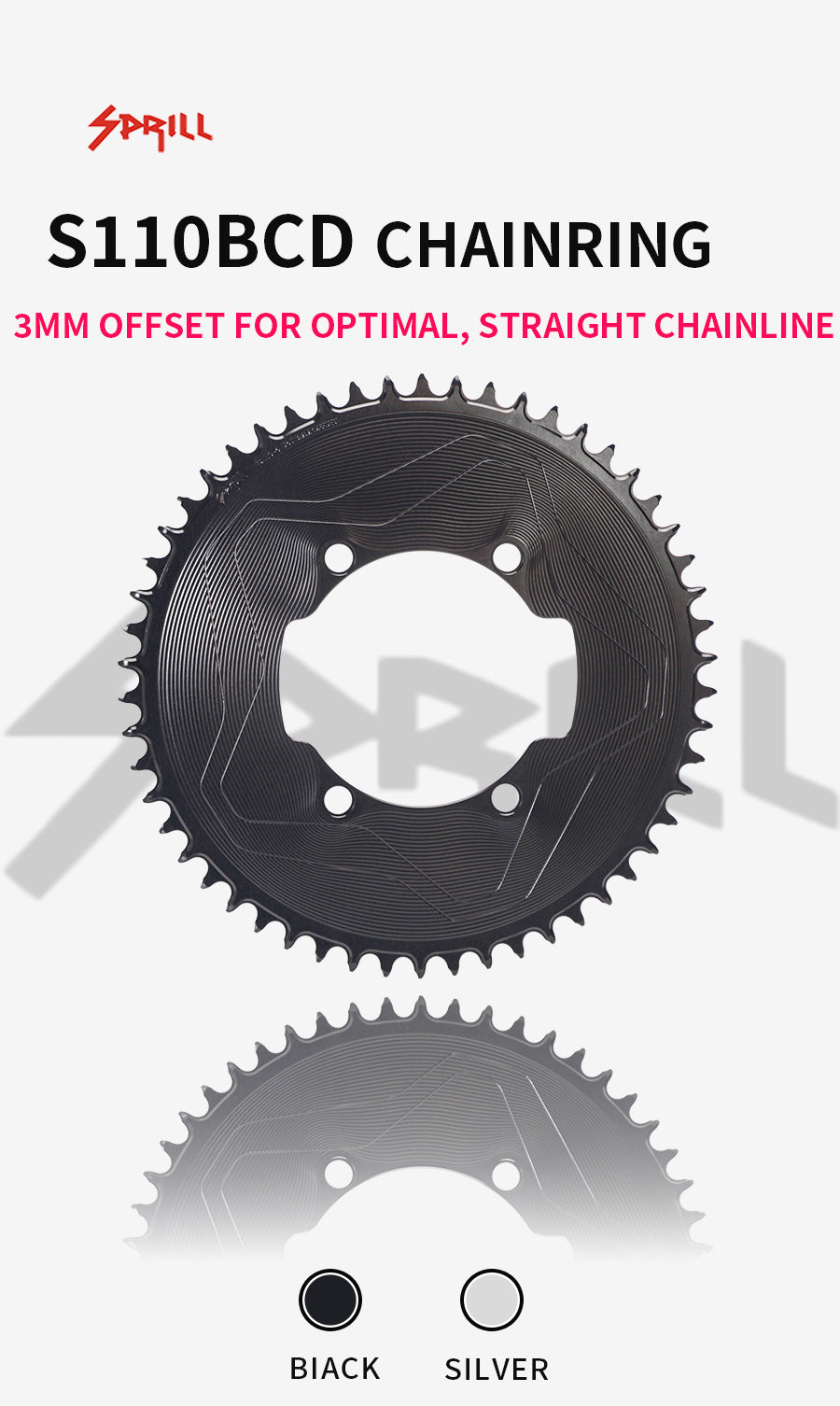

• With a 3mm offset design, the chain runsIn a straighter path with the cassette.A more accurate chainline delivers smootherFront and rear shifting, reduces cross-chainingand enhances drivetrain efficiency

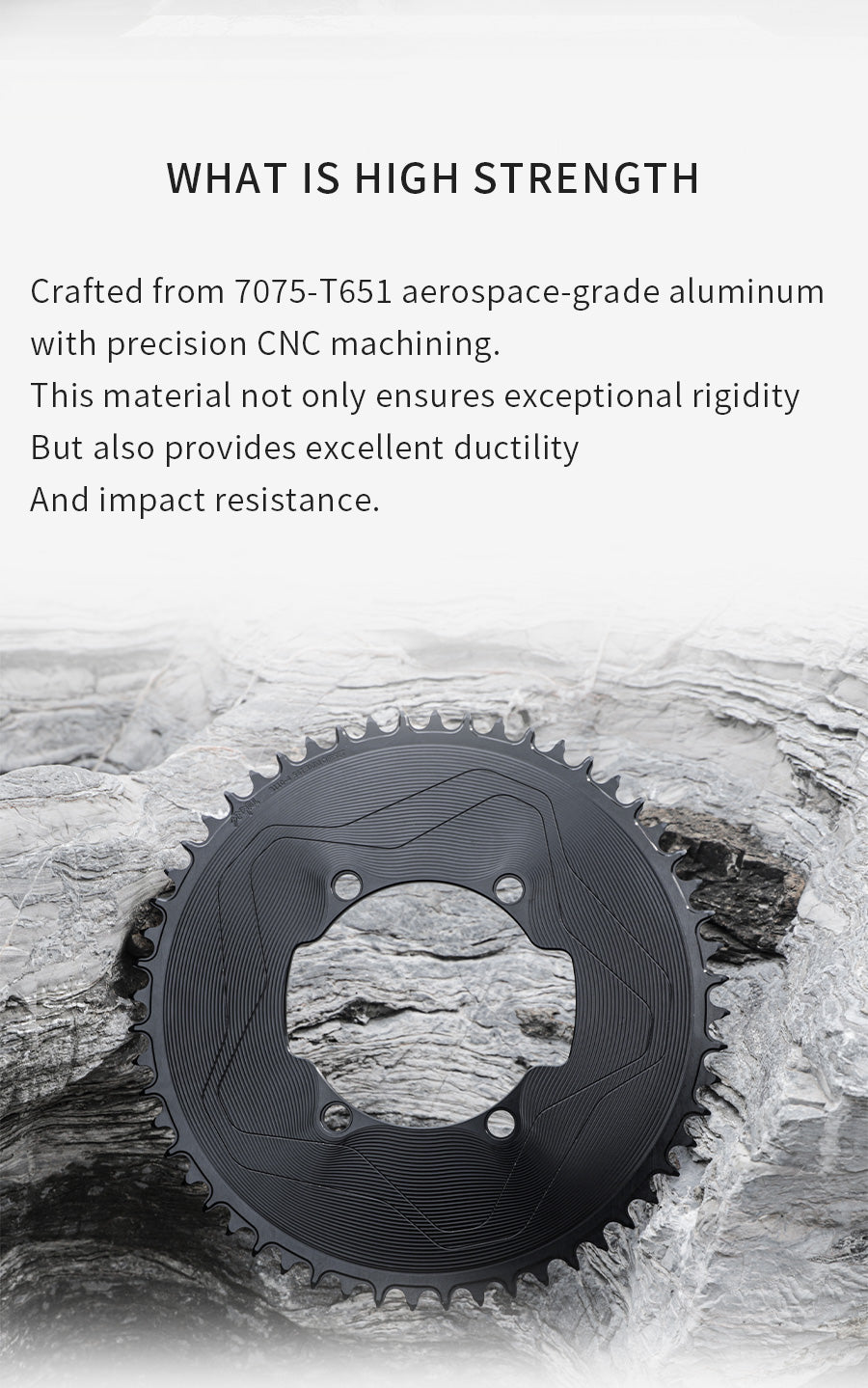

• Crafted from 7075-T651 aerospace-grade aluminumwith precision CNC machining.This material not only ensures exceptional rigidityBut also provides excellent ductilityAnd impact resistance.

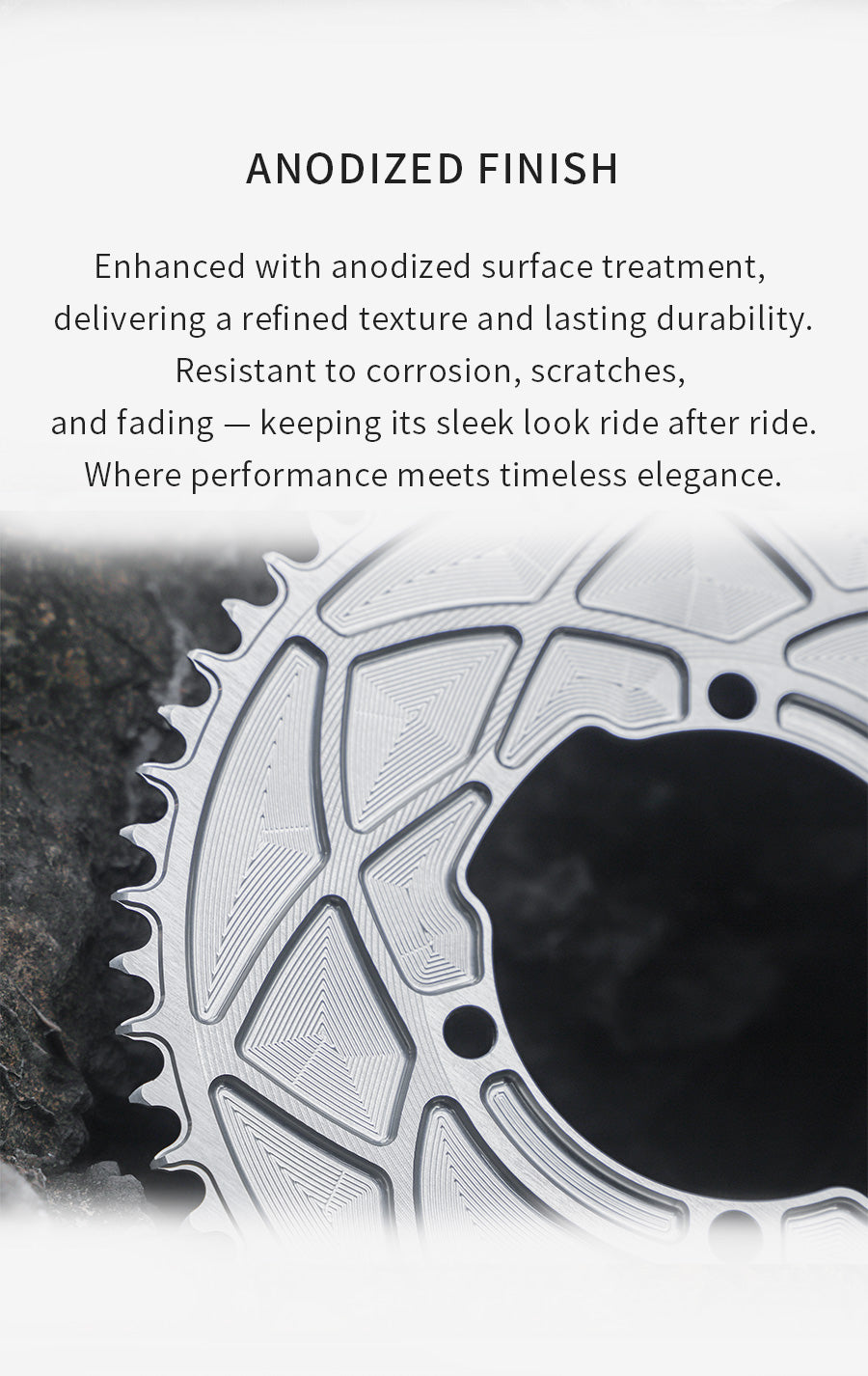

• Enhanced with anodized surface treatment,delivering a refined texture and lasting durability.Resistant to corrosion, scratches,and fading-keeping its sleek look ride after ride.Where performance meets timeless elegance.

• Compatible cranksets: SRM9 POWER METER

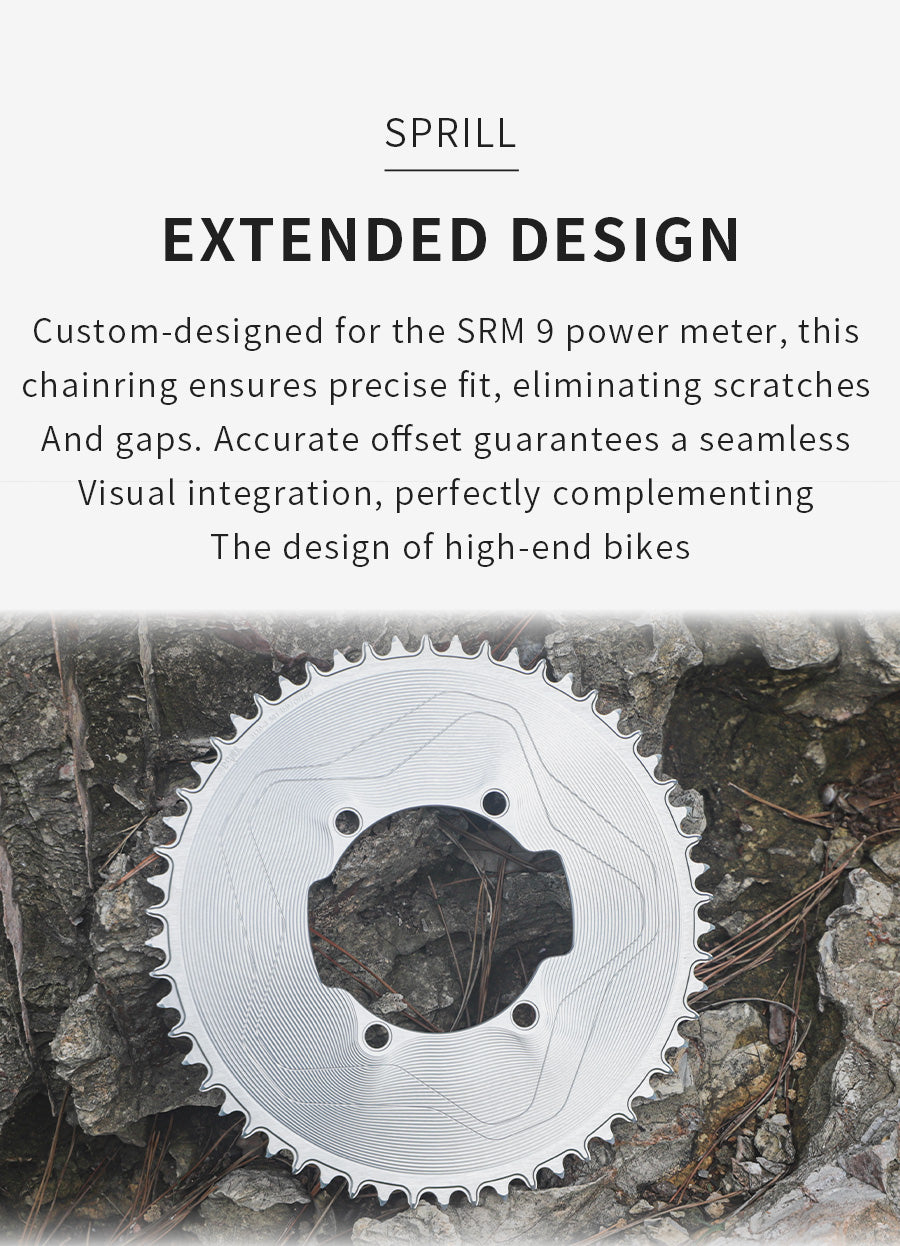

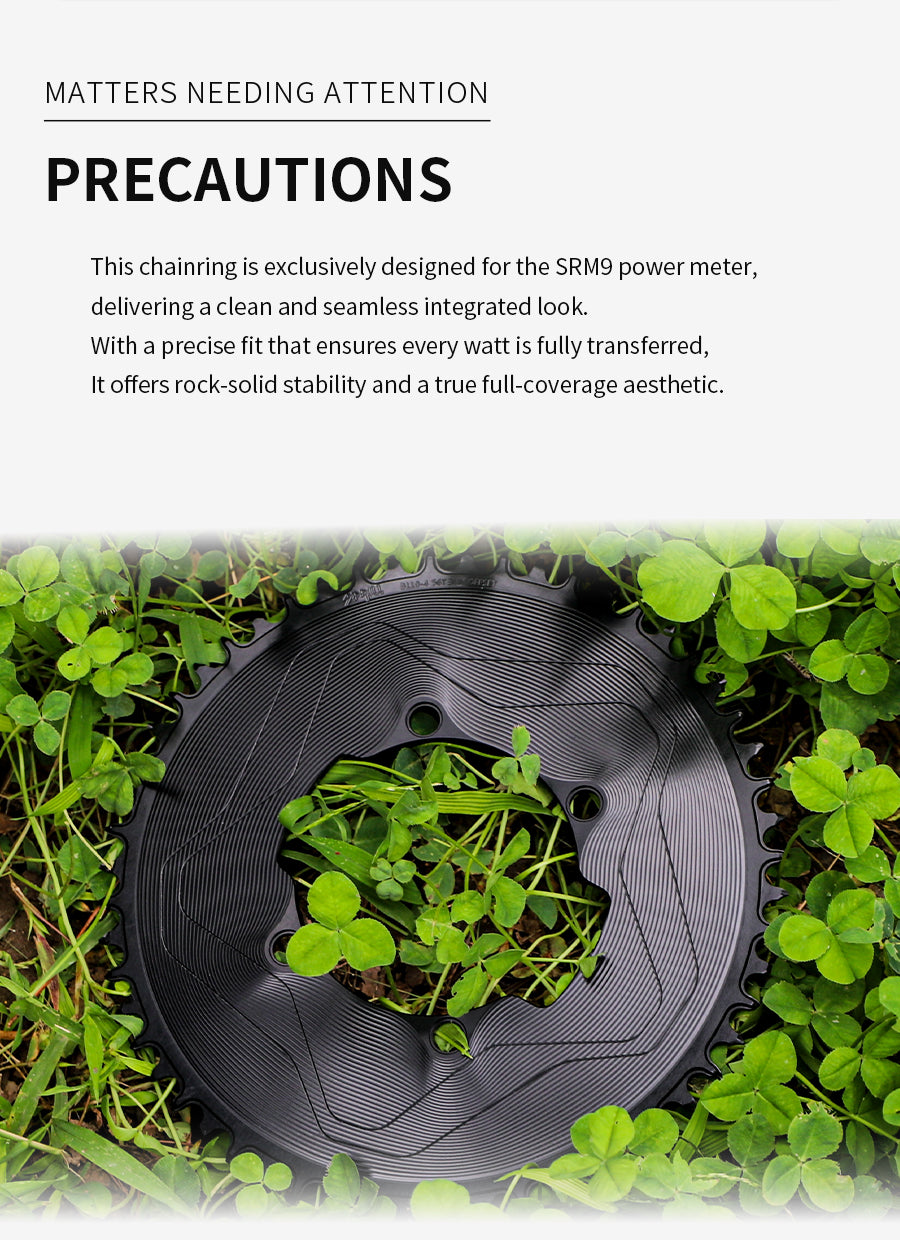

• This chainring is exclusively designed for the SRM7 or SRM9 power meter.delivering a clean and seamless integrated look.With a precise fit that ensures every watt is fully transferred,It offers rock-solid stability and a true full-coverage aesthetic

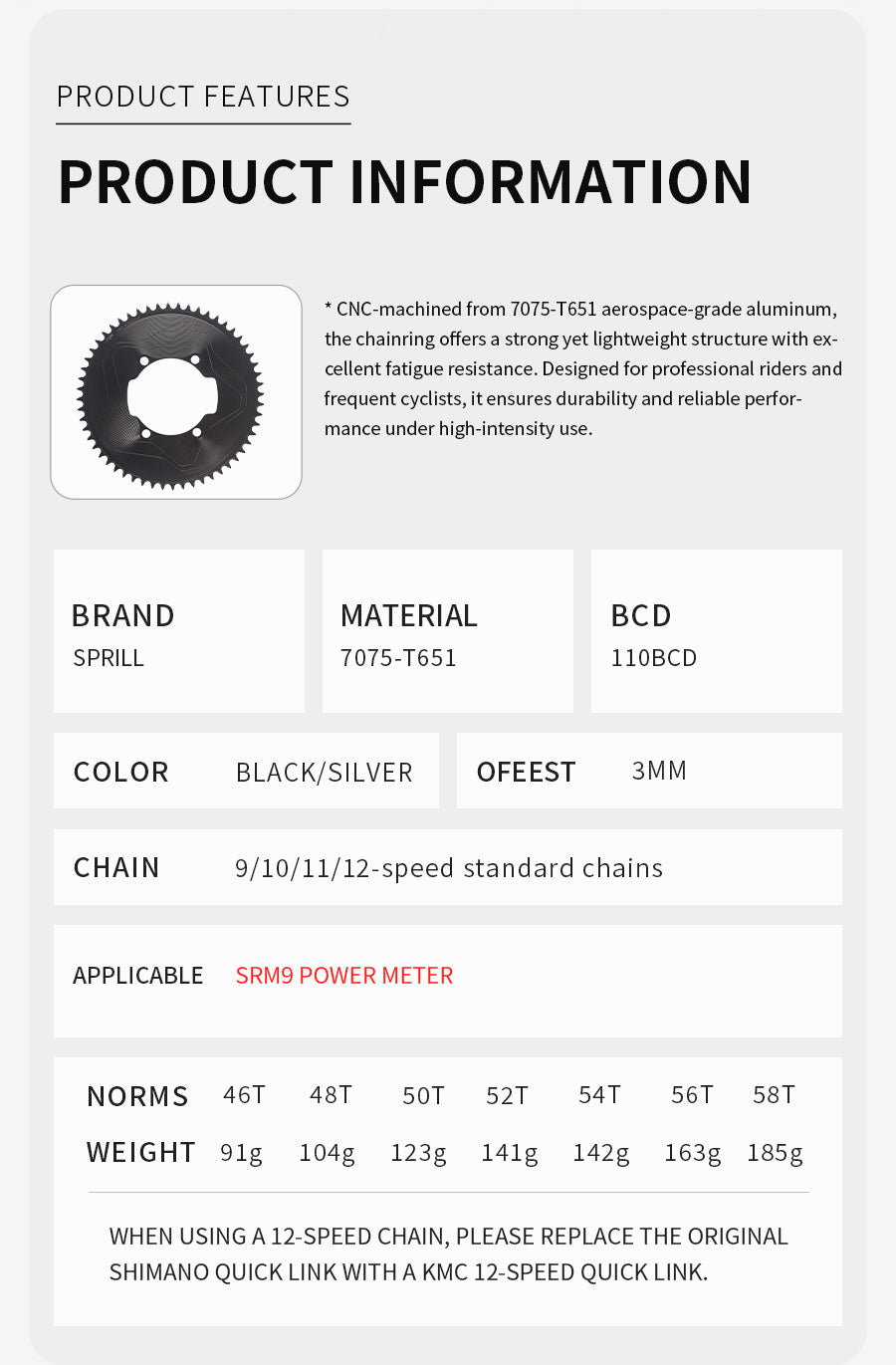

• CNC-machined from 7075-T651 aerospace-grade aluminumthe chainring offers a strong yet lightweight structure with ex-cellent fatigue resistance.Designed for professional riders andfrequent cyclists,itensures durability and reliable perfor-mance under high-intensity use.

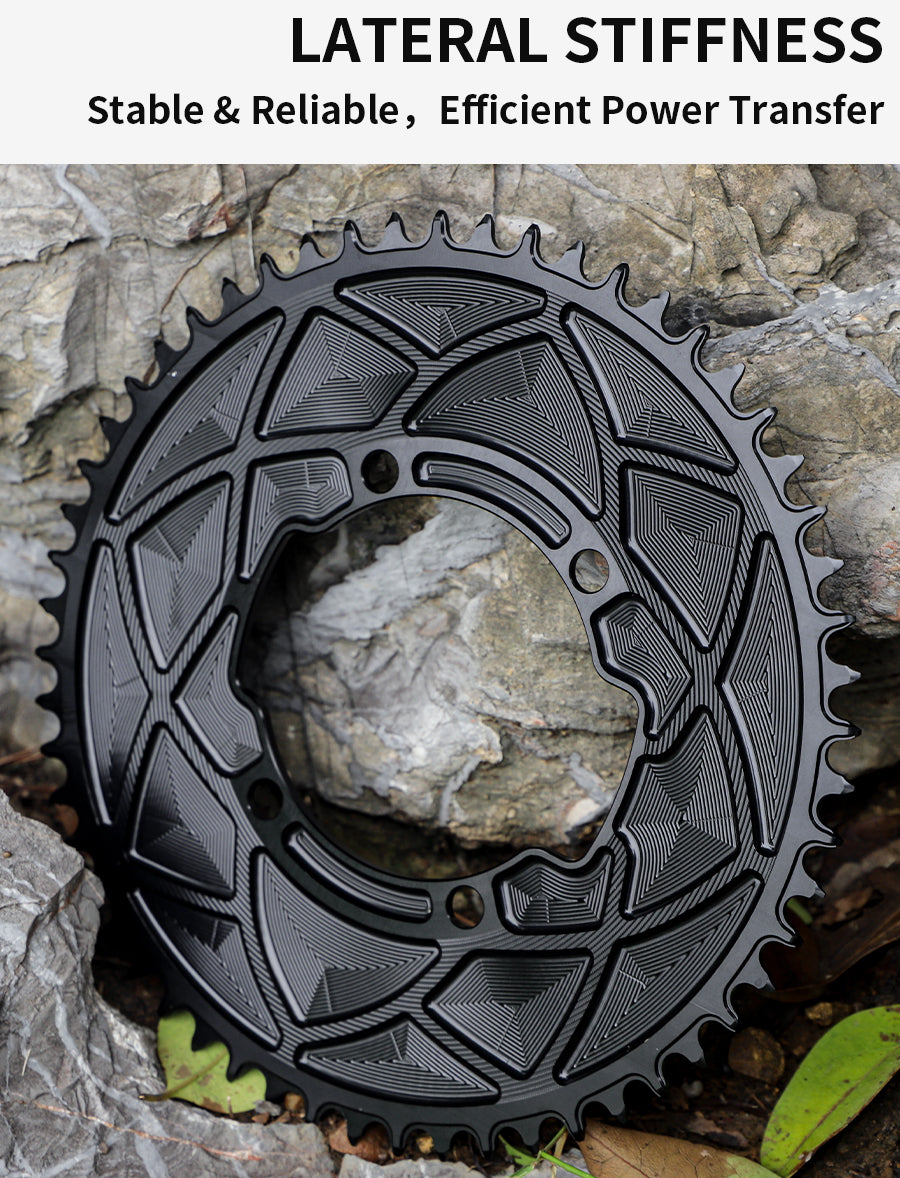

• Duringhigh-intensity riding, the chainring and crank mustwithstand not onlyvertical pedaling forcesbut also significant lateral stressfrom side-to-side sprintingPQ focuses on enhancing lateral stiffness,ensuringthe chainringremains stable under sprints andlong power outputs without flex or distortion.

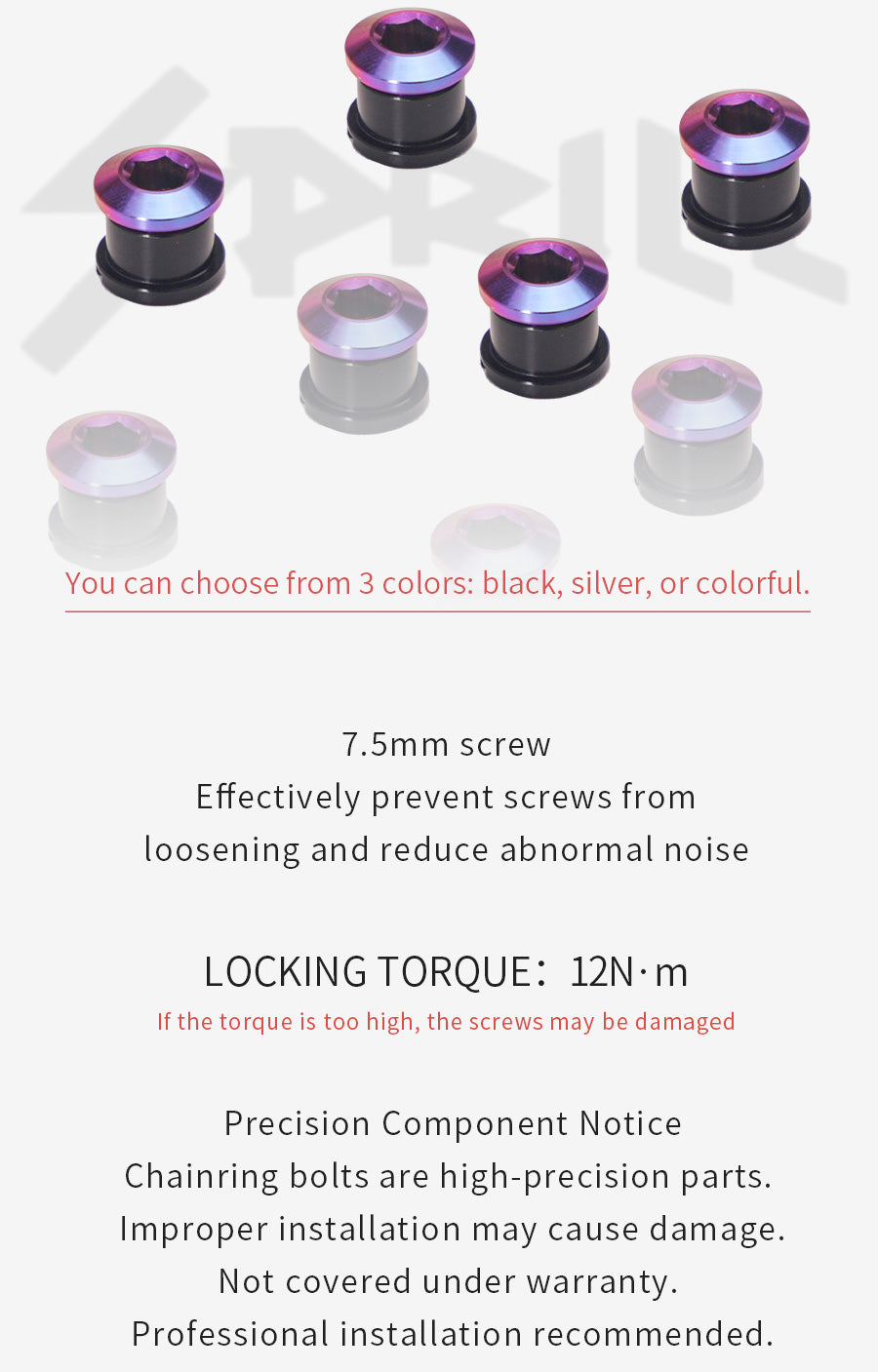

• The plate nails are fully upgraded:.Titanium alloy screws + 7075-T651 nutsMore wear-resistant while alsoreducing the weight of the plate nails

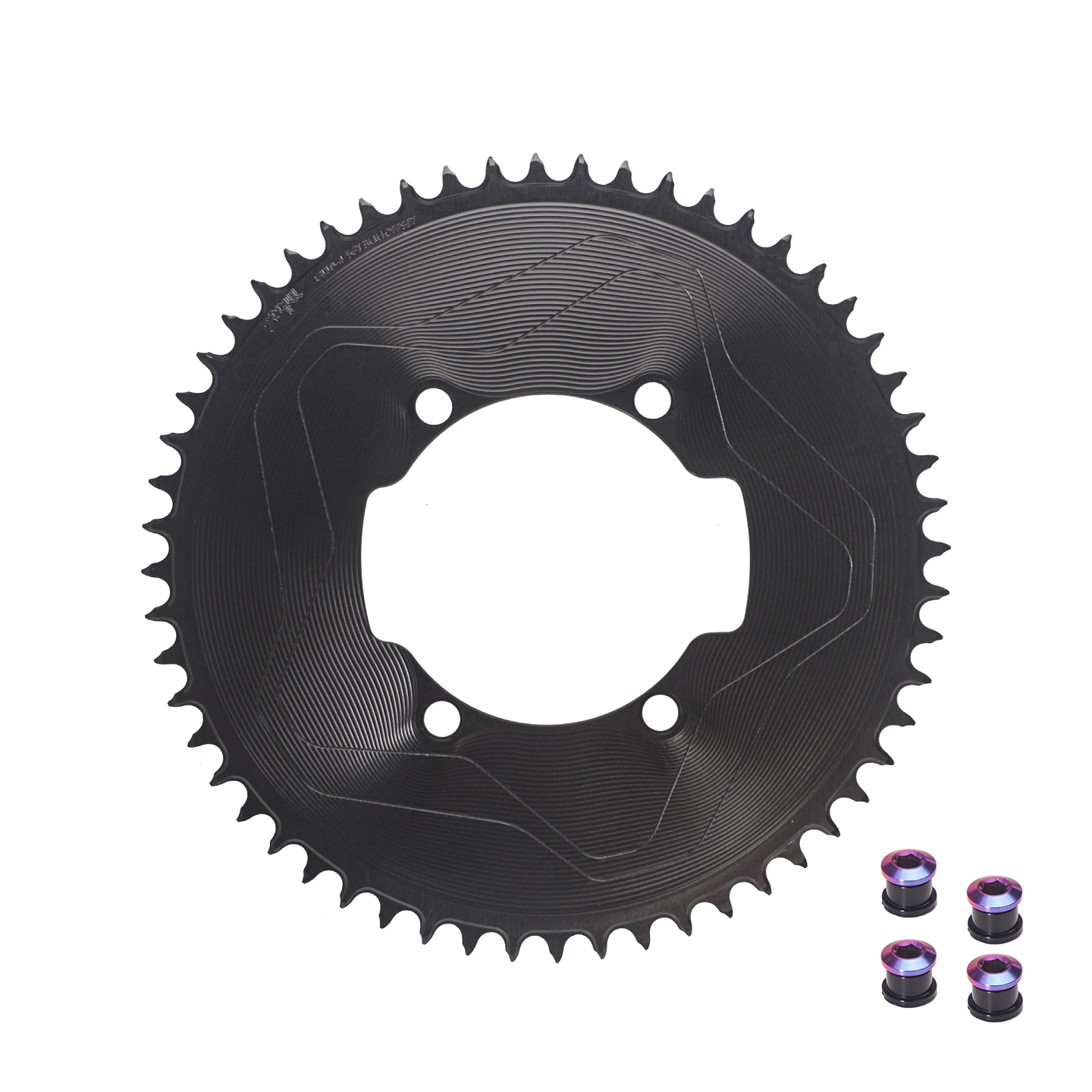

• You can choose from 3 colors: black, silver, or colorful
• LOCKING TOROUE:12N·m
  If the torque is too high, the screws may be damaged
• When using a 12-speed chain, replace the original SHIMANO quick link with a KMC 12-speed quick link.
• Narrow wide tooth, it design for 1x speed only, can not use as 2x speed, not support front shifting derailleur.
• Precision Component NoticeChainring bolts are high-precision parts.Improperinstallation may cause damage.
  Not covered under warranty.
  Professionalinstallationrecommended.
