PASS QUEST-SPRILL

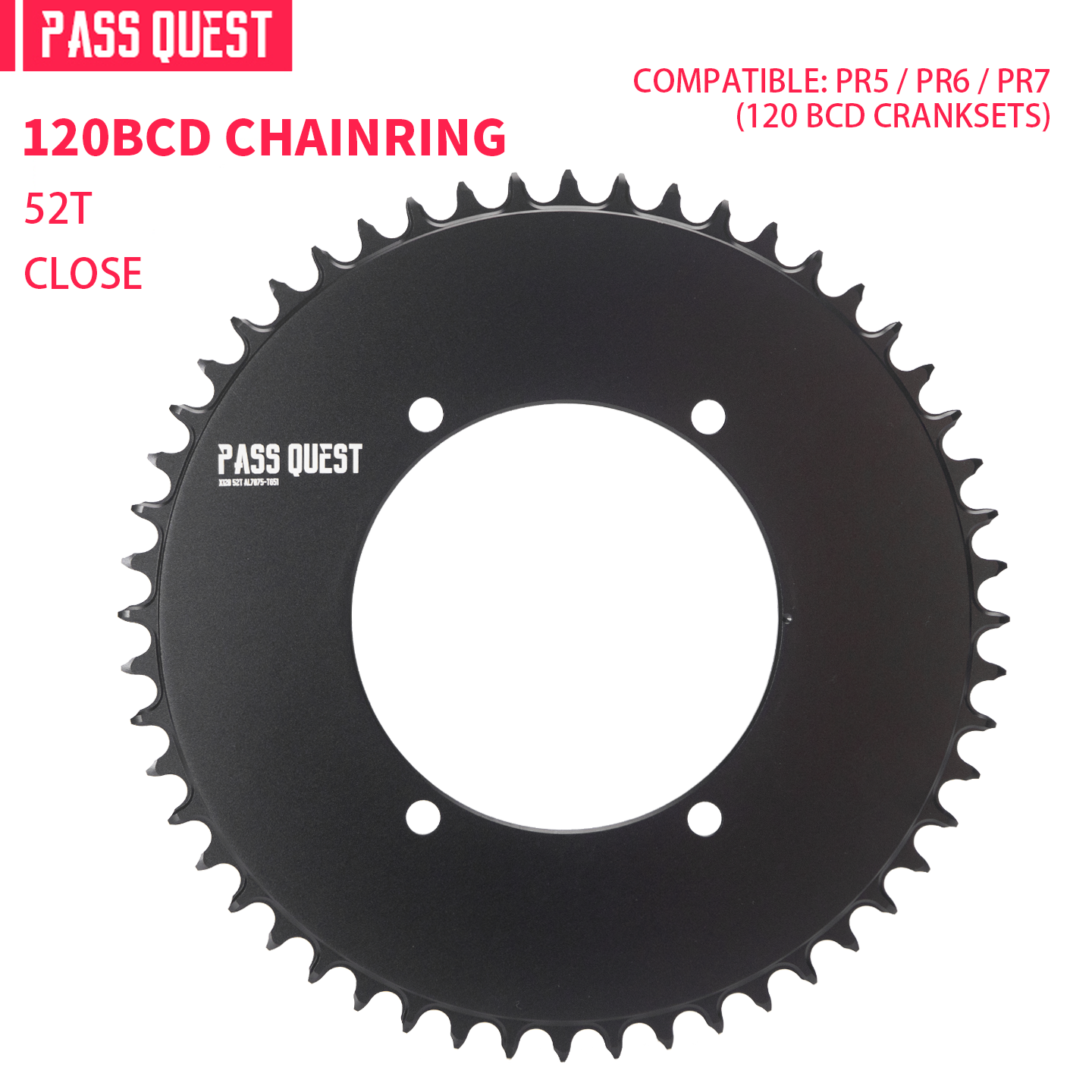

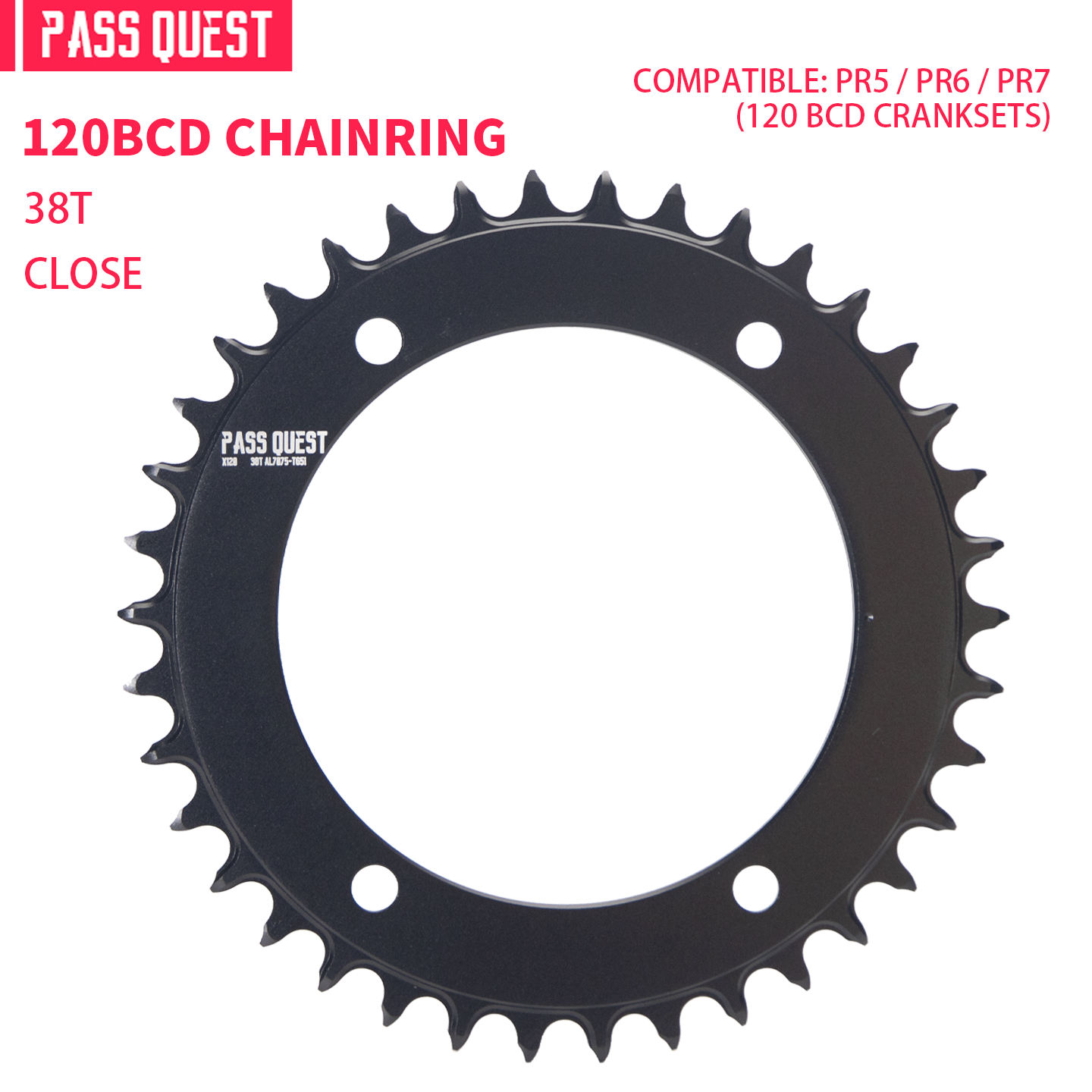

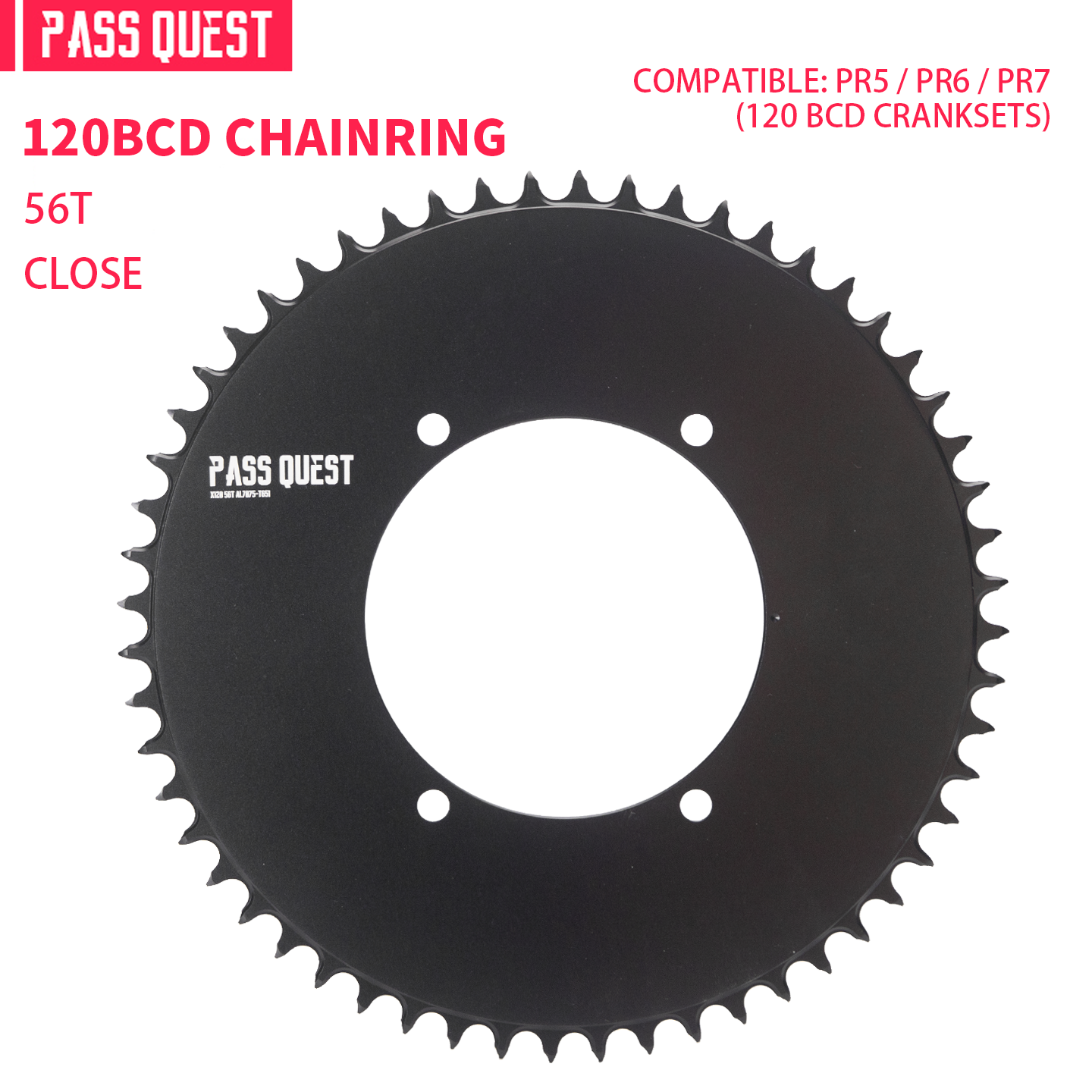

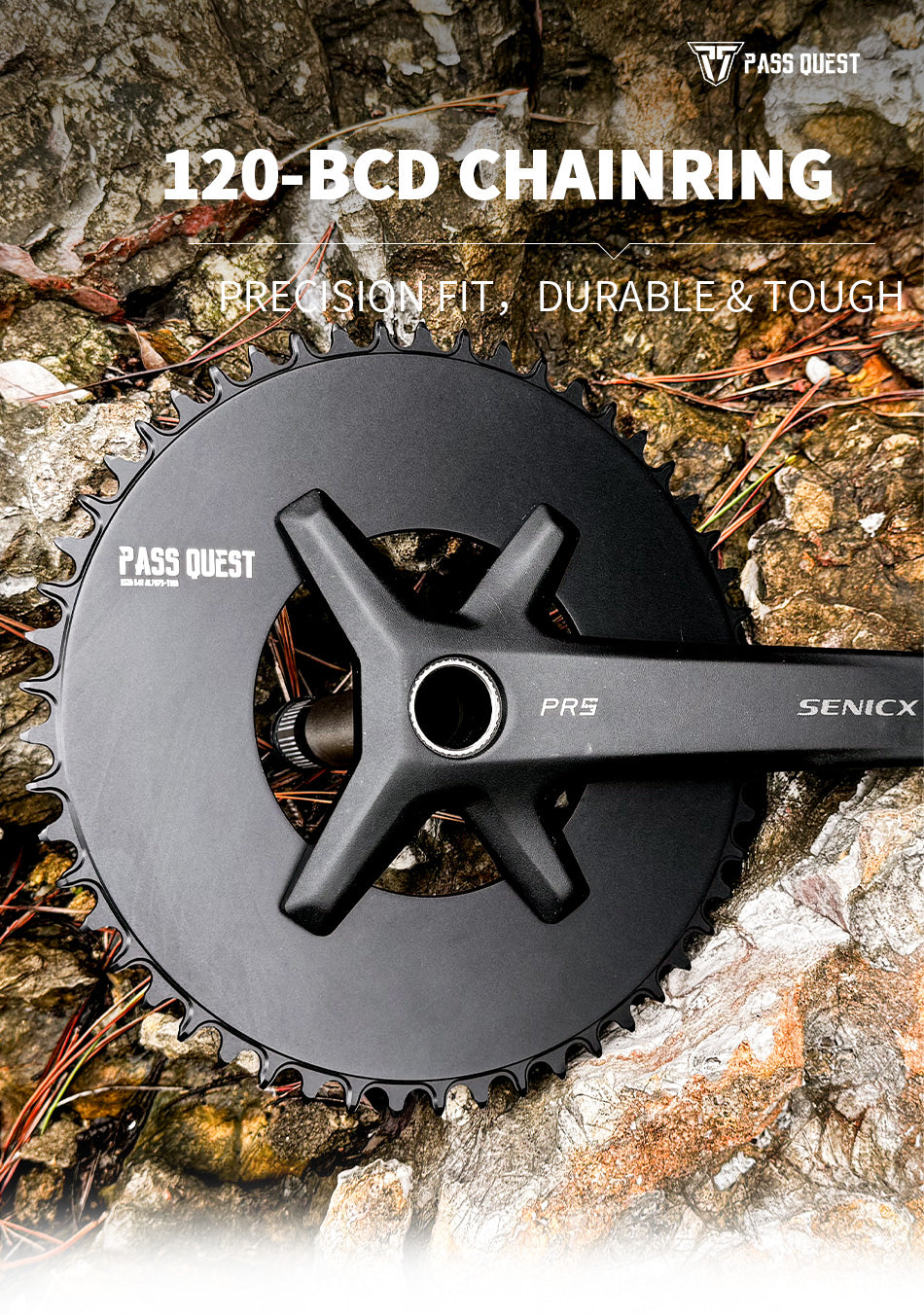

X120BCD (4-bolt AERO) for SENICX PR5 round narrow wide sprockets 38-58T

X120BCD (4-bolt AERO) for SENICX PR5 round narrow wide sprockets 38-58T

$42.00 USD
$42.00 USD
Sale Sold out
Select Size

Model

38T or 40T or 42T or 44T or 46T or 48T or 50T or 52T or 54T or 56T or 58T

Colour

Black

Made from

7075-T651 Aluminum Alloy

Surface coating

Anodizing

Made with


Timing 108° after TDC (top dead center)

Chainring shape

Round

Compatible cranksets

 PR5/PR6/PR7series cranksets (120 BCD)

Weight, grams

60 (38T), 70 (40T), 86 (42T), 100 (44T), 112 (46T), 123 (48T), 134 (50T), 149 (52T), 163 (54T), 180 (56T), 193 (58T)

(Due to different measurement methods
any weight difference within 5% is within a reasonable range)

Chain compatibility

Standard 9/10/11/12 speed regular chain

 Support paying an extra $10 to customize the same silver color

 Bicycle shop or dealer contact customer service

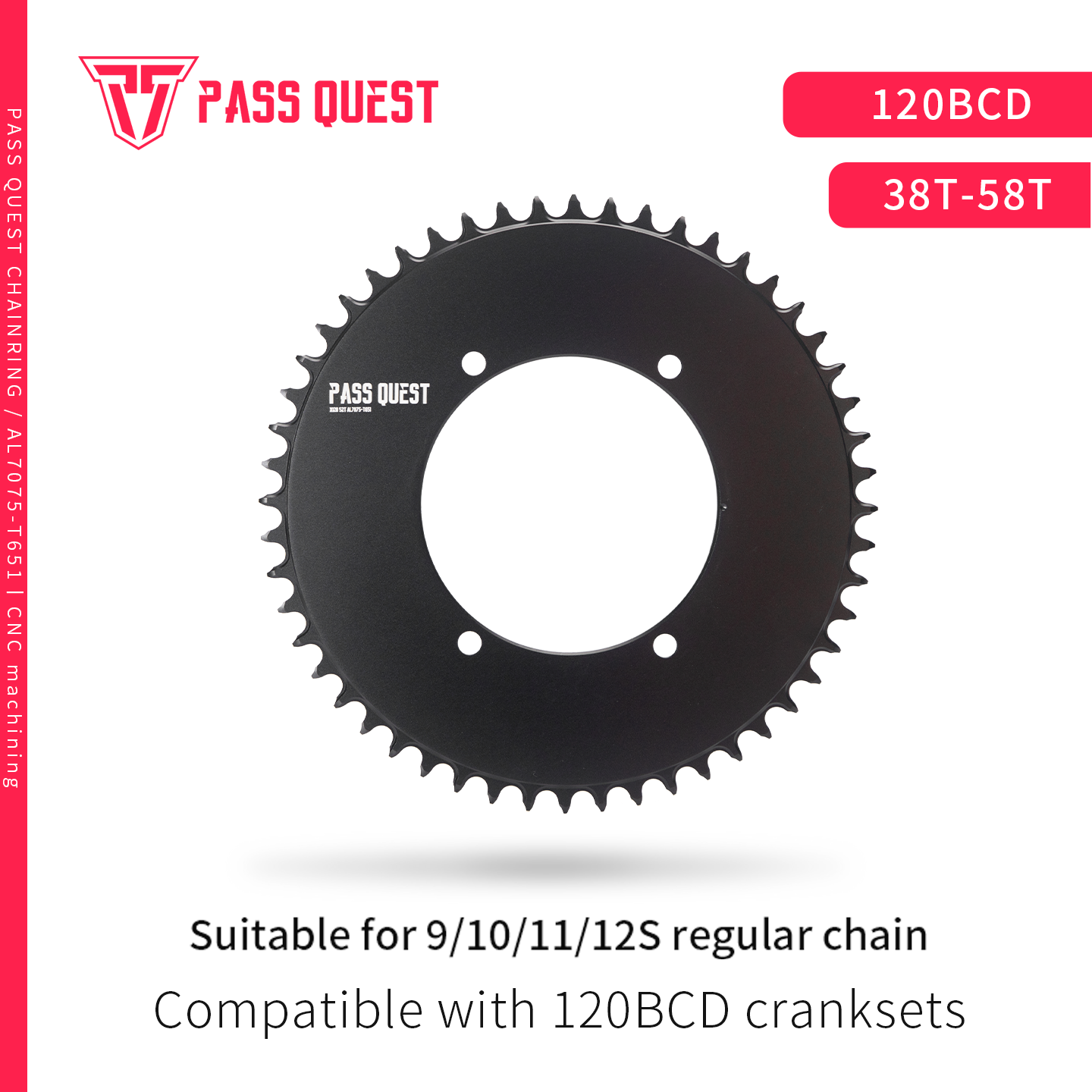

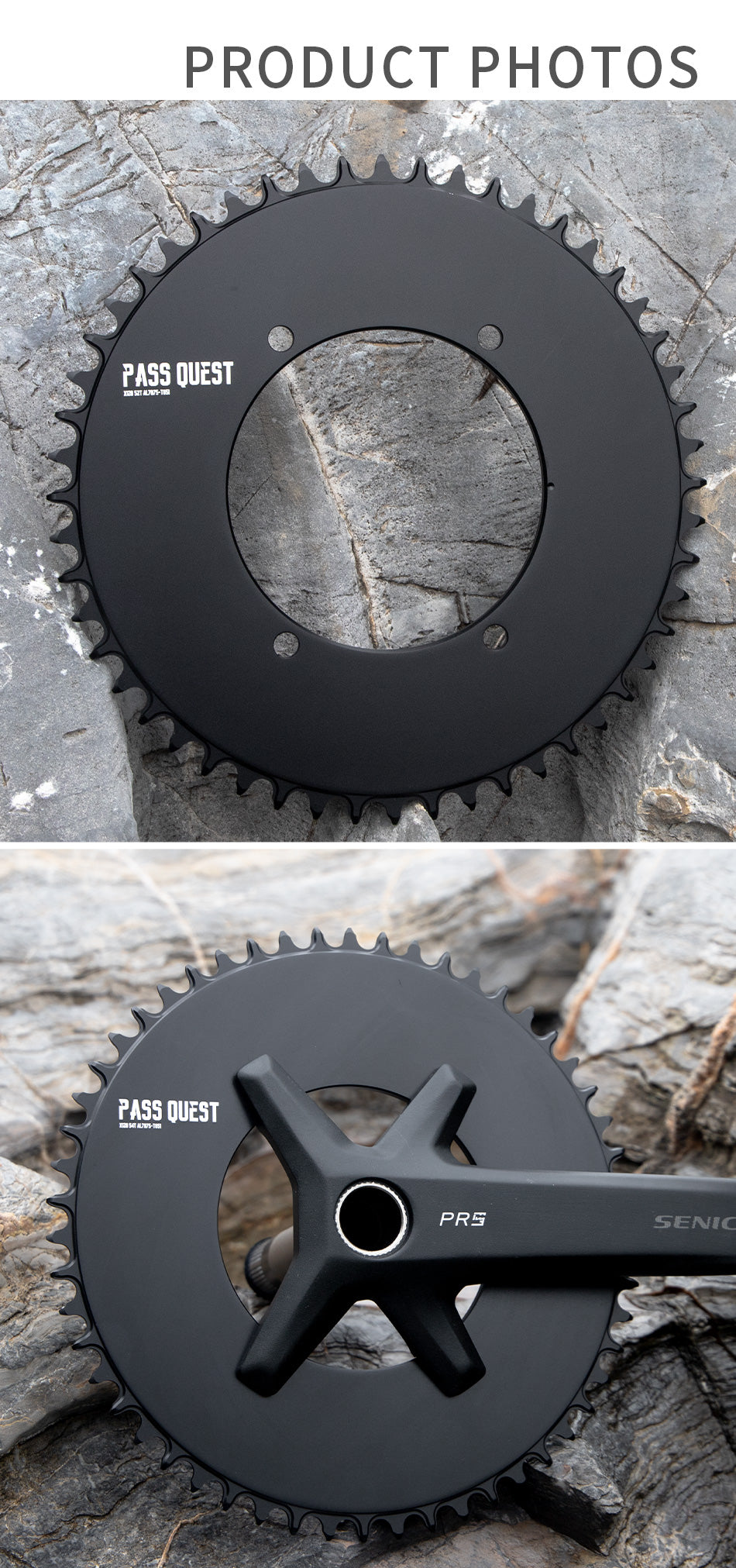

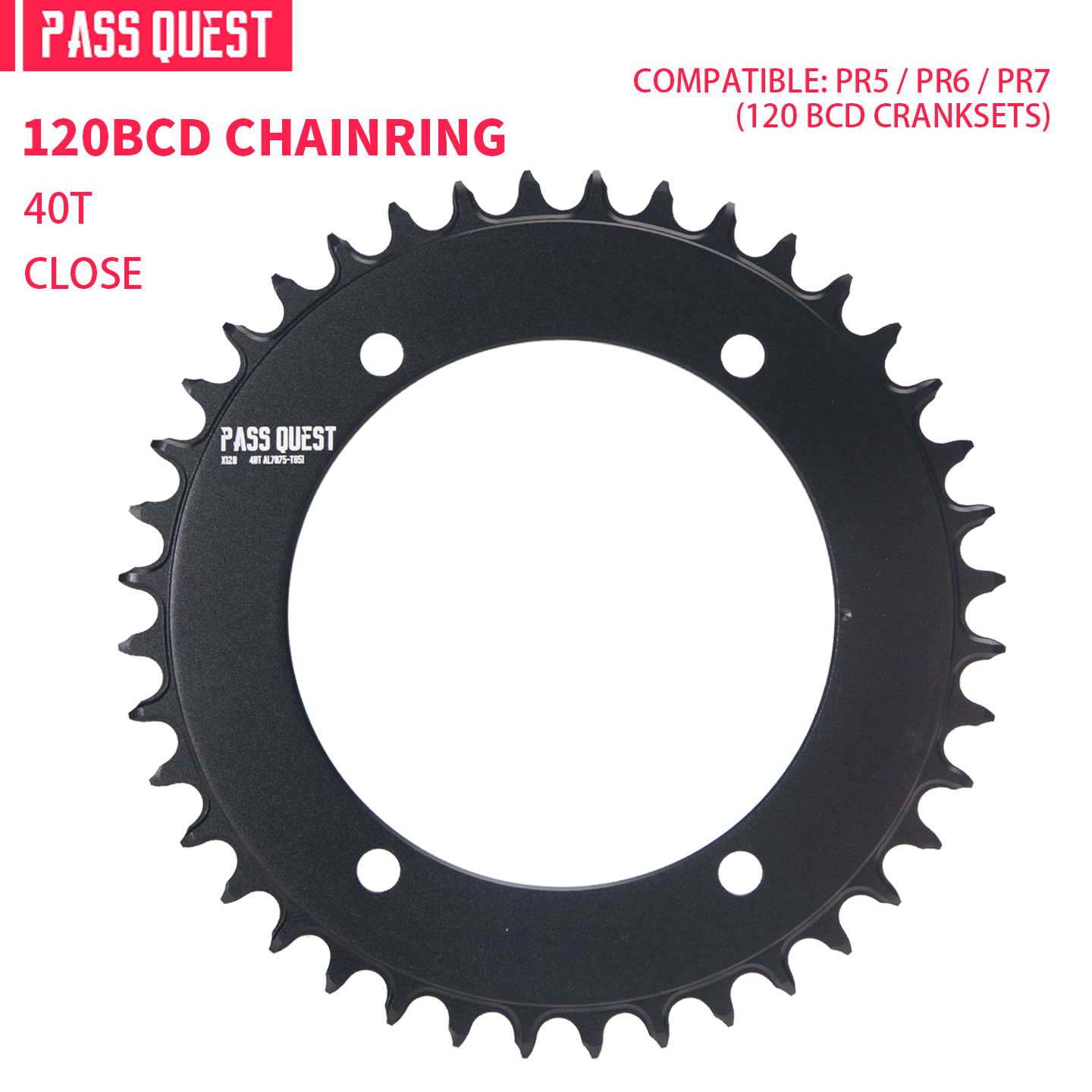

This chainring is a 120BCD single ring
Not 110BCD,not110BCD,not 110BCD.

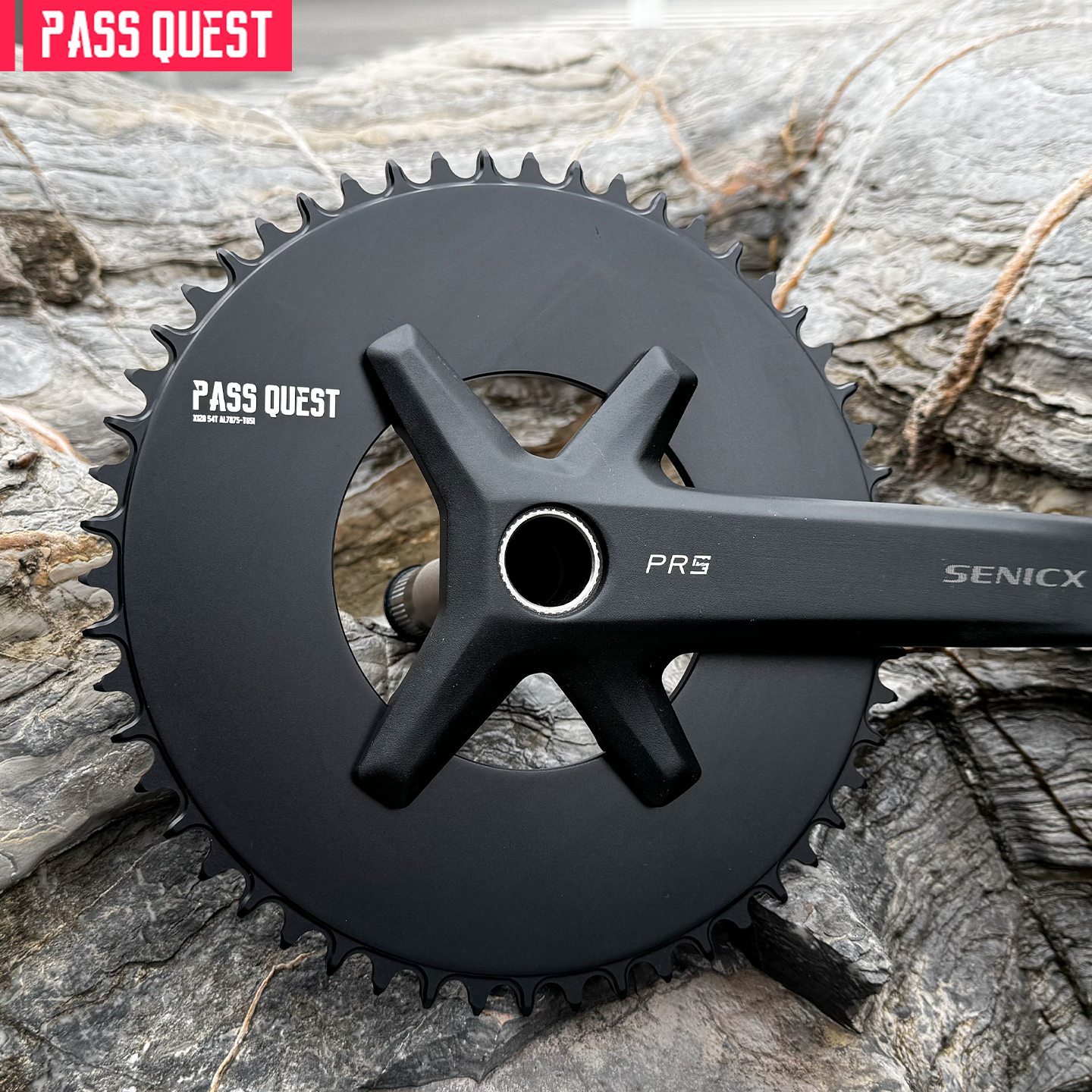

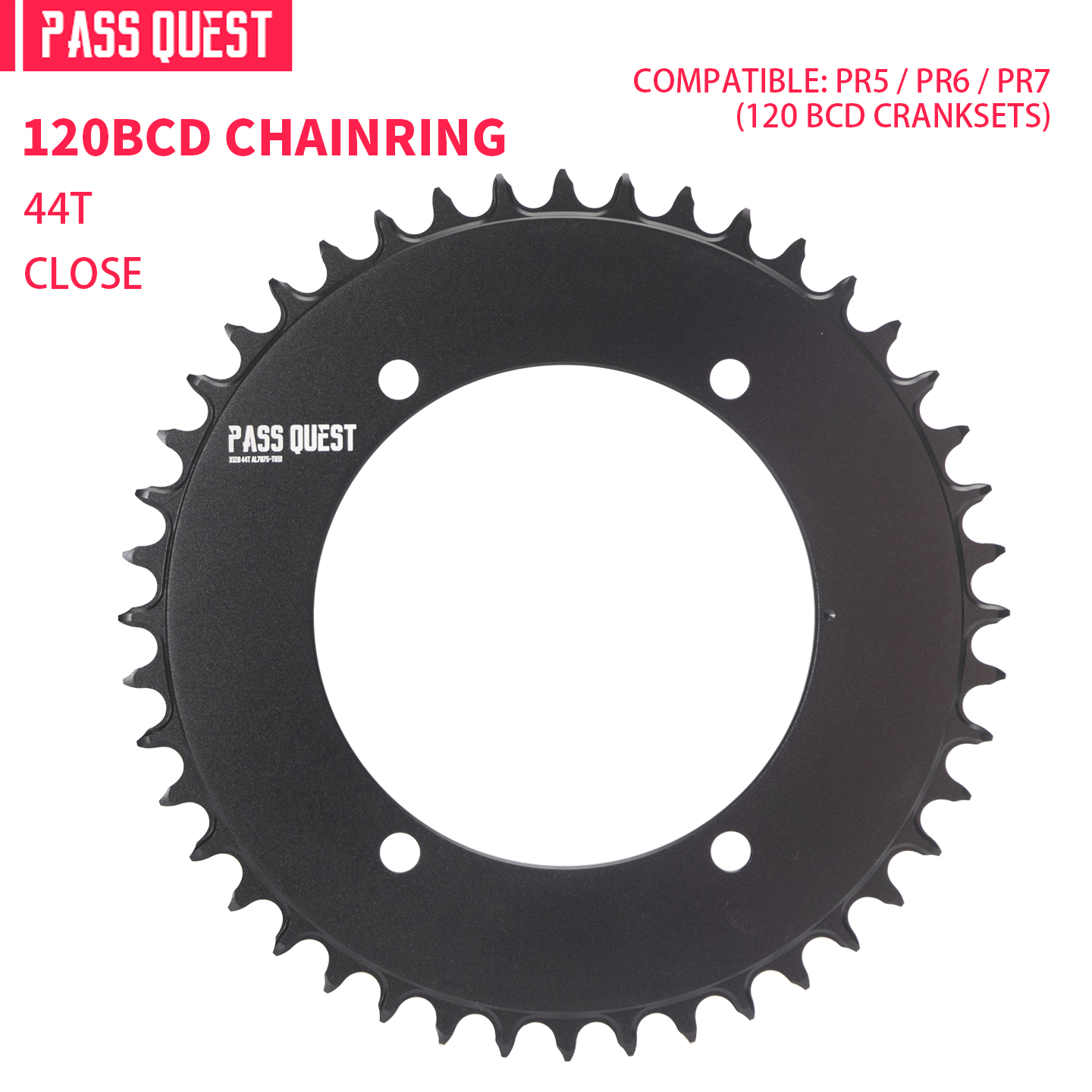

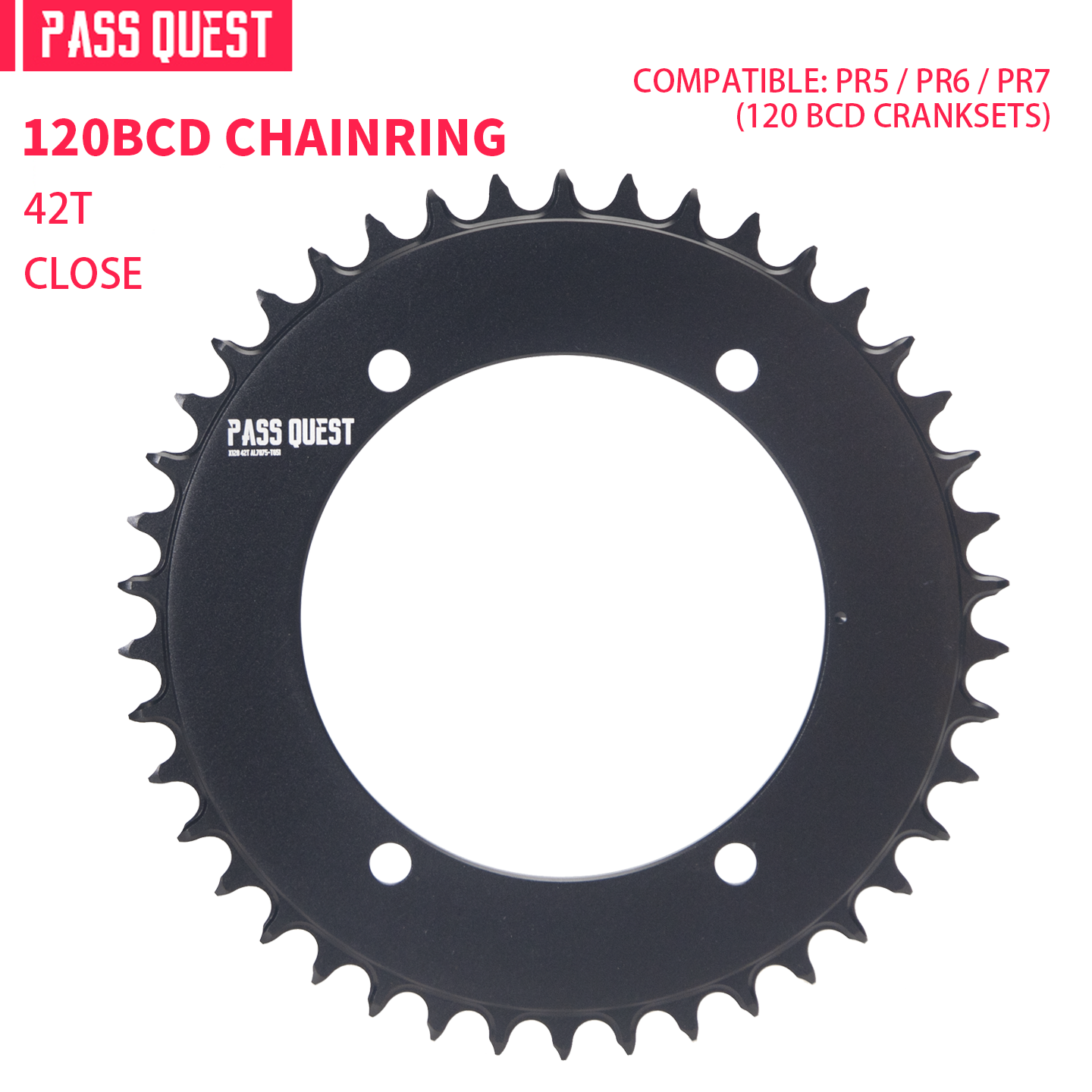

Compatible with PR5/6/7
And other asymmetrical 120BCD cranksets.
Not compatible with AXS 12-speed chains.

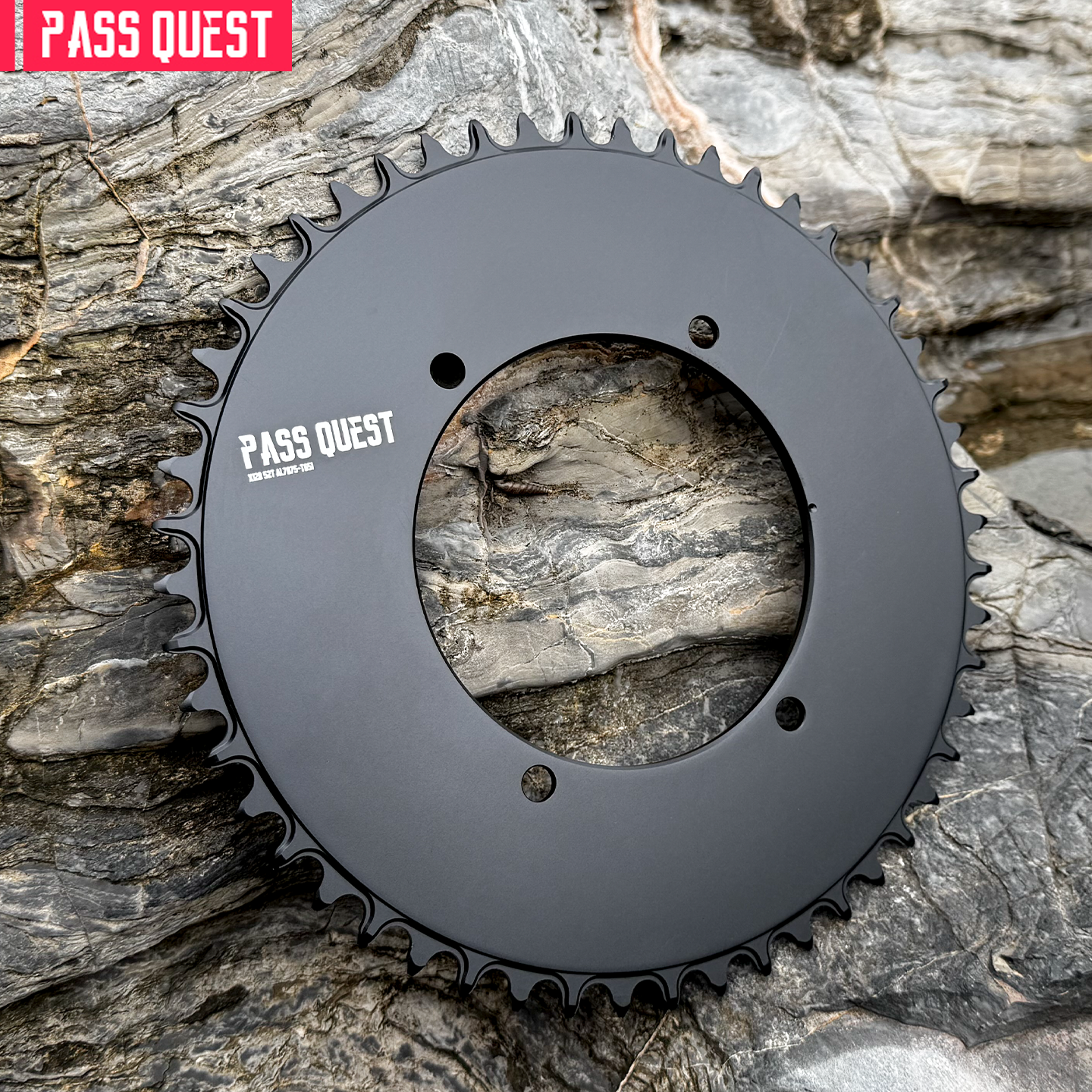

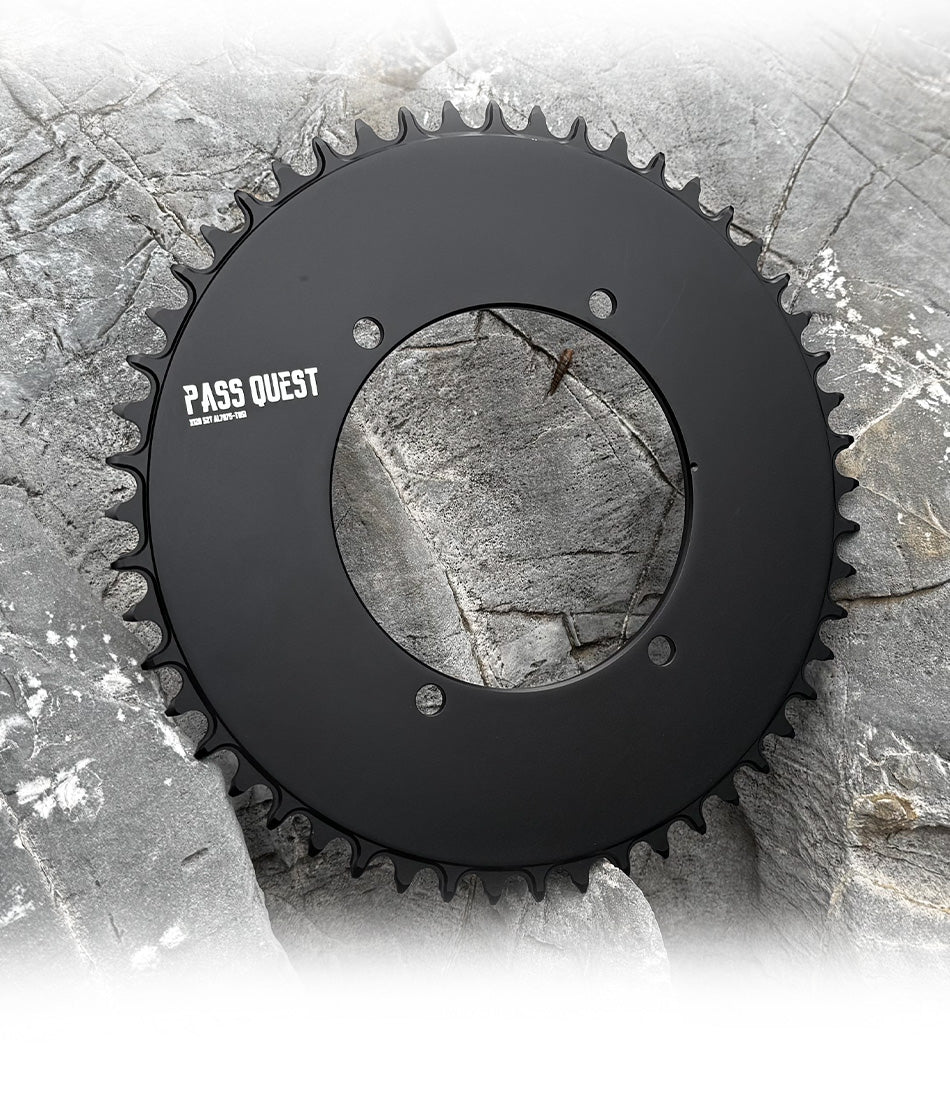

PASS QUEST NARROW WIDE CHAINRING

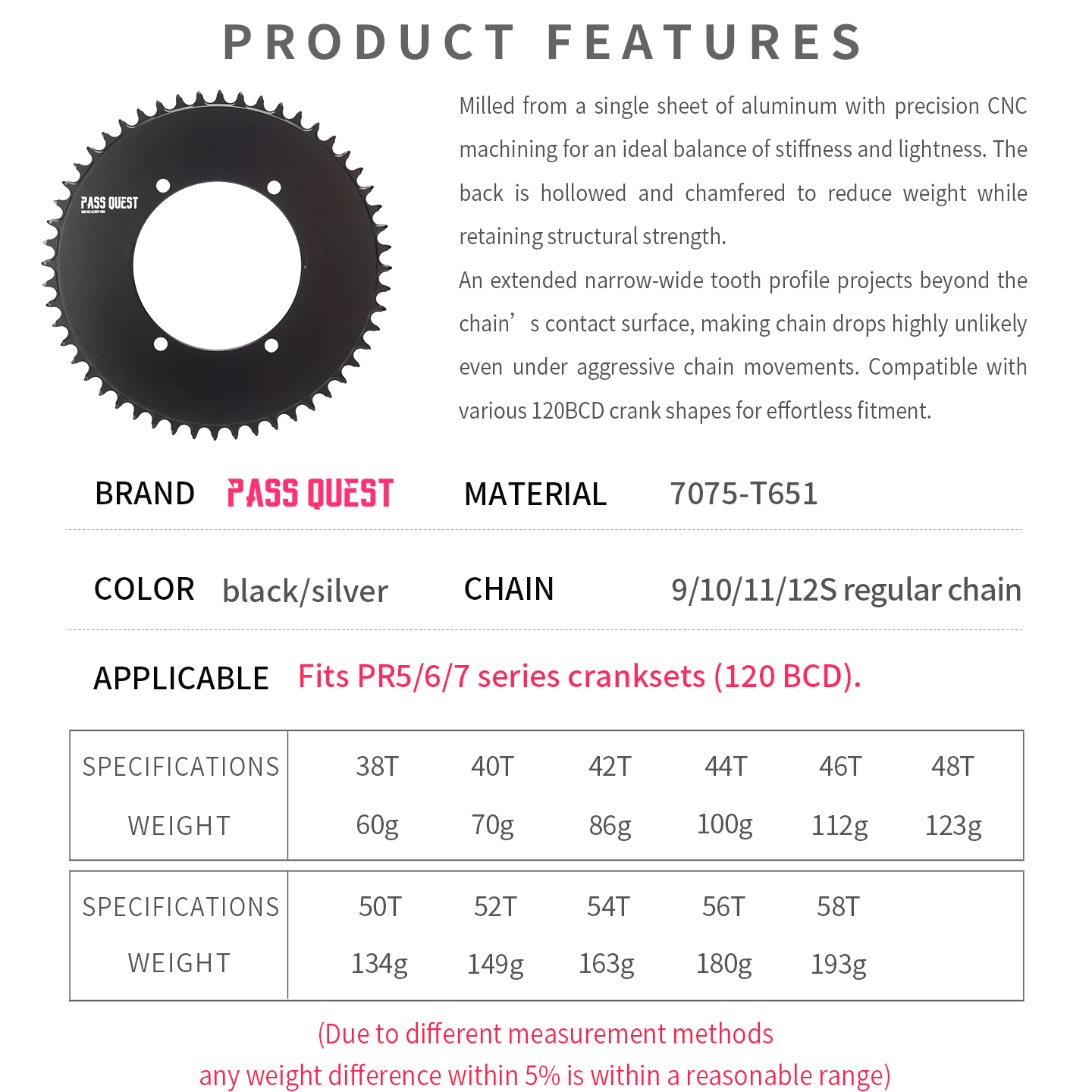

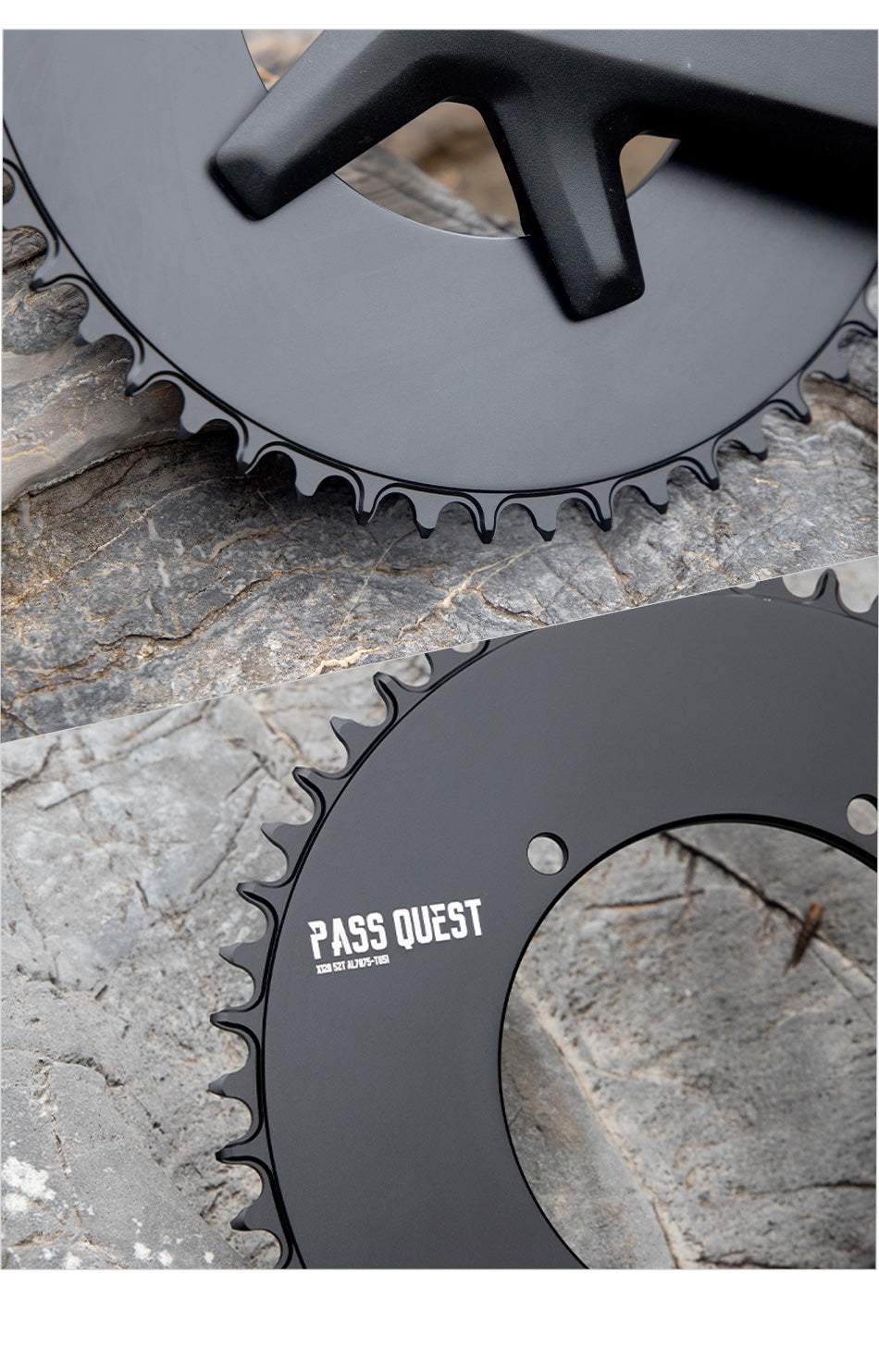

  • Milled from a single sheet of aluminum with precision CNC machining for an ideal balance of stiffness and lightness.The back is hollowed and chamfered to reduce weight while retaining structural strength.
    An extended narrow-wide tooth profile projects beyond the chain’s contact surface, making chain drops highly unlikely even under aggressive chain movements. Compatible with various 120BCD crank shapes for effortless fitment.
  • Our tooth height achieved 8.5 mm, Increased tooth height improves chain retention

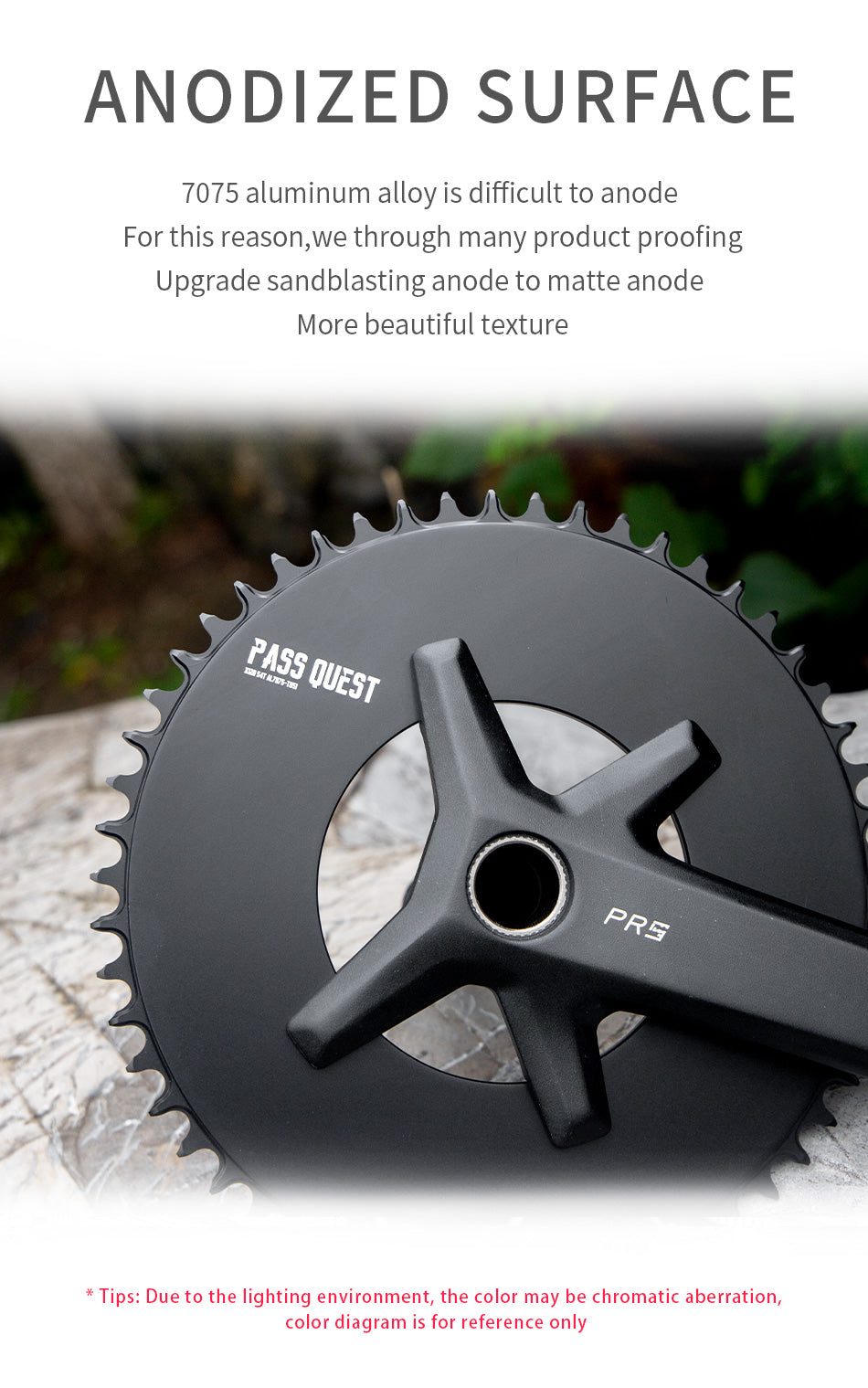

  • 7075 aluminum alloy is difficult to anode
    For this reason,we through many product proofing
    Upgrade sandblasting anode to matte anode
    More beautiful textur
  • Silky Power
    8.5mm Extended Teeth
    -Deeper tooth engagement for superior chain retention.
    Fewer Chain Drops
    -chain is farless likely to pop off underrough riding
    or high-torque shifts.
    Solid Pedal Feel
    -More secure engagement yields a firmer
    more responsive pedal stroke.
    Stronger Sprints
    -Direct powertransfer for decisive acceleration.

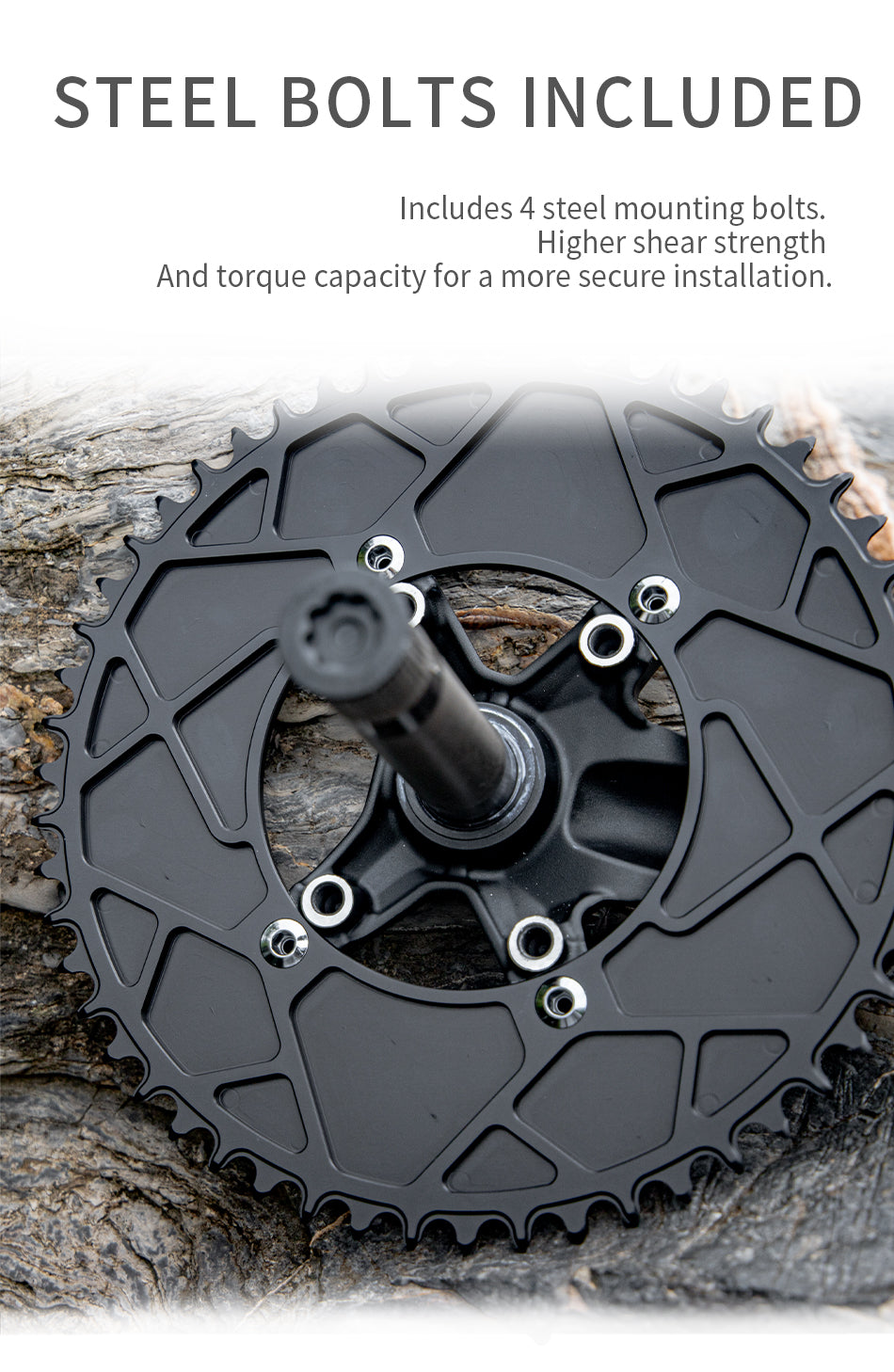

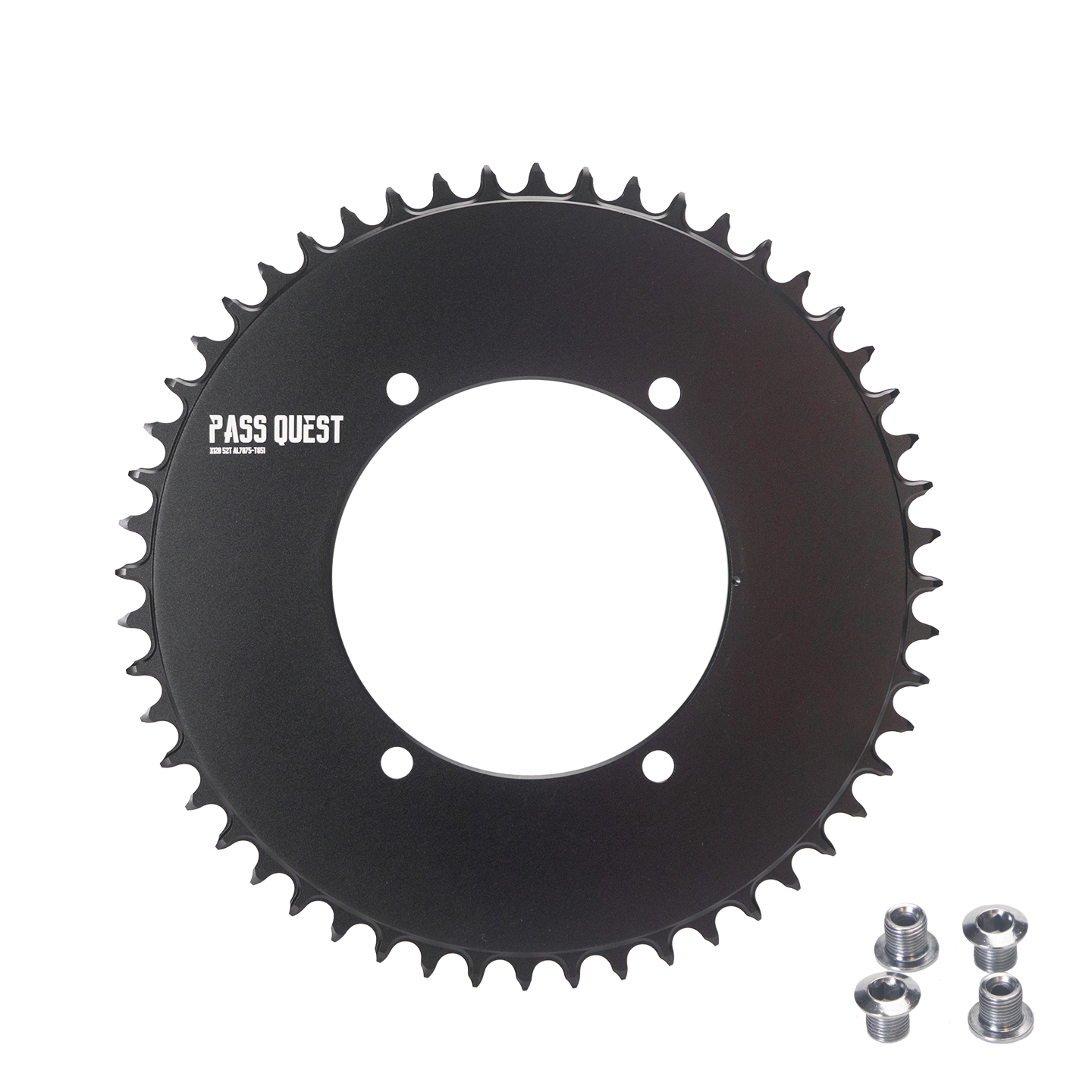

  • Includes 4 steel mounting bolts. Higher shear strength
    And torque capacity for a more secure installation.

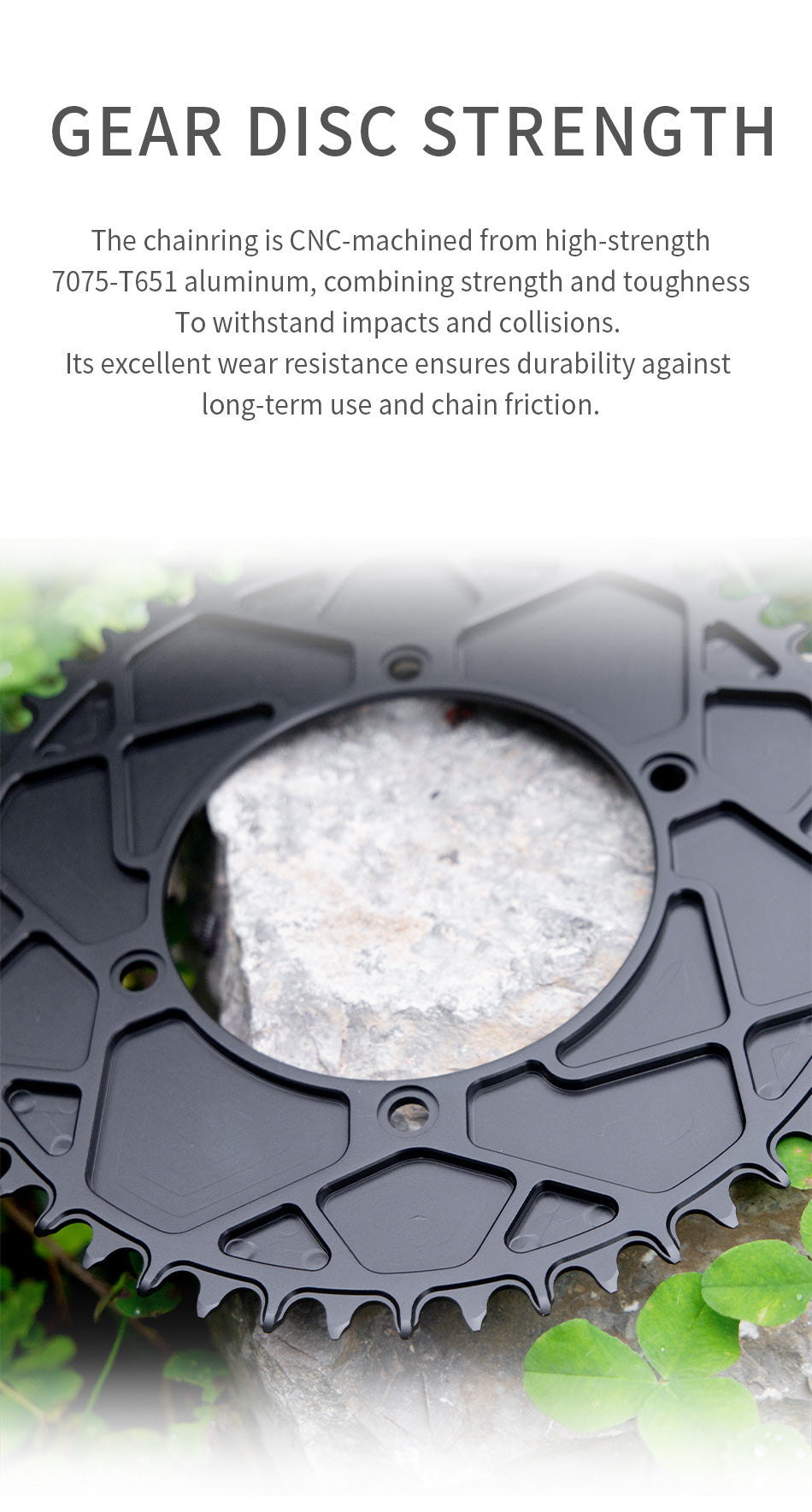

  • The chainring is CNC-machined from high-strength
    7075-T651 aluminum,combining strength and toughness
    To withstand impacts and collisions.
    Its excellent wear resistance ensures durability against
    long-term use and chain friction.
  • (BCD:THE CENTER HOLE OF THE DISC NAILFORMS THE DIAMETER OF THE CIRCLE)
  • Narrow wide tooth, it design for 1x speed only, can not use as 2x speed, not support front shifting derailleur.
  • When using a 12-speed chain, please replace the original SHIMANO fast sprocket with a KMC 12-speed fast sprocket.

View full details

Which size of an oval should I choose

We always recommend swapping like for like, so if you have a 32T round ring at the moment, you should consider getting a 32T oval. The same applies to our shiftable road ovals, we recommend that you purchase ovals with the same teeth count as your round rings.

How to calculate gear inches for an oval chainring

Exactly same way as for round chainring. You just need to use the nominal size in the calculation of an oval ring you have. That is, if you buy 32T oval you use for calculation 32T size. Reason for this is 32T oval chainring has same circumference as the 32T round. We optimize the shape but not circumference - it stays constant. Distance between each teeth always has to remain at 12.7mm to engage the chain properly. You can use any online calculator to get gear inches for an oval chainring.
